Innolux 50 Pin Connector LCD Display Panel 7 Inch TFT 800X480 At070tn94

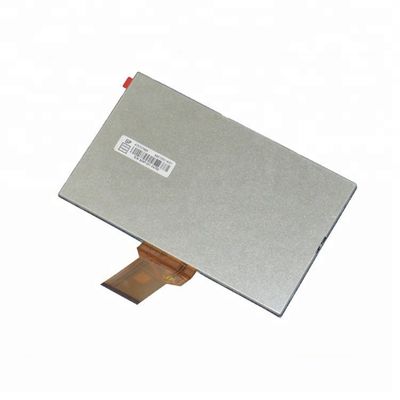

Large Image :  Innolux 50 Pin Connector LCD Display Panel 7 Inch TFT 800X480 At070tn94

Product Details:
Place of Origin: CHINA
Brand Name: INNOLUX
Certification: ISO9001
Model Number: AT070TN94
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: please contact us
Packaging Details: Standard Packaging
Delivery Time: 25~30days
Supply Ability: 2000pcs per month
Detailed Product Description
Product Name: Innolux AT070TN94 LCD Panel Model Number: AT070TN94
Resolution: 800X3(RGB)X480 Display Mode: Normally White, Transmissive
Panel Size(mm): 164.9 X 100.0 X 5.7 Surface Treatment: Antiglare
High Light:

137PPI TFT LCD Panel


7in TFT LCD Panel


800X480 Lcd Display Module

Innolux 50 Pin Connector LCD Display Panels 7 Inch TFT 800X480 At070tn94


Panel Name: AT070TN94
Touch Panel: Optional TP
Screen Size: 7" inch
Aspect Ratio: 16:9
Display Mode: Transmissive
Display Resolution: 800X3(RGB)X480
PPI ( Pixel per inch ): 137
Module/Panel Size(mm): 164.9 x 100.0 x 5.7
Active Area(mm): 154.08 x 85.92
Dot Pitch(mm): 0.0642(W) X 0.1790(H)
Surface Treatment: Anti-Glare
Viewing Angle (Tpy.)θT/θB/θL/θR: 50/70/70/70
Viewing direction: 6 O'Clock
NTSC: 50%
Luminance(nits): 400
Contrast Ratio: 500
Response Time(ms): 25
Consumption (W)- Panel: 0.226
Consumption (W)- Backlight: 1.674
Module Weight (g): 150.0
Interface: 50pin FPC,Parallel 24bit RGB
Operation Temperature( ºC): -30~85
Storage Temperature (ºC): -30~85
Lamp Type: White LED backlight Display




IT Products: Digital Video, Media Player, Advertising Machine.
Medical Equipment: Ultrasound Machine, Medial Monitor, Medical Imaging, Healthcare

Telecommunication Devices: Telephone, Interphone, Smart Watch, Tablet PC, PDA
Consumer Products: Camera, DVD Player, Cell Phone, Game Player, Digital Photo Frame, E-Book Reader, Mp3 Player, MP4 PMP, Netbook PC
Home Appliances: Air-condition Display, Refrigerator, Video Doorbell, Smart Machine
Automobile Display: GPS, Protable Navigation, Video Player,Speedometer, Recorder.
Technical Equipment: Elevator Controller, Industrial Machine, Security Monitor, POS
Office Automation: Printer, Scanner, Fax Machine, Desktop Monitor, Desktop Monitor




People-oriented, integrity management
100% Original Products

The competitive price and Perfect before/after sales service

Professional Technicist

12 months Warranty





1. ISO9001 certificated, Factory Direct Supplied.

2. Small MOQ Support & Fast Response to Customers.

3. Long Porduct Life Time.

4. Competitive Price and Short Lead-time.

5. Professional Team with Rich Experiences in Design / Mfg / Quality Control



Innolux 50 Pin Connector LCD Display Panel 7 Inch TFT 800X480 At070tn94 0
