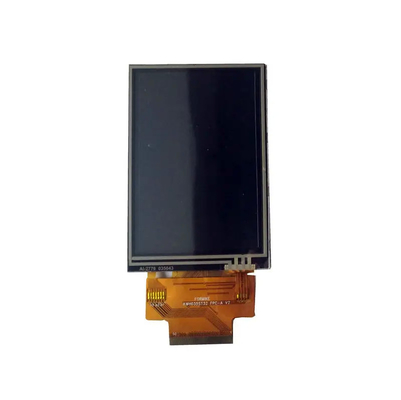

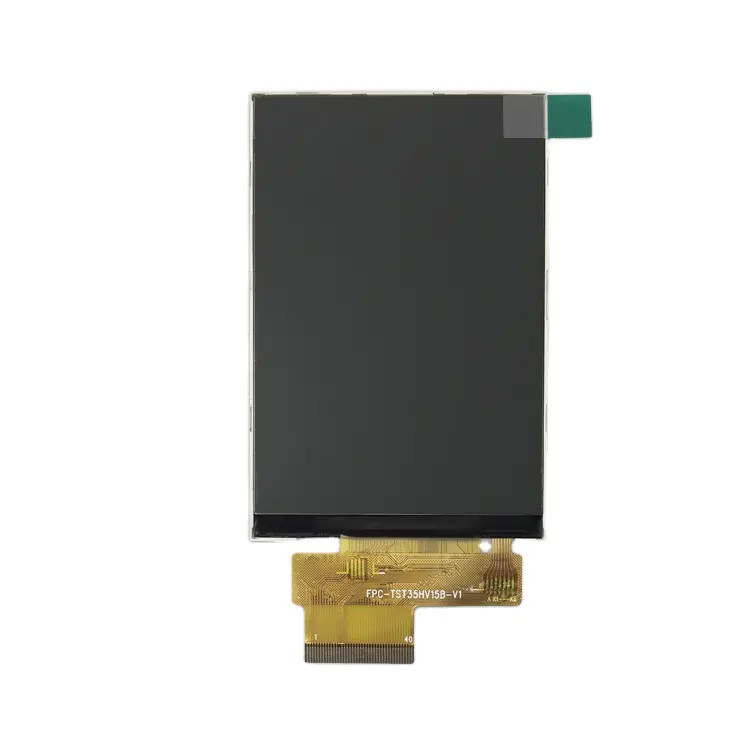

3.5 Inch 320x480 Touch Screen TFT Color Display With ILI9844 Driver IC

3.5 Inch 320x480 Touch Screen TFT Color Display With ILI9844 Driver IC
3.5 Inch 320x480 Touch Screen TFT Color Display With ILI9844 Driver IC

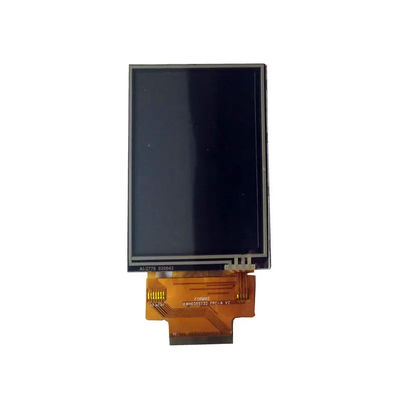

Large Image :  3.5 Inch 320x480 Touch Screen TFT Color Display With ILI9844 Driver IC

Product Details:
Place of Origin: China
Brand Name: Roya Display
Certification: Rohs, ISO9001
Model Number: RYTH0350RDW01
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 Work Days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 300K/M
Detailed Product Description
LCD Size: 3.5 '' Tft Resolution: 320x480
Color Depth: 65K/262K Viewing Angle: 12 O'clock
Interface: MCU 8/16-bit Driver IC: ILI9488
High Light:

Touch Screen TFT Color Display

,

ILI9488 IC TFT Color Display

,

ILI9488 IC Touch Screen Module

3.5 Inch 320x480 Touch Screen TFT Color Display With ILI9844 Driver IC



Hot Selling 3.5 Inch 320x480 TFT Colorful Display With ILI9844 IC LCD Module



Product Description

It is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC and backlight unit.

* Backlight with different brightness is customized according to your request.

* Capacitive & Resistive touch panel/ Demo board is available for your option.

* It's Standard and Ready-made TFT LCD Module.

* Experienced Team for Your Custom Solution.

* RoHS compliant.

Item  Desciption
LCD Type
Si TFT,Transmissive,Normally white,TN
LCD Size
3.5 inch
Resolution(W×H)
320×(RGB)×480
LCM(W×H×D)
54.5(W)×83.0(H)×3.6(D)
Active Area(W×H)
48.96(W)×73.44(H)
Dot Pitch(W×H)
0.153×0.153
Viewing Direction
12o'clock
Gray Scale Inversion Direction
6 o'clock
Viewing Angle
Top:45,Bottom:35;Left/Right;55
Color Depth
65K/262K
Pixel Arrangement
RGB-stripe
Backlight Type
6 LEDs
Surface Luminance
228 cd/m2
Surface Treatment
Anti-Glare
Driver IC
ILI9488
Interface Type
MCU 8/16-bit
Input Voltage
2.8V
With/Without TP
Resistive Touch Panel
Weight
28



Application



Our products can be widely used in consumer product, technical equipment, office automation, homeappliances, automation, home appliances, automobile, medical equipment and other fields.

3.5 Inch 320x480 Touch Screen TFT Color Display With ILI9844 Driver IC 0



Our Advantages

1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working.



2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3. Payment Terms: T/ T, Western Union, L/



C, PayPal

4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5. Service: Best after-sales service to ensure satisfaction from customers.

6. Warranty: Usually, product warranty for one year.

3.5 Inch 320x480 Touch Screen TFT Color Display With ILI9844 Driver IC 1

Packaging & Shipping & Delivery

Packaging Details:

All the products are packed in right way to keep it safe.

For small sizes of products we use tray + carton,

For bigger sizes we use foam slot + carton.

we also design packages according to customers' requirements

Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

For large quantity orders: we ship by buyer's cargo agent in China,

we can also ship by air or sea transportation by our cargo agent.

Delivery Details:

Ready-made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks

FAQ

Q: Can you customize the product? what do you need?

A: The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.



Q: Can you provide drawings and related procedures?

A: We can provide drawings and procedures for customers to confirm.


Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.



Q: How long is the warranty and service of the product?

A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
