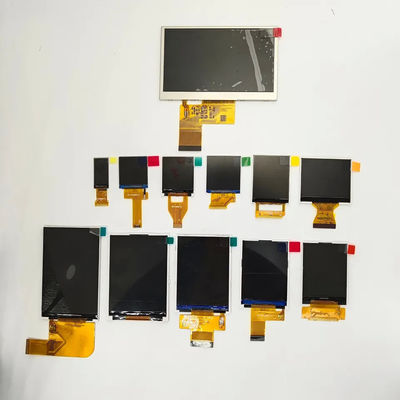

Transmissive Type Color RGB TFT LCD Module with ILI9488 Driver IC

Transmissive Type Color RGB TFT LCD Module with ILI9488 Driver IC
Transmissive Type Color RGB TFT LCD Module with ILI9488 Driver IC

Large Image :  Transmissive Type Color RGB TFT LCD Module with ILI9488 Driver IC

Product Details:
Place of Origin: China
Brand Name: Royal Display
Certification: Rohs, ISO9001
Model Number: RYT
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 300K/M
Detailed Product Description
LCD Type: TN/ IPS Resolution: 320x240, 480x320, 480x272, 800x480
Driver IC: ILI9488 Iterface Type: RGB, SPI/I2C, 8/16/24 Bit Parallel
Display Size: Standard, 0.96~10.1 Inch
High Light:

Transmissive Color TFT LCD Module

,

ILI9488 Driver TFT LCD Module

,

ILI9488 Driver RGB LCD Display

Transmissive Type Color RGB TFT LCD Module With ILI9488 Driver IC



RoHS Small 1.8 2.4 2.8 320x240 TFT IPS RGB SPI 3.2 3.5 4.3 7.0 Inch Tft LCD Display



Product Description

It is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC and backlight unit.

* Backlight with different brightness is customized according to your request.

* Capacitive & Resistive touch panel/ Demo board is available for your option.

* It's Standard and Ready-made TFT LCD Module.

* Experienced Team for Your Custom Solution.

* RoHS compliant.

1 Brand Royal Display
2 Product Name 0.96-7.0 Inch TFT LCD, TFT Display
3 Display Mode TN/ IPS
4 Panel Size 0.96", 1",1.06", 1.28", 1.3", 1.44", 1.54", 1.77", 1.8", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 5.0", 7.0", etc.
5 Dot Matrix 80x160, 96x128, 128x128, 128x160, 176x220, 240x240, 240x284, 240x320, 320x480, 379x960, 480x272, 480x800, 480x854, etc.
6 Viewing Direction 6 O'clcok, 12 O'clock, All Direction
7 Components TFT LCD, Driver IC, FPC, Backlight, Touch Panel(optional)
8 Backlight Type LEDs, Parallel
9 Interface Type RGB, 8/16/24-bit Parallel MCU, I2C, SPI
10 Drive IC ST/ ILI Series, compatible
11 Connector COG+FPC, customized
12
Luminance
180/ 200/ 250/ 300/ 500/ 1000 cd/m2, Optional
13 Operating Temperature -30~+80 ℃( max.)
14 Voltage 2.8~5.0V



Application



Our products can be widely used in consumer product, technical equipment, office automation, homeappliances, automation, home appliances, automobile, medical equipment and other fields.

Transmissive Type Color RGB TFT LCD Module with ILI9488 Driver IC 0



Our Advantages

1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working.



2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3. Payment Terms: T/ T, Western Union, L/



C, PayPal

4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5. Service: Best after-sales service to ensure satisfaction from customers.

6. Warranty: Usually, product warranty for one year.

Transmissive Type Color RGB TFT LCD Module with ILI9488 Driver IC 1

Packaging & Shipping & Delivery

Packaging Details:

All the products are packed in right way to keep it safe.

For small sizes of products we use tray + carton,

For bigger sizes we use foam slot + carton.

we also design packages according to customers' requirements

Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

For large quantity orders: we ship by buyer's cargo agent in China,

we can also ship by air or sea transportation by our cargo agent.

Delivery Details:

Ready- made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks

FAQ

Q: Can you customize the product? what do you need?

A: The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.



Q: Can you provide drawings and related procedures?

A: We can provide drawings and procedures for customers to confirm.


Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.



Q: How long is the warranty and service of the product?

A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
