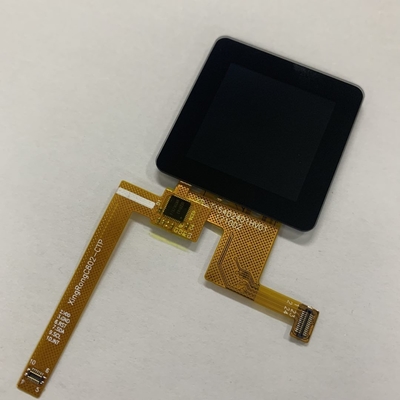

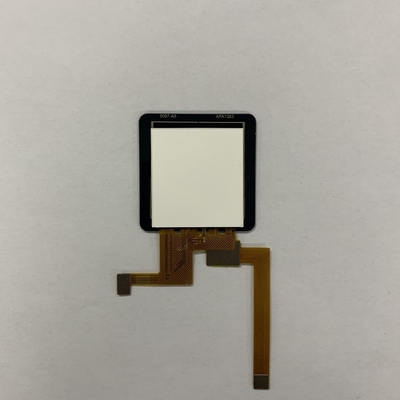

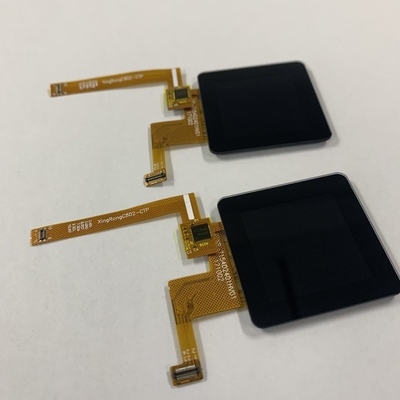

1.54 Inch 320x320 SPI RGB IPS TFT LCD Module Customize Square Shape
Product Details:
| Place of Origin: | China |
| Brand Name: | Roya Display |
| Certification: | ROHS, ISO9001 |
| Model Number: | RYT0154P005-D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 12-15 days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| Display Size: | 1.54 Inch | Resolution: | 320x320 Dots |
|---|---|---|---|
| Module Size: | 40.2(W)x40.5(H)X2.95(T) | Active Area (mm): | 27.74(W)*27.74(H) |
| Display Mode: | IPS/ Transmission/ Normally Black | Interface: | MIPI |
| Highlight: | RGB IPS TFT LCD Module,Square Shape TFT LCD Module,RGB TFT IPS LCD Display |
||
Product Description
1.54 Inch 320x320 SPI RGB IPS TFT LCD Module Customize Square Shape
1.54 Inch 320x320 SPI RGB IPS TFT LCD Display Module Customize Square 1.54 Inch LCD
Specification Of 1.54 Inch 320x320 Dots TFT
It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC and backlight unit.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* It's Standard and Ready-made TFT LCD Module.
* Experienced Team for Your Custom Solution.
* RoHS compliant.
| Item | Specification |
| LCD type | 1.54'' TFT |
| Dot arrangement | 320x320 |
| Color filter aray | RGB |
| Display Mode | IPS/ Transmission/ Normally Black |
| Eyes viewing direction | 80/80/80/80 |
| Driver IC | ST7796S |
| Module size | 40.2x40.5x2.95 |
| Active area | 27.74x27.74 |
| Interface | MIPI |
| Operating temperature | -20~ 70 ℃ |
| Storage temperature | -30~80 ℃ |
| Backlight | White LED |
Application
Our Advantages
1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Payment Terms: T/ T, Western Union, L/
C, PayPal
4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Service: Best after-sales service to ensure satisfaction from customers.
6. Warranty: Usually, product warranty for one year.
Packaging & Shipping & Delivery
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready- made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
FAQ
Q: Can you customize the product? what do you need?
A: The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
