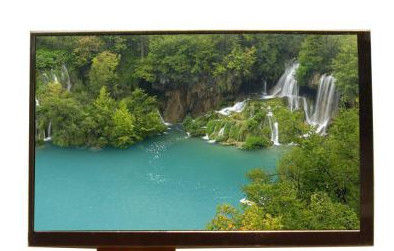

Professional 7 Tft Lcd Touch Screen , Tft Display Module 800X3(RGB)X480
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Certification: | RoHS |
| Model Number: | AT070TN83V.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 96pcs/carton |
| Delivery Time: | 15~18 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 300,000 Piece/Pieces per Year |
|
Detail Information |
|||
| Screen Size: | 7.0" | Resolution: | 800X3(RGB)X480 |
|---|---|---|---|
| Aspect Ratio: | 16:9 | Interface: | Embedded TTL T-con Board With LED Driver |
| Luminance(nits): | 250 | Contrast Ratio: | 500 |
| Highlight: | Tft Lcd Display Module,Hd Tft Display |
||
Product Description

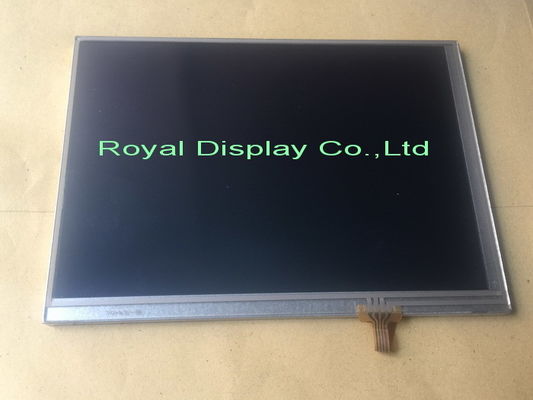

AT070TN83V.1 7.0 Inch 800X3(RGB)X480 TFT LCD Touch Screen Embedded TTL T-con Board with LED Driver
Application:
Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics
| Screen Size | 7.0" | |
| Module Size(mm) | 164.9 x 104.0 x 5.5 | |
| Active Area(mm) | 152.4 x 91.44 | |
| Display Mode | Transmissive | |
| Resolution | 800X3(RGB)X480 | |
| Viewing Angle (Tpy.)θT/θB/θL/θR | 50/70/70/70 | |
| Viewing direction | 6 O'Clock | |
| NTSC | 50% | |
| Aspect Ratio | 16:9 | |
| Luminance(nits) | 250 | |
| Contrast Ratio | 500 | |
| Response Time(ms) | 25 | |
| Dot Pitch(mm) | 0.0635(W) X 0.1905(H) | |
| PPI ( Pixel per inch ) | 133 | |
| Power Consumption (W) | 2.219 | |
| Weight (g) | 170 | |
| Interface | Analog(26 Pin FPC) | |
| Operation Temperature( ℃) | -30~85 | |
| Storage Temperature (℃) | -30~85 | |
| HTHH.(op) | 60℃,90% RH | |

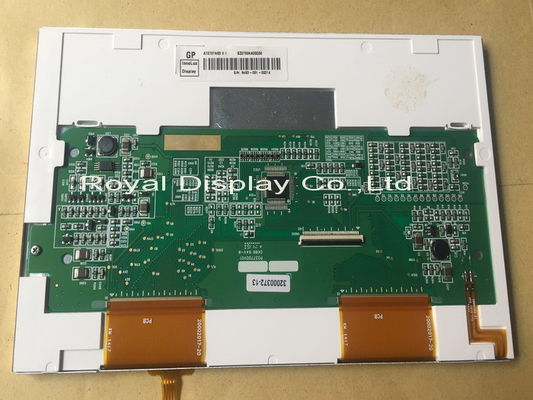

| Remark | 40PIN TTL T-con Board with LED Driver | |
