500 Contrast Ratio Digital TFT LCD Module 8.0 Inch 192.8 X 116.9 X 6.4mm

500 Contrast Ratio Digital TFT LCD Module 8.0 Inch 192.8 X 116.9 X 6.4mm
500 Contrast Ratio Digital TFT LCD Module 8.0 Inch 192.8 X 116.9 X 6.4mm 500 Contrast Ratio Digital TFT LCD Module 8.0 Inch 192.8 X 116.9 X 6.4mm 500 Contrast Ratio Digital TFT LCD Module 8.0 Inch 192.8 X 116.9 X 6.4mm

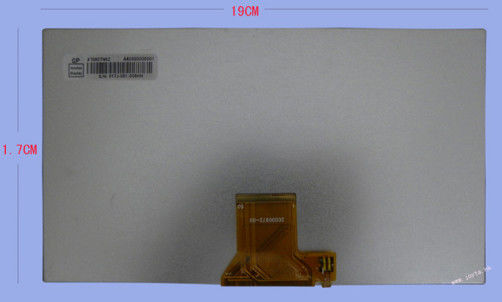

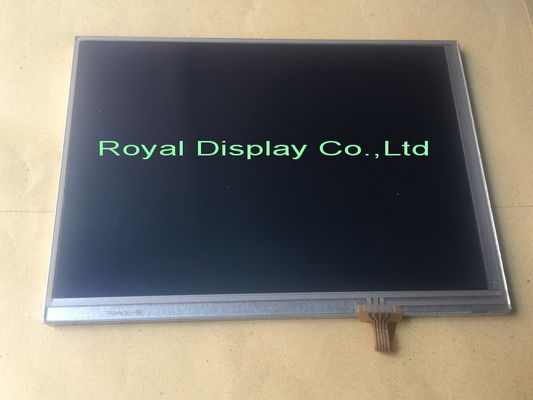

Large Image :  500 Contrast Ratio Digital TFT LCD Module 8.0 Inch 192.8 X 116.9 X 6.4mm

Product Details:
Place of Origin: China
Brand Name: Innolux
Certification: RoHS
Model Number: AT080TN64
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 96pcs/carton
Delivery Time: 15~18 working days
Payment Terms: Western Union, T/T
Supply Ability: 300,000 Piece/Pieces per Year
Contact Now
Detailed Product Description
Screen Size: 8.0" Resolution: 800 X 3(RGB) X 480
Aspect Ratio: 16:9 Interface: 50pin FPC, Parallel 24bit RGB
Luminance(nits): 450 Contrast Ratio: 500
Highlight:

Tft Lcd Display Module

,

Lcd Tft Screen



AT080TN64 8.0 Inch 800 X 3(RGB) X 480 TFT LCD Touch Screen With 50pin FPC, Parallel 24bit RGB





Application:

Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics





Screen Size 8.0"
Module Size(mm) 192.8 x 116.9 x 6.4
Active Area(mm) 176.64 x 99.36
Display Mode Transmissive
Resolution 800 X 3(RGB) X 480
Viewing Angle (Tpy.)θT/θB/θL/θR 50/70/70/70
Viewing direction 6 O'Clock
NTSC 50%
Aspect Ratio 16:9
Luminance(nits) 450
Contrast Ratio 500
Response Time(ms) 25
Dot Pitch(mm) 0.0736(W)X0.2070(H)
PPI ( Pixel per inch ) 119
Power Consumption (W) 2.458
Weight (g) 251
Interface 50pin FPC,
Parallel 24bit RGB
Operation Temperature( ℃) '-30~85
Storage Temperature (℃)  '-30~85
HTHH.(op) 60℃,90% RH
Remark /





500 Contrast Ratio Digital TFT LCD Module 8.0 Inch 192.8 X 116.9 X 6.4mm 0

500 Contrast Ratio Digital TFT LCD Module 8.0 Inch 192.8 X 116.9 X 6.4mm 1

Tag:

Tft Lcd Display Module,

Hd Tft Display,

Lcd Tft Screen
