2.0inch 320*240 IPS TFT LCD Module with High Resolution and Wide Viewing Angle for Portable Electronics
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | 5.5 |
|
Detail Information |
|||
| Model NO.: | RYT020QV35 | Display Type: | TFT-LCD /IPS |
|---|---|---|---|
| Display Size: | 2 Inch | Resolution: | 320*240 |
| Interface: | SPI | Viewing Angle: | IPS |
| Outline Dimensions: | 46.10*40.0*2.53 Mm | Active Area: | 40.80*30.62 Mm |
| Driver IC: | ST7701S | Operating Temperature: | -20ºC ~ +70ºC |
| Storage Temperature: | -30ºC ~ +80ºC | Brightness: | 280-330CD/M2 |
| Touch Panel: | Without | Display Technology: | TFT |
| LCD Drive Mode: | Color Display | ||
| Highlight: | 2.0inch TFT LCD Module,320*240 TFT LCD Display,IPS TFT LCD Screen |
||
Product Description

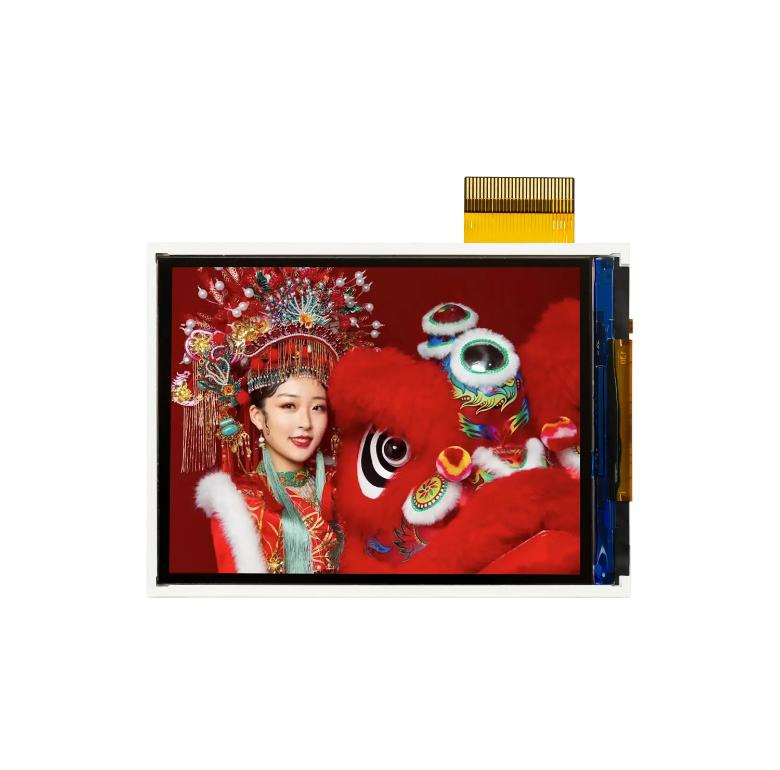

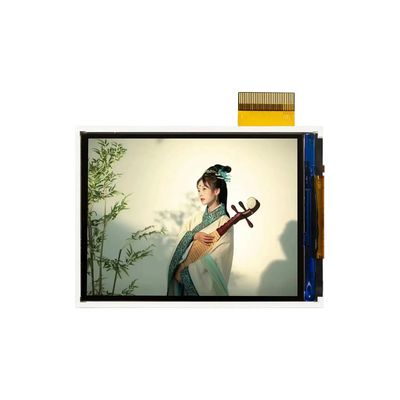

2.0inch 320*240 IPS TFT LCD with SPI Interface
Product Specifications
| Model NO. | RYT020QV35 |
|---|---|
| Size | 2 inch |
| Resolution | 320*RGB*240 |
| Interface | SPI |
| LCD Type | TFT-LCD /IPS |
| Viewing Direction | IPS |

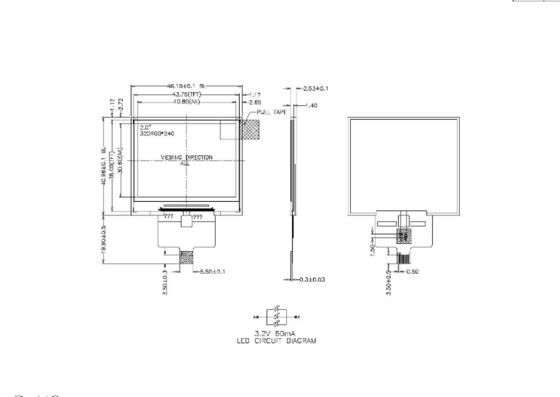

| Outline Dimension | 46.10*40.0*2.53 |
| Active Size | 40.80*30.62 |
| Specification | ROHS REACH ISO |
| Operating Temp | -20ºC ~ +70ºC |
| Storage Temp | -30ºC ~ +80ºC |
| IC Driver | ST7701S |
| Brightness | 280-330CD/M2 |
| Touch Panel | Without |
| Application | Portable electronics; Automotive displays; Industrial equipment; Medical devices; Home automation systems; Consumer electronics |
| Country of Origin | China |
Applications
The 2.0-inch TFT screen is a display screen suitable for handheld devices and small electronic products.
- Ideal for wearable devices such as wristbands and watches due to moderate size and high-resolution display
- Mobile medical equipment including blood pressure monitors and blood glucose meters
- Mobile game consoles requiring high resolution and smooth operation
- Industrial instruments requiring miniaturized designs
Product Advantages
- High resolution for clear and vivid images
- Energy efficient LCD technology for extended battery life
- Bright colors with high saturation for vivid images
- Wide viewing angle for shared viewing
- Fast response speed for dynamic images and video
Company Profile
Royal Display Co.Ltd specializes in the design, development and production of LCD display modules for more than 10 years.
Our product range includes standard and custom-made solutions including Segment LCD, Character LCD, Graphic LCD, COG LCD, TFT color displays, OLED displays, and 7 segment LED displays.
Frequently Asked Questions
Q1: How do we place an order?
A1: Please send us an email specifying the item No., replacements, quantity, and other specifications.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: Normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
