2.0inch 480*360 IPS TFT LCD Module with Mipi Interface for High Resolution Display
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | 5.5 |
|
Detail Information |
|||
| Display Size: | 2 Inch | Display Resolution: | 480RGB(H)X360(V) |
|---|---|---|---|
| Interface Type: | Mipi | LCD Type: | TFT-LCD /IPS |
| Viewing Angle: | All | Outline Dimensions: | 46.10*40.0*2.53 Mm |
| Active Area: | 40.80*30.62 Mm | Driver IC: | St7701s |
| Operating Temperature: | -20c~70c | Storage Temperature: | -30c~80c |
| Brightness: | 280-330CD/M2 | Display Technology: | TFT |
| Touch Panel: | Without | Drive Mode: | Color Display |
| Production Capacity: | 300K/Month | ||
| Highlight: | 2.0inch TFT LCD Module,480*360 TFT LCD Display,IPS TFT LCD Module |
||
Product Description

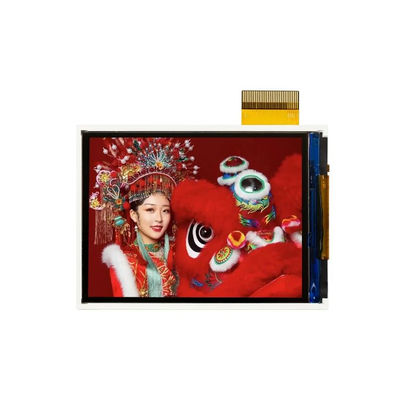

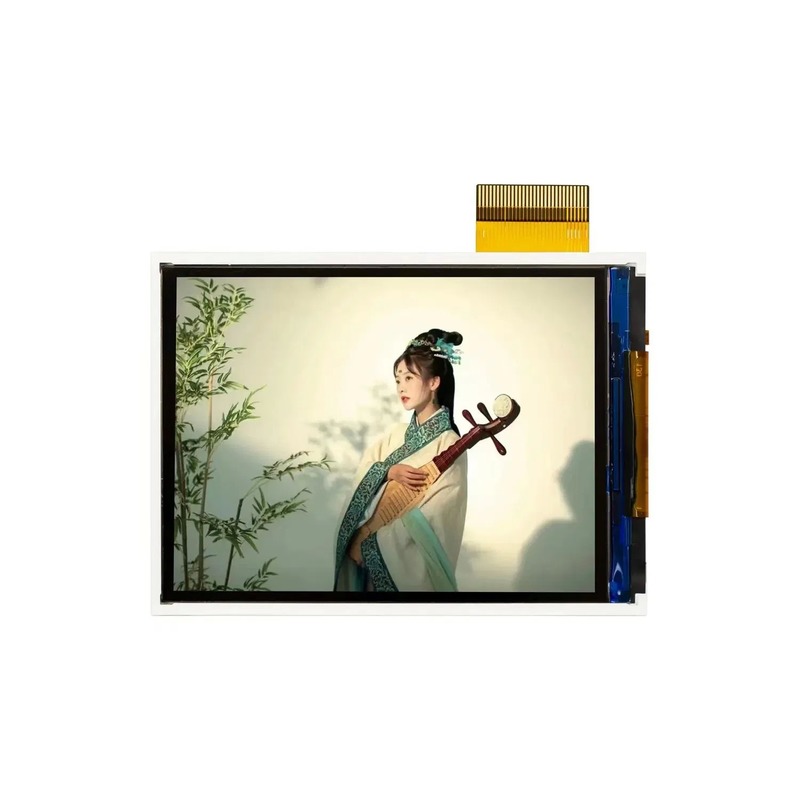

2.0inch 480×360 IPS TFT LCD with Mipi Interface
Product Description
| Model NO. | RYT-2.0 |
|---|---|
| Size | 2 inch |
| Resolution | 480×RGB×360 |
| Interface | MIPI |
| LCD Type | TFT-LCD /IPS |
| Viewing Direction | IPS |

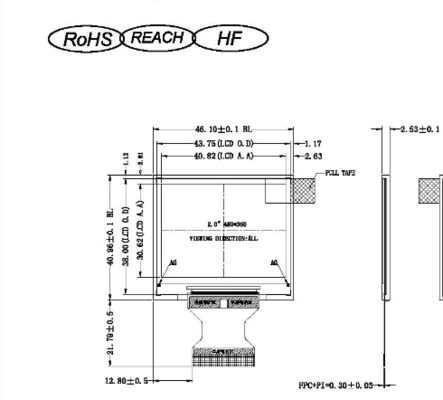

| Outline Dimension | 46.10×40.0×2.53 |
| Active Size | 40.80×30.62 |
| Specification | ROHS REACH ISO |
| Operating Temp | -20ºC ~ +70ºC |
| Storage Temp | -30ºC ~ +80ºC |
| IC Driver | ST7701S |
| Brightness | 280-330CD/M2 |
| Touch Panel | Without |
| Application | Portable electronics; Automotive displays; Industrial equipment; Medical devices; Home automation systems; Consumer electronics |
| Country of Origin | China |
Applications
The 2.0-inch TFT screen is a display screen suitable for handheld devices and small electronic products.
- Ideal for wearable devices such as wristbands and watches due to moderate size and high-resolution display
- Mobile medical equipment including blood pressure monitors and blood glucose meters
- Mobile game consoles requiring high resolution and smooth operation
- Industrial instruments needing miniaturized design with small-sized TFT display
Product Advantages
- High resolution and contrast for clear, vivid images
- Energy efficient LCD technology extends battery life
- High color saturation for bright, true-to-life images
- Wide viewing angle improves user experience and shared viewing
- Fast response speed supports dynamic images and video streaming
Company Profile
Royal Display Co.Ltd specializes in the design, development and production of LCD display module solutions for over 10 years.

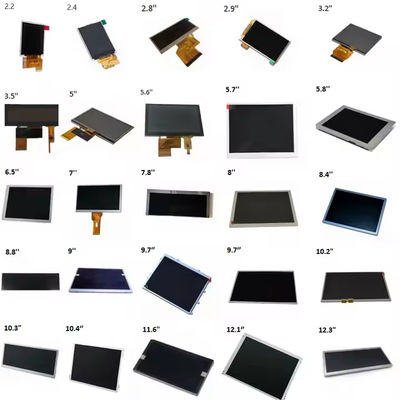

Our product range includes standard and custom-made solutions including Segment LCD, Character LCD, Graphic LCD, COG LCD, TFT color display, OLED display, and 7 segment LED display. We support various film types (TN, HTN, STN, FSTN, TFT) and processes (COG, TAB, COB, SMT) with a production capacity of 300K different kinds of LCM/LCD per month.
