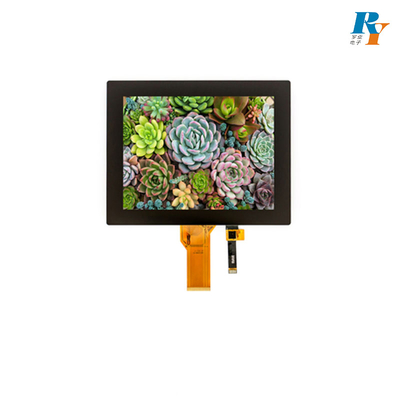

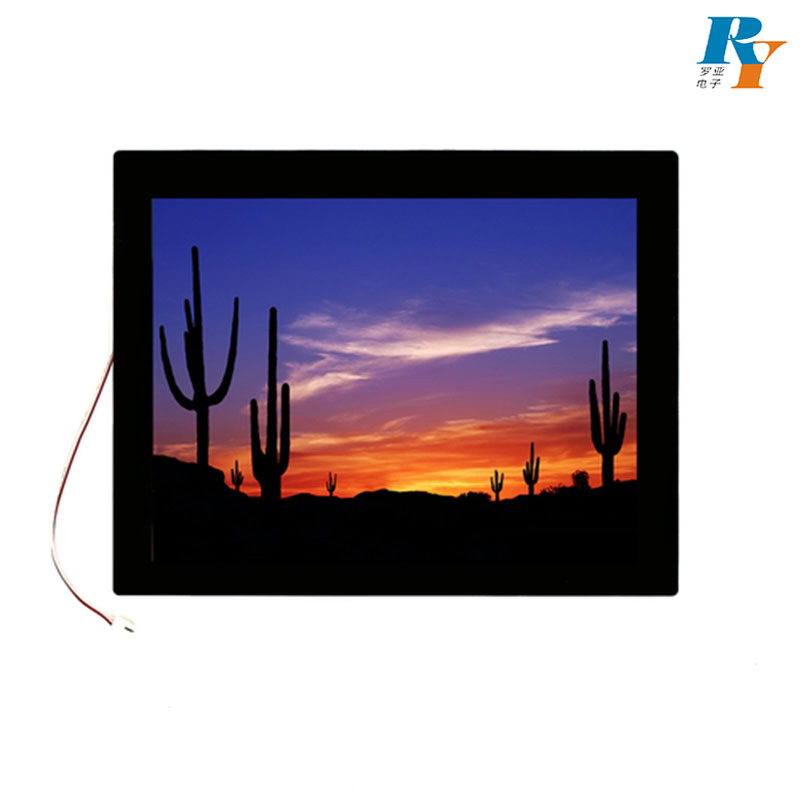

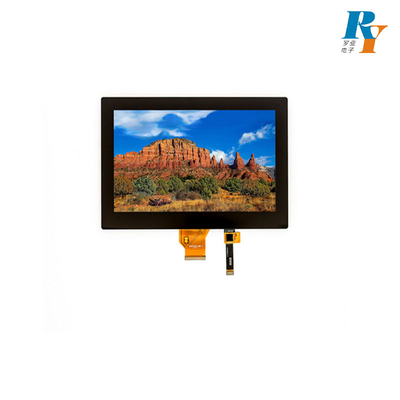

3.5 Inch TFT LCD Display 480x320 Resolution 50pin RGB Interface
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | 12 |
|
Detail Information |
|||
| Model NO.: | RY007 | Aspect Ratio: | 4:3 |
|---|---|---|---|
| Optimum Resolution: | 320*240 | Type: | TFT |
| Response Time: | 25ms | Interface Type: | RGB |
| Resolution: | 480X3(RGB)X320 | Module Size: | 126.5 X 100.0 X 5.7 Mm |
| Active Area: | 112.896 X 84.672 Mm | Viewing Angle: | 50/70/70/70 |
| Interface: | 50pin FPC, Parallel 24bit RGB | Screen Size: | 3.5 Inch |
| Luminance: | 200 Nits | Contrast Ratio: | 500 |
| Weight: | 127.5 G | Operation Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C | ||
| Highlight: | 3.5 inch TFT LCD display,480x320 resolution LCD module,50pin RGB interface TFT |
||
Product Description
3.5 Inch TFT LCD Raspberry Display 480X320 Touch Screen LCD Display
Product Specifications
| Attribute | Value |
|---|---|
| Model NO. | RY007 |
| Aspect ratio | 4:3 |
| Feature | LED Backlight Display |
| Optimum Resolution | 320*240 |
| Type | TFT |
| Widescreen | Not Widescreen |
| Response Time | 25ms |
| 3D | Not 3D |
| Interface Type | RGB |
| Product Type | Module |
| Resolution | 480X3(RGB)X320 |
| Module Size(mm) | 126.5 X 100.0 X 5.7 |
| Active Area(mm) | 112.896 X 84.672 |
| Viewing Angle | 50/70/70/70 |
| Interface | 50pin FPC, Parallel 24bit RGB |
| Transport Package | Plastic Plate |
| Specification | 3.5 Inch |
| Trademark | Innolux |
| Origin | China |
| HS Code | 9013803010 |
| Production Capacity | 300K/M |
Product Details
3.5 inch TFT LCD Raspberry Display 480x320 Touch Screen LCD Display
Innolux's employees worldwide number more than 60,000, with production sites and sales locations spanning the globe. Major TFT plants are located in Zhunan and Tainan, Taiwan, with overseas module plants in Ningbo, Nanjing, Foshan, and Shanghai, China.
Technical Specifications
| Item | Description |
|---|---|
| Model Name | AT056TN52 V.3 |
| Product type | LCD Module |
| Screen Size | 3.5" |
| Aspect Ratio | 4:3 |
| Resolution | 480X3(RGB)X320 |
| Module Size(mm) | 126.5 x 100.0 x 5.7 |
| Active Area(mm) | 112.896 x 84.672 |
| Viewing Angle (Tpy.)θT/θB/θL/θR | 50/70/70/70 |
| Luminance(nits) | 200 |
| Contrast Ratio | 500 |
| Response Time(ms) | 25 |
| Weight (g) | 127.5 |
| Interface | 50pin FPC,Parallel 24bit RGB |
| Operation Temperature( ºC) | -20º C~70ºC |
| Storage Temperature (ºC) | -30º C~80ºC |
| HTHH.(op) | 40ºC 90%RH 240h |
Innolux Application Coverage
Innolux Application By Feature
Innolux Product Line By Aspect Ratio
About Royal Display
Royal Display Co., Ltd has specialized in LCD business for over 10 years, offering LCD Displays, LCD Screens, LCD Modules, Character LCDs, LED backlight displays, TFT displays, Graphic LCDs, and 7 segment LED Displays.
Over 90% of our products are custom-designed for use in Video/Audio systems, financial, medical, and industrial equipment, testing devices, electronic meters, facsimiles, and various terminal equipment. Our monthly production capacity reaches 300K different kinds of LCM/LCD.
Our products meet international quality standards including CE, FCC & RoHS certifications. We offer high quality products at competitive prices and look forward to establishing long-term business relationships.
Our Advantages
- Quality Control: Every LCD tested with special instruments before delivery
- Packing: Anti-static bags with foam box for safe transportation
- Payment Terms: T/T, Western Union
- Shipping Methods: UPS, EMS, DHL, TNT, or by air
- Service: Comprehensive after-sales service
- Delivery: 2-4 days via DHL, UPS, TNT, EMS, or By Air
- Warranty: 1-year product warranty
- Samples: Available for quality testing
