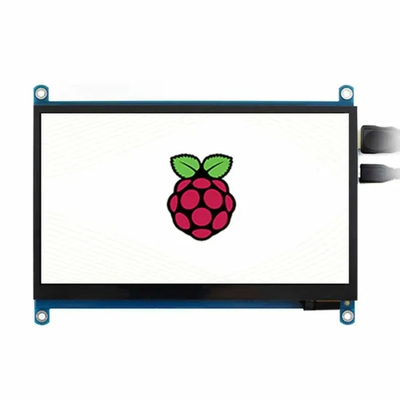

7 Inch Raspberry Pi TFT LCD Module 1024x600 IPS Display
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | 28.9 |
|
Detail Information |
|||
| Model NO.: | R070WSV002 | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Optimum Resolution: | 1024*600 | Type: | TFT |
| Response Time: | 25ms | Interface Type: | RGB |
| Resolution: | 800X3(RGB)X480 | Module Size: | 164X100 Mm |
| Active Area: | 154X86 Mm | Viewing Area: | 155X87 Mm |
| Viewing Angle: | IPS | Interface: | 40pin FPC, Parallel 24bit RGB |
| Screen Size: | 7 Inch | Luminance: | 200 Nits |
| Contrast Ratio: | 500 | ||
| Highlight: | 7 inch Raspberry Pi LCD module,IPS display TFT LCD module,1024x600 resolution LCD module |
||
Product Description
Raspberry Pi 7 Inch 1024X600 Pixels HDMI Touch Display
Product Specifications
| Attribute | Value |
|---|---|
| Model NO. | R070WSV002 |
| Aspect ratio | 16:9 |
| Feature | LED Backlight Display |
| Optimum Resolution | 1024*600 |
| Type | TFT |
| Widescreen | Not Widescreen |
| Response Time | 25ms |
| 3D | Not 3D |
| Interface Type | RGB |
| Product Type | Module |
| Resolution | 800X3(RGB)X480 |
| Module Size(mm) | 164X100 |
| Active Area(mm) | 154X86 |
| Viewing Area(mm) | 155X87 |
| Viewing Angle | IPS |
| Interface | 40pin FPC, Parallel 24bit RGB |
| Transport Package | Plastic Plate |
| Specification | 7 Inch |
| Origin | China |
| HS Code | 9013803010 |
| Production Capacity | 300K/M |
Technical Details
| Model Name | R070WSV002 |
| Product type | LCD Module |
| Screen Size | 7" |
| Aspect Ratio | 16:9 |
| Resolution | 800X3(RGB)X480 |
| Module Size(mm) | 164x100 |
| Active Area(mm) | 154x86 |
| Viewing Angle (Tpy.)θT/θB/θL/θR | 50/70/70/70 |
| Luminance(nits) | 200 |
| Contrast Ratio | 500 |
| Response Time(ms) | 25 |
| Weight (g) | 127.5 |
| Interface | 50pin FPC,Parallel 24bit RGB |
| Operation Temperature( ºC) | -20º C~70ºC |
| Storage Temperature (ºC) | -30º C~80ºC |
| HTHH.(op) | 40ºC 90%RH 240h |
About Royal Display Co., Ltd
Royal Display Co., Ltd has specialized in LCD business for over 10 years, offering products including LCD Displays, LCD Screens, LCD Modules, Character LCDs, LED backlight displays, TFT displays, Graphic LCDs, and 7 segment LED Displays.
Over 90% of our products are custom-designed for use in video/audio systems, financial, medical, and industrial equipment, testing devices, electronic meters, facsimiles, and various terminal equipment. Our production capacity reaches 300K different kinds of LCM/LCD per month.
Our products meet international quality standards including CE, FCC & RoHS certifications. We offer high quality products at competitive prices and look forward to establishing long-term business relationships.
Our Advantages
- Quality Control: Every LCD tested with special instruments before delivery
- Packing: Anti-static bags with foam box for safe transportation
- Payment Terms: T/T, Western Union
- Shipping Methods: UPS, EMS, DHL, TNT, or by air
- Service: Comprehensive after-sales service
- Delivery: 2-4 days via DHL, UPS, TNT, EMS, or air
- Warranty: 1-year product warranty
- Samples: Available for quality testing (sample and freight costs apply)
