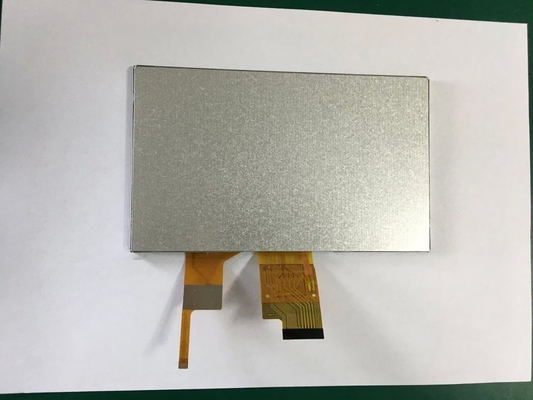

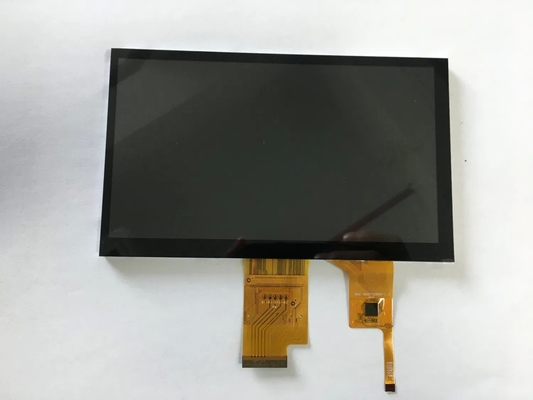

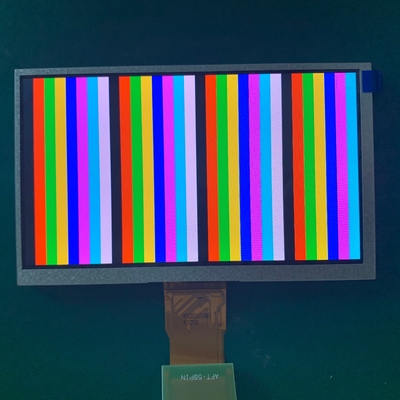

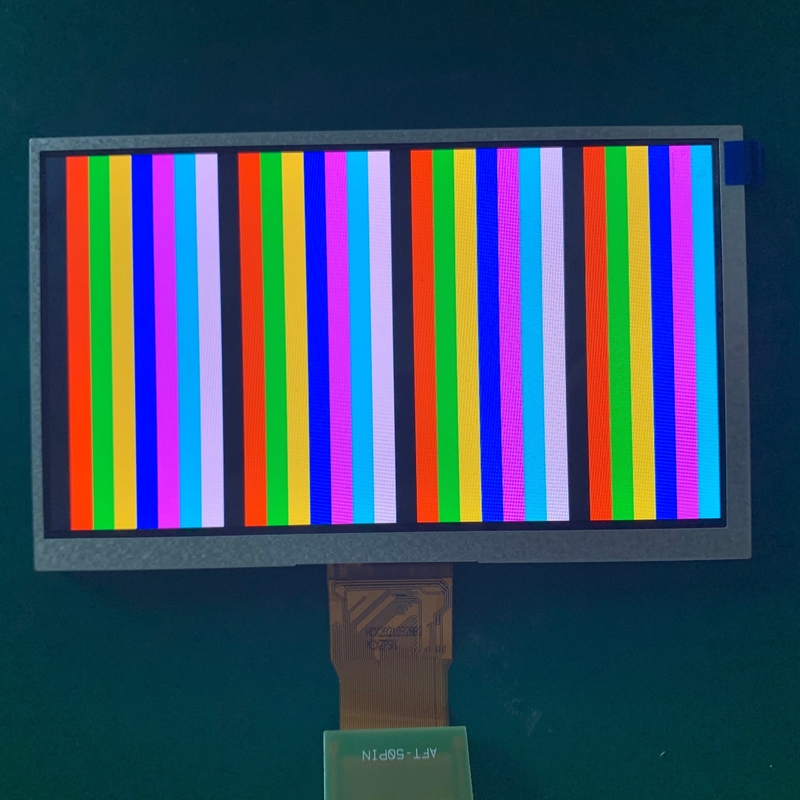

7 Inch TFT LCD Module 1024x600 RGB with 8-Wire CTP
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | 18.99 |
|
Detail Information |
|||
| Model NO.: | RYTW70NP03-16-2 | Aspect Ratio: | 4:3 |
|---|---|---|---|
| Optimum Resolution: | 320*240 | Type: | TFT |
| Response Time: | 25ms | Interface Type: | RGB |
| Resolution: | 1024X3(RGB)X600 | Active Area: | 153.6(H)X90(V)mm |
| Outline Dimension: | 164.9(W)X100(H)X5.7(D) | Pixel Arrangement: | RGB-Veritical Stripe |
| Touch Panel: | 8-Wire CTP | Drive IC: | Gt911 |
| Specification: | 7 Inch | Backlight Type: | LED |
| Polarizer Type: | Transmissive | ||
| Highlight: | 7 inch TFT LCD module 1024x600,TFT LCD module with RGB interface,8-wire capacitive touch LCD module |
||
Product Description
Normally White Transmissive 7 Inch TFT LCD RGB 1024X600 Resolution with Tp
Product Specifications
| Attribute | Value |
|---|---|
| Model NO. | RYTW70NP03-16-2 |
| Aspect ratio | 4:3 |
| Feature | LED Backlight Display |
| Optimum Resolution | 320*240 |
| Type | TFT |
| Widescreen | Not Widescreen |
| Response Time | 25ms |
| 3D | Not 3D |
| Interface Type | RGB |
| Product Type | TFT LCD |
| Resolution | 1024X3(RGB)X600 |
| Active Area(mm) | 153.6(H)X90(V)mm |
| Outline Dimension(mm) | 164.9(W)X100(H)X5.7(D) |
| Pixel Arrangement | RGB-Veritical Stripe |
| Tp | 8-Wire CTP |
| Drive IC | Gt911 |
| Transport Package | Plastic Plate |
| Specification | 7 Inch |
| Trademark | Innolux |
| Origin | China |
| HS Code | 9013803010 |
| Production Capacity | 300K/M |
Product Description
7 Inch TFT Display | RYTW70NP03-16-2
Module size: 164.9(W)x100(H)x5.7(D)
Driver: GT911
- LVDS interface
- White LED backlight
- IPS technology
- Wide temperature range
- Transmissive display
- Capacitive Touch Screen
- HDMI connection
- CTP Driver: GT911
- RoHS Compliant
The capacitive touch panel is activated with anything containing an inductive load such as a finger or stylus. It allows for multi-touch options. When using the capacitive touch screen, the display needs a separate controller to interface with the touch panel. The display for capacitive touch is brighter since the touch panel is transparent.
The transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. If you have a need for a bright backlight with lower power drain, transmissive is a good choice for this TFT LCD display.
Accessories
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
Warranty
Royal Display offers the original purchaser who has purchased a product from the lcdmoduletft a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
