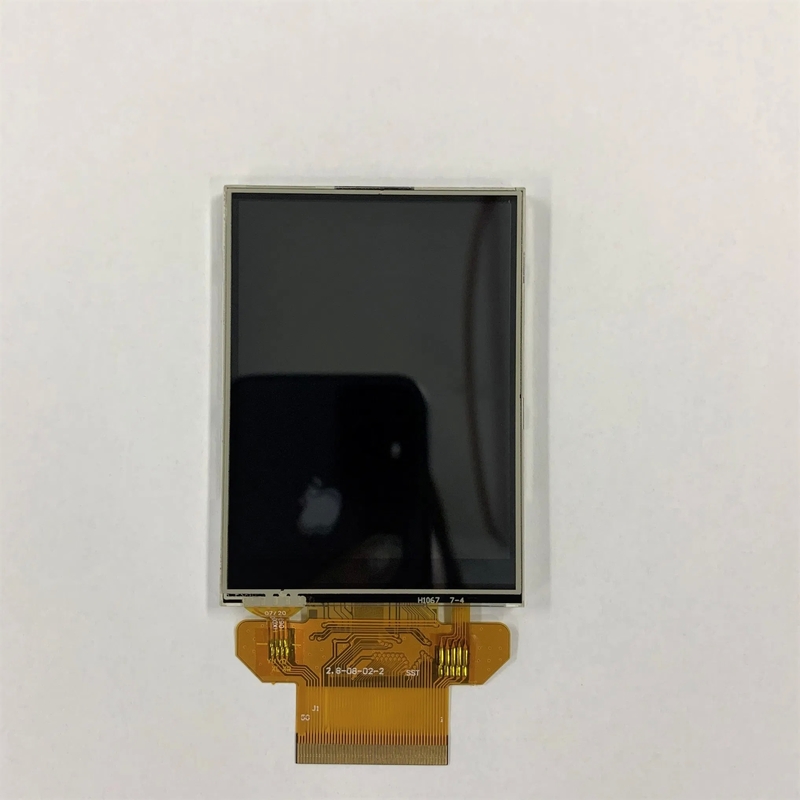

2.8 Inch TFT LCD Module 320x240 Resolution RGB Interface
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | 6.78 |
|
Detail Information |
|||
| Model NO.: | RYTPQ28NN08-02 | Aspect Ratio: | 4:3 |
|---|---|---|---|
| Optimum Resolution: | 320*240 | Response Time: | 25ms |
| Interface Type: | RGB | Resolution: | 320X3(RGB)X240 |
| Module Size: | 50.2(W)X69.3(H)X4.9(D) | Active Area: | 43.2(H) X57.6(V) |
| Outline Dimension: | 50.2(W) X 69.3(H) X 4.0(D) | Pixel Arrangement: | RGB-Vertical Stripe |
| Touch Panel: | 8-Wire CTP | Drive IC: | Ili9341V |
| Display Size: | 2.8 Inch | Backlight Type: | LED |
| Production Capacity: | 300K/M | ||
| Highlight: | 2.8 inch TFT LCD module with RGB interface,320x240 resolution TFT LCD display,small TFT LCD module with warranty |
||
Product Description
| Attribute | Value |
|---|---|
| Model NO. | RYTPQ28NN08-02 |
| Aspect ratio | 4:3 |
| Feature | LED Backlight Display |
| Optimum Resolution | 320*240 |
| Type | TFT |
| Widescreen | Not Widescreen |
| Response Time | 25ms |
| 3D | Not 3D |
| Interface Type | RGB |
| Product Type | TFT LCD |
| Resolution | 320X3(RGB)X240 |
| Module Size | 50.2(W)X69.3(H)X4.9(D) |
| Active Area(mm) | 43.2(H) X57.6 (V) |
| Outline Dimension(mm) | 50.2(W) X 69.3 (H) X 4.0 (D) |
| Pixel Arrangement | RGB-Veritical Stripe |
| Tp | 8-Wire CTP |
| Drive IC | Ili9341V |
| Transport Package | Plastic Plate |
| Specification | 2.8 Inch |
| Trademark | Royal Display |
| Origin | China |
| HS Code | 9013803010 |
| Production Capacity | 300K/M |
2.8 Inch TFT Display | RYTPQ28NN08-02
Module size: 50.2(W)x69.3(H)x4.9(D)
Driver: ILI9341V
LVDS, White LED backlight, IPS, Wide temp, Transmissive, Capacitive Touch Screen, HDMI connection, CTP Driver: ILI9341V RoHS Compliant
- IPS or 12 o'clock display screen
- Customized: Logo, Touch Button, Silk-Printing, Mirror Cover Lens, Shape/Hole
- Anti-Glare/Anti-Finger/Anti-Reflective/Waterproof/Gloves Touch Available
- Supply TFT/Touch Panel/touch display module(TFT+CTP)
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
Royal Display offers the original purchaser who has purchased a product from the lcdmoduletft a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
