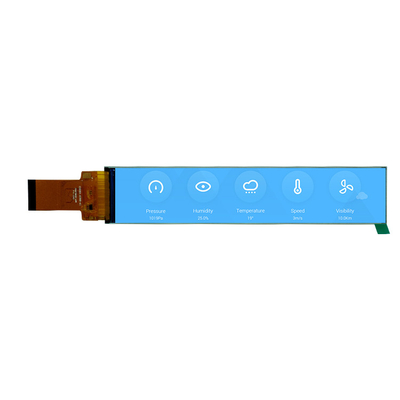

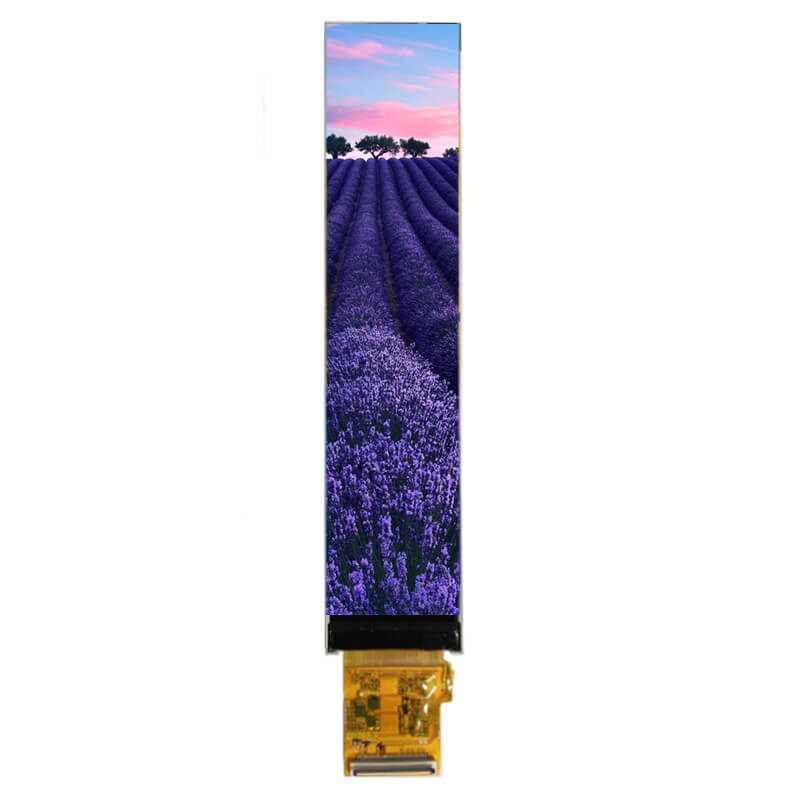

7'' 280*RGB*1424 TFT bar LCD Module with CTP LCD Module
Bar-type TFT LCD Module
Common bar-type TFT sizes: 4.3'', 5.5'', 7.8'', 12.3'', 28.6'', 38.1'' etc.
Common aspect ratios: 16:3, 8:3, 21:9, etc.
Brightness options: Normally 500-1500 nits, optional.
Wide viewing angle: IPS panels view angle can be 80+ degree in all directions.
LED lifetime: Normally could be 30,000hrs, but if you need more durable display. we could make it to50,000hrs.
Interface: RGB, LVDS, HDMI, MIPI, SPI or MCU interface.
Customizable: logo printing, touch panel integration (capacitive or resistive), anti-glare coating.
Operation temperature range: -20 to +70 degree C normally, but also can be -30 to +85 degree C. If you need -40 to +85 degree C, we suggest OLED Module.
| Item of general information |
Contents |
| LCD Type |
7 inch(Diagonal) |
| Recommended Viewing Direction |
80/80/80/80 |
| Display Resolution |
280 RGB x 1424 |
| Outline Dimension |
43.3*201.0*5.76 mm |
| Display Mode |
Normally black/Transmissive |
| Pixel arrangement |
RGB Vertical stripe |
| Certificate |
CE, RoHS, SGS |
| Driver IC |
OTA7290N-C (for LCD) + GT911 (for touch) or equivalent |
| Connector |
FPC |
| Operating Temp |
-20º C~+70ºC |
| Storage Temp |
-30º C~+80ºC |
Product Applications
| Application |
Description |
| Industrial Equipment |
Control panels, machine status monitors, instrumentation displays |
| Automotive Displays |
Dashboard auxiliary screens, HVAC displays, rear-seat entertainment |
| POS (Point of Sale) Terminals |
Customer-facing information displays, cashier terminals |
| Medical Devices |
Portable monitors, lab equipment, diagnostic instruments |
| Smart Home Appliances |
Premium coffee machines, ovens, air purifiers, smart refrigerators |
| Transportation Systems |
Ticket vending machines, bus/train stop information displays |
| Audio Equipment |
Equalizer and status display for professional audio or DJ equipment |
Packaging & Shipping
Packaging : All the products are packed in right way to keep it safe.
Small sizes products: tray + carton
Big sizes: slot + carton.
We can design packages to meet customers' requirements.
Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service.
For large quantity orders: we ship by buyer's cargo agent in China.
We can ship by air or sea transportation by our cargo agent.
Delivery Time: Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
FAQ
1. Can you provide some samples?
-Yes, we can offer samples for you and you just pay some delivery fee.
2. How can I get samples?
- Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect
3. How can I place an order?
- If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We will talk about more detailed information of your order. Any question, pls do not hestiate to contact us.
4. Can you design the lcd in acccordance with our demand?
-Sure, we have professional team to provide ODM&OEM service and any requirements, pls do not hestiate to tell me.
5. What is your payment method?
- We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shipping as order amount.
