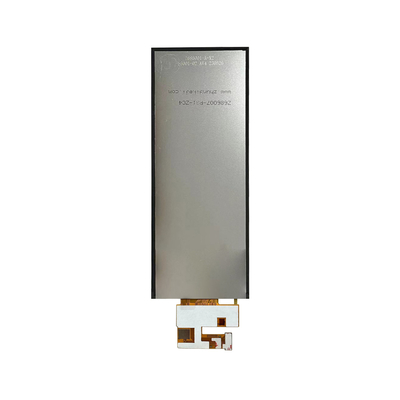

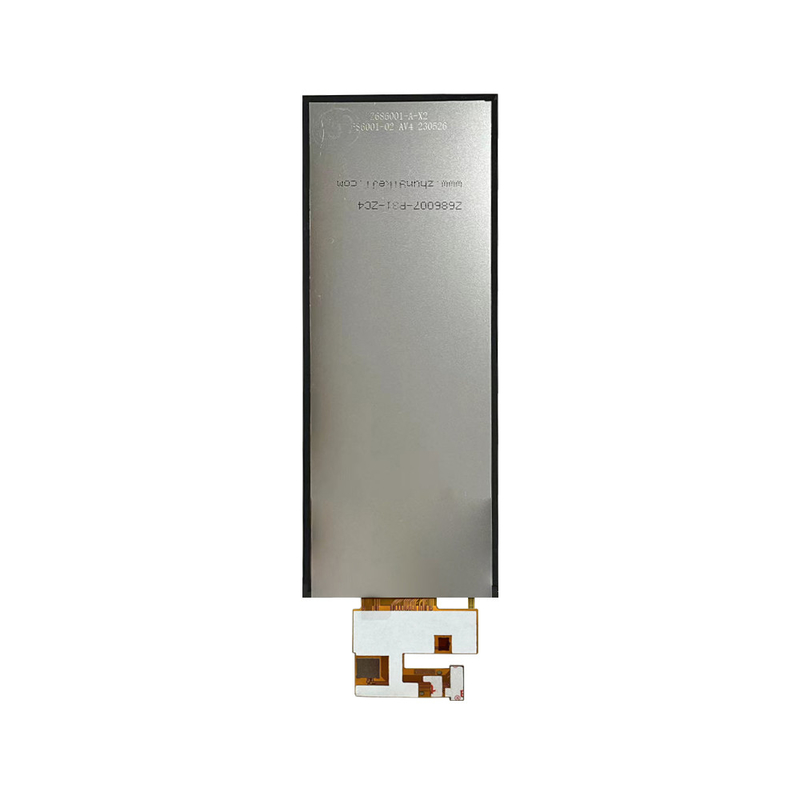

6.75'' 480*RGB*1280 Bar Type TFT LCD Module Lvds Interface

6.75'' 480*RGB*1280 Bar Type TFT LCD Module Lvds Interface

Bar-type TFT LCD Module

Common bar-type TFT sizes: 4.3'', 5.5'', 7.8'', 12.3'', 28.6'', 38.1'' etc.

Common aspect ratios: 16:3, 8:3, 21:9, etc.

Brightness options: Normally 500-1500 nits, optional.

Wide viewing angle: IPS panels view angle can be 80+ degree in all directions.

LED lifetime: Normally could be 30,000hrs, but if you need more durable display. we could make it to50,000hrs.

Interface: RGB, LVDS, HDMI, MIPI, SPI or MCU interface.

Customizable: logo printing, touch panel integration (capacitive or resistive), anti-glare coating.

Operation temperature range: -20 to +70 degree C normally, but also can be -30 to +85 degree C. If you need -40 to +85 degree C, we suggest OLED Module.

How to distinguish replacements for Winstar or other brand displays

 Mechanical dimensions: Make sure the outline dimenson, view area, active area, resolution, connector location parameters are quite similar.

Interface type: Confirm the communication interface and interface definition are the same. (But if the pinout are different, you could customize FPC or PIN as you need. Converter board is also a good choice.)

Driver IC: It is the best that the replacements use the same IC, but some replacement IC are also compatible. You could get samples to try or paying extra for the IC you want.

Touch panel: Match resistive or capacitive type, if it has cover panel, you could also tell us the glass thickness and brand you prefer. We could make drawing according to your request.

Power and backlight: The supply voltage, brightness should match. And if you see some voltage number does not match your display ( such as VGH, VGL, VCOM, AVDD, DVDD), don't worry, they are just for LCD Module internal circulation.

PS: If you are looking for products that are officially EOL, some components may also cannot be found on the market. But we will recommend new material and products to you. And by debugging the program and using connector and converter, the new part can also work well.

Packaging & Shipping

Packaging : All the products are packed in right way to keep it safe.
Small sizes products: tray + carton
Big sizes: slot + carton.
We can design packages to meet customers' requirements.

Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service.
For large quantity orders: we ship by buyer's cargo agent in China.
We can ship by air or sea transportation by our cargo agent.

Delivery Time: Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks

FAQ

1. Can you provide some samples?
-Yes, we can offer samples for you and you just pay some delivery fee.

2. How can I get samples?
- Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect

3. How can I place an order?
- If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We will talk about more detailed information of your order. Any question, pls do not hestiate to contact us.

4. Can you design the lcd in acccordance with our demand?
-Sure, we have professional team to provide ODM&OEM service and any requirements, pls do not hestiate to tell me.

5. What is your payment method?
- We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shippin
