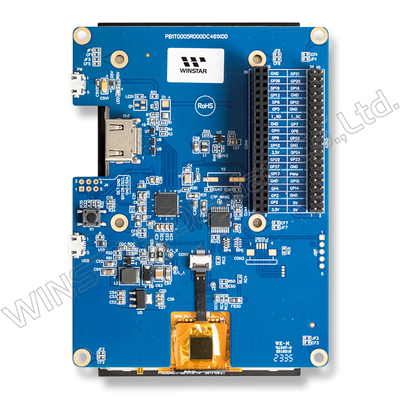

5'' IPS 720*RGB*1280 HDMI TFT LCD Module with converter board for Secure Access
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal Display or ODM/OEM |
| Certification: | SGS, ROHS |
| Model Number: | WF50DSYF3MHG1V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | 19.99 USD EXW negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50K pcs/month |
|
Detail Information |
|||
| Size: | 5.0'' | Dot Matrix: | 720*RGB*1280 |
|---|---|---|---|

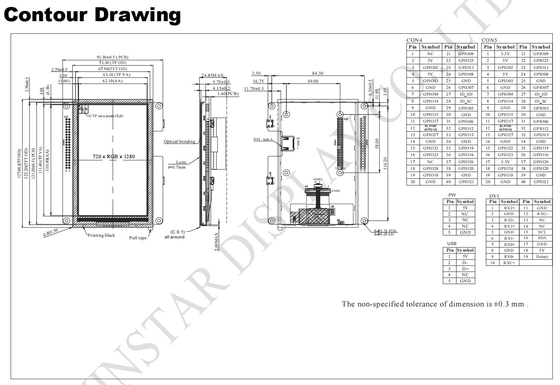

| Module Dimension: | 91.3*127.6*24.85 Mm | Active Area: | 62.1*110.4 Mm |
| LCD Type: | TFT, Normally White, Transmissive | View Angle: | 80 Degree IPS |
| Driver IC: | LT6911C | Interface: | HDMI Or Optional |
| Highlight: | 5 IPS TFT LCD Module,720*RGB*1280 TFT LCD Module,HDMI TFT LCD Module |
||
Product Description
5'' IPS 720*RGB*1280 HDMI TFT LCD Module with converter board for Secure Access

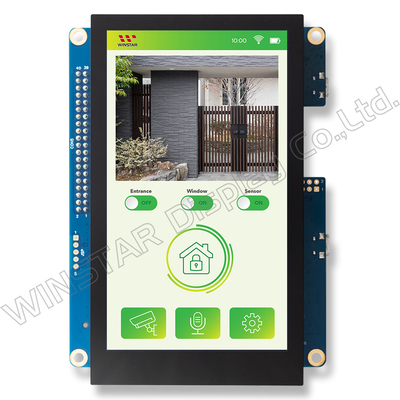

Secure Access Display Features
HDMI input: Easy connection to Raspberry Pi, Jetson Nano, industrial PCs.
High resolution: Clear display for facial recognition, QR scanning, UI elements.
IPS panel: Wide view, suitable for wall or kiosk mounting.
Capacitive touch: optional.
Cover glass: Optional, but if required, should be at least IP65.
Stable and durable: Reliable performance in 24/7, all the weather conditions.
| Item of general information | Contents |
| LCD Type | 5 inch(Diagonal) |
| Recommended Viewing Direction | within 80 degrees IPS |
| Display Resolution | 720 RGB (H) x 1280(V) |
| Outline Dimension | 91.3*127.6*24.85 mm |
| Active area | 62.1(H) x 110.4(V)mm |
| Pixel pitch | 0.08625(H) x 0.08625(V)mm |
| Display Mode | Normally black/Transmissive |
| Pixel arrangement | RGB Vertical stripe |
| Certificate | CE, RoHS, SGS |
| Interface | HDMI |
| Operating Temp | -20º C~+70ºC |
| Storage Temp | -30º C~+80ºC |
Product parameters for Secure access display
Display technology: IPS TFT LCD
Regular size: 5-7''
Resolution: 1280*720 or better
Brightness: indoor>500cd/㎡, outdoor >800cd/㎡
Touch: PCAP
Working temperature: -20 to +70 degree C
Cover Panel: IP65, hardness 3H or 6H
Certification: CE/FCC/RoHS/ ISO
Supplier support: drawing and spec design, tech support, warranty 1 year at least.
Packaging & Shipping
Packaging : All the products are packed in right way to keep it safe.
Small sizes products: tray + carton
Big sizes: slot + carton.
We can design packages to meet customers' requirements.
Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service.
For large quantity orders: we ship by buyer's cargo agent in China.
We can ship by air or sea transportation by our cargo agent.
Delivery Time: Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
