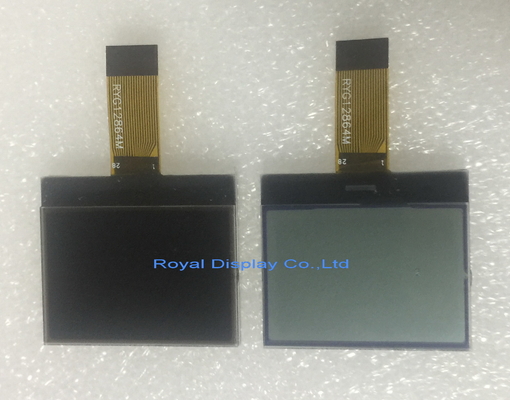

128*64 FSTN Tianma ST7567 Transflective Wide Temperature LCD Module
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Royal Display or ODM/OEM |
| Certification: | SGS, ROHS |
| Model Number: | TM12864G3CCWGWA-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | 1.99 USD EXW |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300K pcs/month |
|
Detail Information |
|||
| LCD Type: | FSTN, Positive | Duty Cycle: | 1/16 Duty, 1/9 Bias |
|---|---|---|---|
| Polarizer: | Transflective | Operating Temp: | -20 To +70 Celsius Degree |
| Driver IC: | ST7567 | Module Dimension: | 70.00*43.00*9.00 Mm |
| View Area: | 58.00*29.5 Mm | DOT Size: | 0.39*0.39 Mm |
| Highlight: | Transflective FSTN LCD Module,128*64 FSTN LCD Module,Wide Temperature FSTN LCD Module |
||
Product Description
128*64 FSTN Tianma ST7567 Transflective Wide Temperature LCD Module
The famous brands display we have
BOE: Large-scale production, AMOLED, all-size dominance. You could get BOE LCD Modules from us, or customize display here using BOE glass.
AUO: High-quality TFT displays, perfect for many automotive and industrial scenarios. You could share product drawing or part number with us, we will check for lead time and quotation for you.
Innolux: Both glass only or original displays are available here.
Tianma: Provide abundant solutions for industrial and custom displays.
Waveshare: It's embeded solutions integrator/ reseller.
E-paper displays: E-ink, Good display, DKE or other e-paper display brands.
If you are looking for more cost-effective or some products that are EOL, you could ask for recommendations, we will send you quotation and lead time based on your requirements.

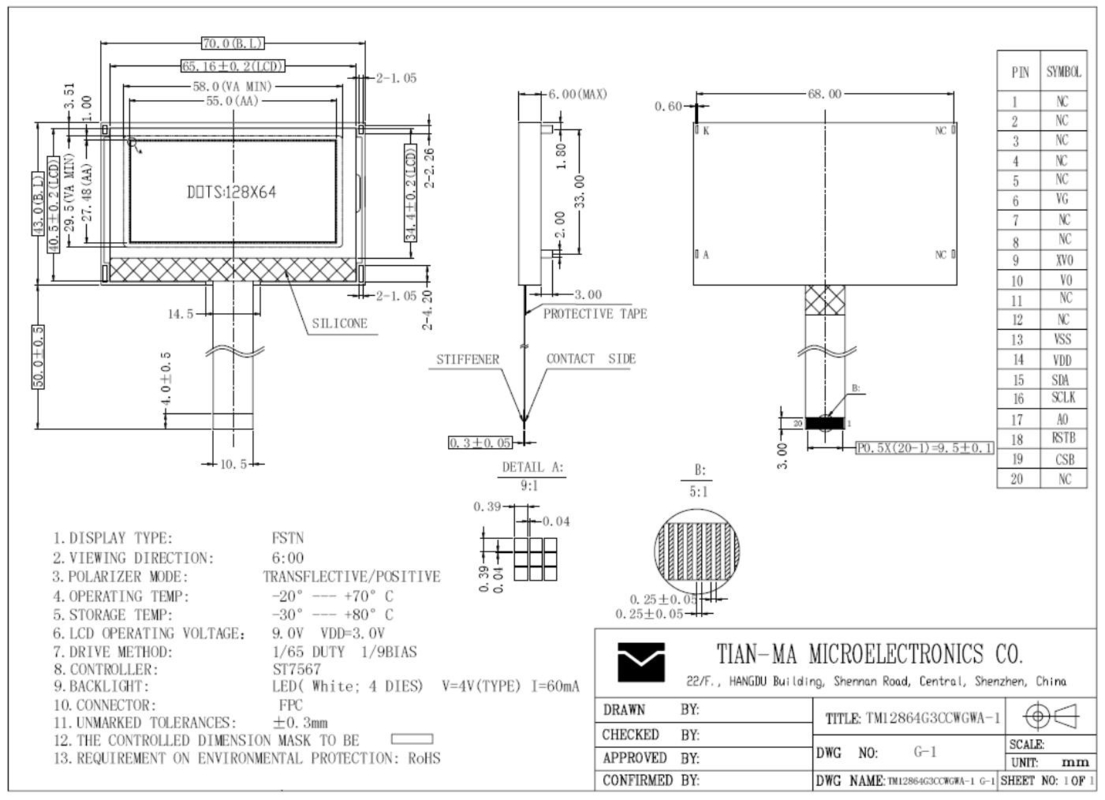

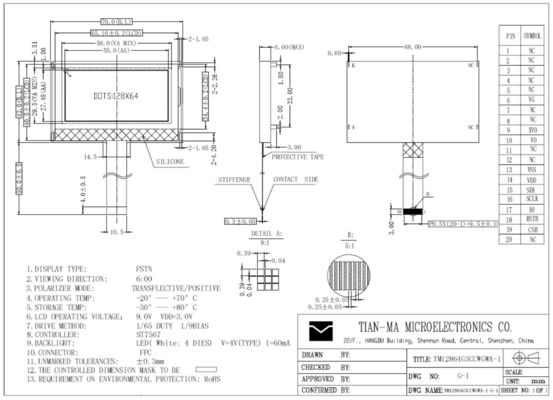

| Item | Specification |
| Product Name | 128x64 dots Graphic LCD Module |
| Model No. | TM12864G3CCWGWA-1 |
| Dot Format | 128x64 |
| LCD Display Mode | FSTN Monochrome, color optional |
| View Angel | 6H,wide view |
| Driving Method | 1/16 duty, 1/9 bias |
| Backlight | WHITE |
| Drive IC | ST7567 |
| Operation Voltage(V) | 3.6v max |
| LCM technological conditions | RoHS |
| Operating Temp | -20º C~+70ºC |
| Storage Temp | -30º C~+80ºC |
Product Features
A 128x64 dots graphic LCD module offers several advantages for applications that require custom graphics and user interface elements.
*High Resolution: It provides a relatively high pixel density, allowing for the display of detailed graphics and images. This can enhance the visual appeal and clarity of the displayed content.
*Customization: A graphic LCD module allows for the individual control of each pixel, enabling the creation of custom graphics, icons, and user interface elements.
*Versatility: The ability to display custom graphics and images makes a 128x64 graphic LCD module suitable for a wide range of applications.
*User Interaction: The display of custom graphics and user interface elements allows for intuitive user interaction. It enables the presentation of buttons, menus, sliders, and other interactive elements, enhancing user experience and usability.
*Information Display: The high resolution enables the presentation of detailed information, such as graphs, charts, and data plots.
*Low Power Consumption: Graphic LCD modules generally consume less power compared to other display technologies like TFT-LCDs.
*Compact Size: This module is available in compact form factors, making it suitable for applications with limited space constraints.
*Cost-Effective: Graphic LCD modules are often more cost-effective compared to higher-resolution displays like TFT-LCDs.
Our Service
1. Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Correct Packaging Way: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.
4. Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Professional Customized Service: Professional team provide OEM&ODM service.
6. Competitive Price: Give you a direct factory price.
7. Better After-sales Service: Long for one year warranty.
