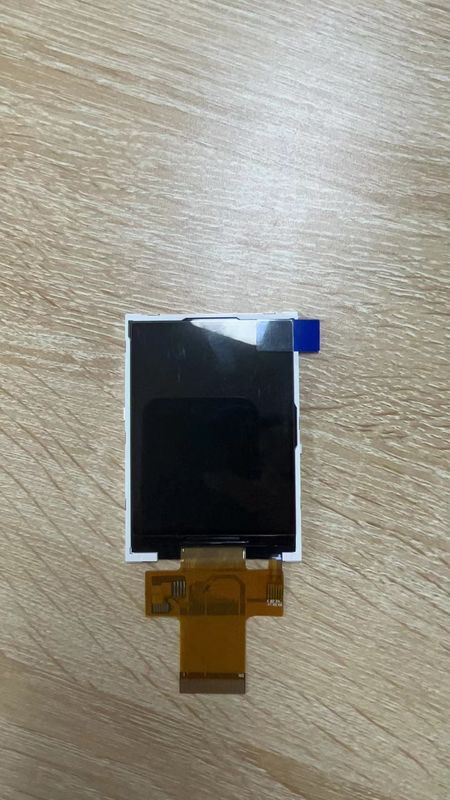

3.2'' TFT 240*320 RGB LCD Module wide temperature 40 PIN industrial display
Product Description
A TFT LCD module consists of a glass panel with a thin-film transistor array formed on it. The TFT array is composed of individual transistors associated with each pixel, allowing for precise control of each pixel's state. Color filters and liquid crystal material are also present to produce colors and control light transmission. "3.2-inch" refers to the diagonal measurement of the display panel. The actual dimensions of the module vary depending on the manufacturer. 3.2-inch color screen is a smaller size color display, it still provides a reasonable display for such a small screen. The following are some detailed information about 3.2-inch TFT LCD Moudule product.
| Item of general information | Contents |
| LCD Type | 3.2 inch(Diagonal) |
| Recommended Viewing Direction | 12O'Clock |
| Display Resolution | 240RGB(H)x320(V) |
| Certificate | CE, RoHS, SGS |
| Display Type | 262K TFT |
| Display Mode | Normally white/Transmissive |
| Drive IC | ILI9341 |
| View Angle Range | Wide Angle of View |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
Product Features
1. Using high transmittance glass substrate: This LCD screen uses a glass substrate with high light transmittance, which makes the screen clear, bright, distinct, and colorful. At the same time, because it is designed with a low-power driver IC circuit, the whole machine consumes less power. The volume is greatly reduced, thereby reducing the user's cost of use.
2. Ultra-thin body: Small size, thin thickness, light weightand and easy to carry and use.
3. Low energy consumption: It saves power and does not generate high temperatures (the main power consumption and heat generation parts are in the backlight tube or LED)
4. Low radiation: It has low working voltage and low radiation, which is healthier and more comfortable.
5. Soft and comfortable screen: The screen will not flicker, which can reduce the damage to the eyes caused by the display and make the eyes less likely to tire.
6. Uniform brightness: The brightness of this LCD screen is very uniform and it can maintain high definition even under strong outdoor light.
Product Application
A 3.2-inch TFT LCD can be used in various applications that require a small-sized display with color capabilities.
1. Automotive Displays: In automotive systems, 3.2-inch TFT LCD displays are often used in rearview mirrors with integrated displays, backup cameras, and in-dash infotainment systems.
2. Point-of-Sale (POS) Systems: In retail and hospitality environments, 3.2-inch TFT LCD displays can be found in portable or handheld POS systems. These displays enable the presentation of transaction details, menu options, pricing information, and customer interactions.
3. Portable Gaming Devices: Handheld gaming consoles or portable gaming devices often employ 3.2-inch TFT LCD displays. These displays can show game graphics, characters, menus, and other gaming-related content.
4. Digital Cameras: Some compact digital cameras utilize 3.2-inch TFT LCD displays as the main screen for framing and reviewing photos. The display can show captured images, camera settings, and menus.
5. IoT Devices: Internet of Things (IoT) devices such as small sensors or connected devices may utilize 3.2-inch TFT LCD displays to provide a basic user interface for configuration, status updates, or simple interactions.
6. Portable Media Players: 3.2-inch TFT LCD displays are commonly used in portable multimedia devices such as portable media players, handheld gaming consoles, and portable DVD players.
7. Wearable Devices: Some wearable devices like fitness trackers, heart rate monitors, or activity trackers may incorporate a 3.2-inch TFT LCD display to show fitness data, health metrics, and user interface elements.
8. Measurement Instruments: Small measurement instruments or handheld meters may integrate a 3.2-inch TFT LCD display to show measurements, readings, graphs, and other data.
9. Industrial Control Panels: In industrial settings, 3.2-inch TFT LCD displays can be used in control panels or human-machine interfaces (HMIs) to show real-time data, status indicators, and control options.
10. DIY Electronics Projects: Hobbyists and makers can incorporate 3.2-inch TFT LCD displays into their DIY electronics projects, such as small electronic gadgets, prototyping, or customized user interfaces.
Packaging & Shipping
Packaging : All the products are packed in right way to keep it safe.
Small sizes products: tray + carton
Big sizes: slot + carton.
We can design packages to meet customers' requirements.
Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service.
For large quantity orders: we ship by buyer's cargo agent in China.
We can ship by air or sea transportation by our cargo agent.
Delivery Time: Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
