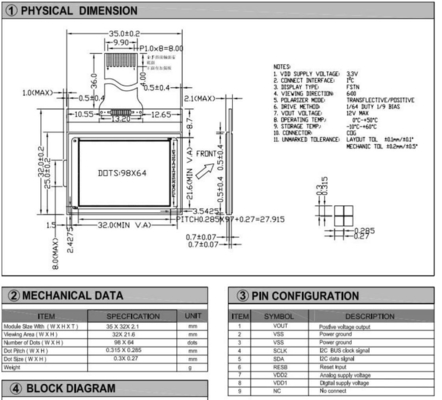

| 98*64 Graphic LCD Module With St7549 I2c Interface Transflective Positive Wide Temperature Display: | 35*32*2.1 Mm | Viewing Area: | 32*21.6 Mm |
|---|---|---|---|
| DOT Pitch: | 0.315*0.285 Mm | DOT Size: | 0.3*0.27 Mm |
| LCD Driver: | St7549 | Number Of Dots: | 98*64 |
| High Light: | I2c Graphic LCD Module,Transflective Positive Graphic LCD Module,98*64 Graphic LCD Module |
||

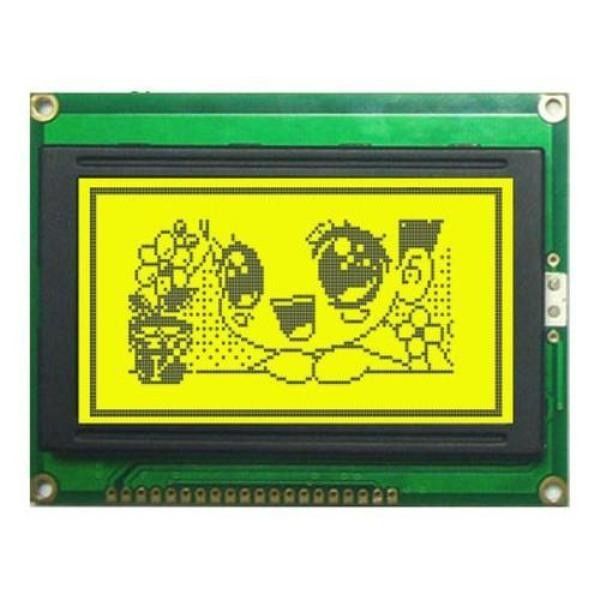

98*64 Graphic LCD Module with St7549 I2c Interface Transflective Positive Wide Temperature Display
Product Description
A 98x64 graphic LCD refers to a type of liquid crystal display that has a resolution of 98 pixels in width by 64 pixels in height. This means that the LCD screen can display a total of 64 pixels horizontally and 64 pixels vertically.
The LCD operates by using an array of pixels, where each pixel can be individually controlled to display a specific color or state (usually on or off). The 98x64 resolution implies that there are 6272 (98 multiplied by 64) individual pixels on the screen.
Graphic LCDs are commonly used in various electronic devices, such as small information displays, wearable devices, and embedded systems, where a low-resolution graphical interface is required. They can show simple graphics, icons, text, and other visual elements.
| Item | Specification |
| Product Name | 98x64 dots Graphic LCD Module |
| Model No. | RYP9864A |
| Dot Format | 98x64 |
| LCD Display Mode | STN/TN Monochrome, color optional |
| View Angel | 12H or 6H |
| Driving Method | 1/64 Duty, 1/9 Bias |
| Backlight | WHITE |
| Drive IC | ST7549 |
| Operation Voltage(V) | 3.3V |
| LCM technological conditions | RoHS |
| Operating Temp | 0º C~+50ºC |
| Storage Temp | -10º C~+60ºC |
Product Features
A 98x64 dots graphic LCD module offers several advantages for applications that require custom graphics and user interface elements.
*High Resolution: It provides a relatively high pixel density, allowing for the display of detailed graphics and images. This can enhance the visual appeal and clarity of the displayed content.
*Customization: A graphic LCD module allows for the individual control of each pixel, enabling the creation of custom graphics, icons, and user interface elements.
*Versatility: The ability to display custom graphics and images makes a 98x64 graphic LCD module suitable for a wide range of applications.
*User Interaction: The display of custom graphics and user interface elements allows for intuitive user interaction. It enables the presentation of buttons, menus, sliders, and other interactive elements, enhancing user experience and usability.
*Information Display: The high resolution enables the presentation of detailed information, such as graphs, charts, and data plots.
*Low Power Consumption: Graphic LCD modules generally consume less power compared to other display technologies like TFT-LCDs.
*Compact Size: This module is available in compact form factors, making it suitable for applications with limited space constraints.
*Cost-Effective: Graphic LCD modules are often more cost-effective compared to higher-resolution displays like TFT-LCDs.
Our Service
1. Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Correct Packaging Way: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.
4. Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Professional Customized Service: Professional team provide OEM&ODM service.
6. Competitive Price: Give you a direct factory price.
7. Better After-sales Service: Long for one year warranty.
