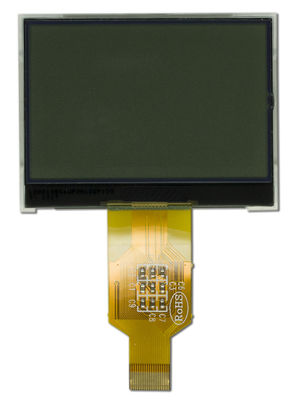

2.4'' 128*64 Graphic LCD Module Low Power CFAG12864U3-TFH ST7565P With Backlight Industrial Display

2.4'' 128*64 graphic LCD Module low power CFAG12864U3-TFH ST7565P with backlight

Product Description

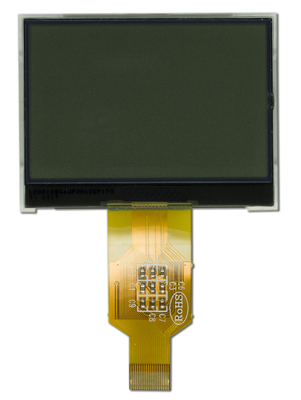

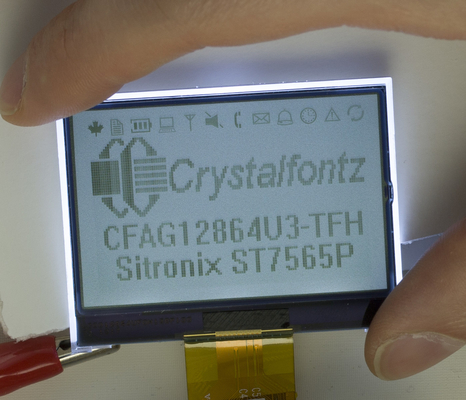

The CFAG12864U3-TFH is a compact, 128x64 graphic LCD display module. It is thin, light, low power, and LED backlit. This display is visible in all lighting situations, from darkness, normal office lighting, and up to bright sunlight, making it an excellent sunlight/daylight readable LCD solution. This graphic LCD is a transflective, positive-mode display, the backlight may be turned off when there is sufficient ambient light to read the display. Turning the backlight off will further reduce the already low power consumption. This display is well suited for compact hand-held devices, or any application where a lot of display in a very small area is needed.

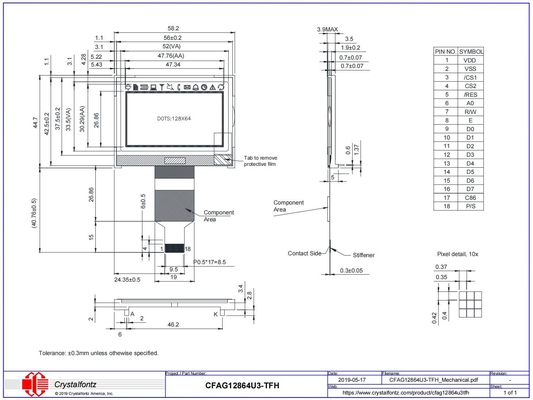

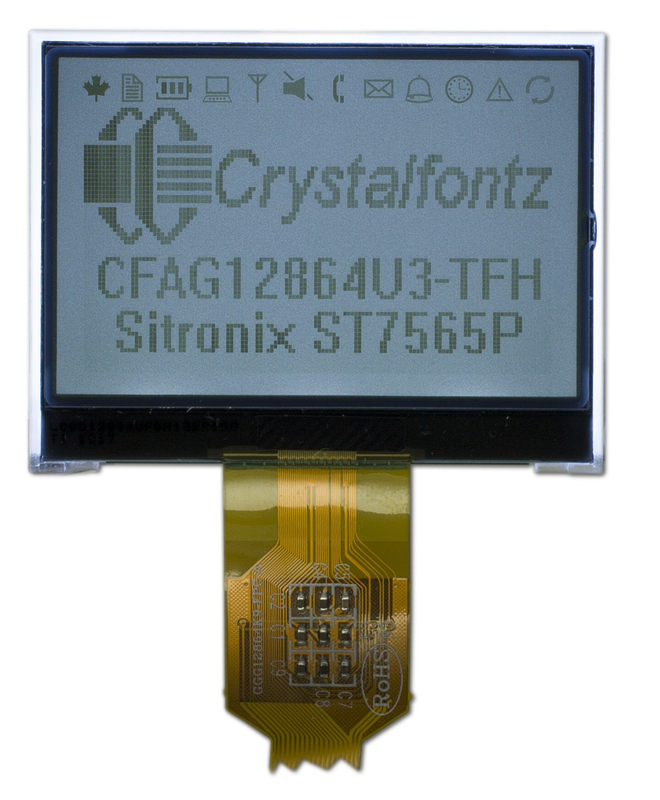

In addition to the 128x64 monochrome graphic array, there is a row of icons across the top of the display, that can easily be turned on and off. This LCD display has an integrated controller and voltage generating components mounted on the flexible tail. The tail connects to a standard 18-conductor 0.5mm pitch ZIF (Zero Insertion Force) connector This module uses an Sitronix ST7565P LCD driver.

Applications

Graphic LCD panels with a resolution of 128*64 pixels can be used in various applications that require graphical information display. Here are a few examples:

1. Industrial Control Panels: Graphic LCDs are commonly used in industrial control panels to display real-time data, system status, and graphical interfaces for controlling and monitoring industrial processes.

2. Medical Devices: Medical instruments and devices often use graphic LCDs to display vital signs, patient information, test results, and graphical user interfaces for user interaction.

3. Test and Measurement Equipment: Graphic LCDs find applications in various test and measurement equipment, such as oscilloscopes, multimeters, spectrum analyzers, and data loggers, to display waveforms, measurement results, and graphical representations of data.

4. Consumer Electronics: Some consumer electronic devices may utilize graphic LCDs, such as portable gaming devices, calculators, digital audio players, and digital cameras, to provide graphical interfaces and visual feedback to users.

5. Automotive Displays: Graphic LCDs can be found in automotive applications, including dashboard displays, infotainment systems, and navigation systems, to show vehicle information, maps, and multimedia content.

6. Home Automation and Control: Graphic LCDs may be used in home automation systems to display control interfaces, status information, and graphical representations of home parameters such as temperature, lighting, and security.

7. Instrumentation and Control Panels: Graphic LCDs are commonly used in control panels for instruments and machinery, providing visual feedback, status indicators, and control options for operators.

These are just a few examples, and graphic LCDs can be found in various other applications where visual display of graphical information is required.

Our Service

1. Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.

2. Correct Packaging Way: Packed in anti-static bags with foam box to ensure safety in transportation.

3. Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.

4. Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5. Professional Customized Service: Professional team provide OEM&ODM service.

6. Competitive Price: Give you a direct factory price.

7. Better After-sales Service: Long for one year warranty.
