7.0'' TFT LCD Module 1024*RGB*600 16:9 LVDS interface automobile display Winstar replace

7.0'' TFT LCD Module 1024*RGB*600 16:9 LVDS interface automobile display Winstar replace

Product Description

Display Size: The diagonal measurement of the LCD screen is 7.0 inches. This measurement is taken from one corner of the screen to the opposite corner.

Display Type: TFT LCD refers to the technology used in the display panel. TFT (Thin-Film Transistor) is a type of transistor that controls the individual pixels on the screen, allowing for faster pixel response times and better image quality compared to older LCD technologies.

Resolution: The resolution of the display is 1024 x RGB x 600 pixels. The "RGB" indicates that each pixel is composed of three subpixels: red, green, and blue. The resolution specifies the number of pixels horizontally and vertically, so in this case, it means there are 1024 pixels in the horizontal direction and 600 pixels in the vertical direction.

Aspect Ratio: The aspect ratio of 16:9 means that the width of the display is 16 units for every 9 units of height. This is a widescreen format commonly used for multimedia content.

Interface: The LCD module uses an LVDS (Low-Voltage Differential Signaling) interface to communicate with other devices. LVDS is a high-speed, low-power signaling standard commonly used for transmitting video data between devices, such as between a display panel and a controller or driver board.

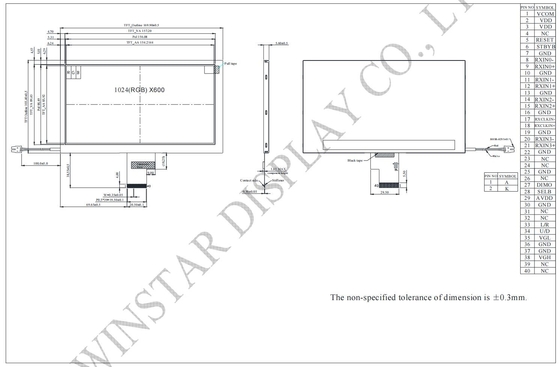

Item	STANDARD Value
LCD size	7 inch(Diagonal)
Driver element	TFT
Resolution	1024*RGB*600
Display mode	Normally white, transmissive
Dot pitch	0.1506*0.1432 mm
Active area	154.21*85.92 mm
Module size	169.9*103.4*5.6 mm
Surface treatment	Anti-glare
Color arrangement	RGB-stripe
LED life time	50,000 hrs
Top & Tst	-20˚C ~ +70˚C &-30˚C-~+80˚C

Applications

Overall, this TFT LCD module with a 7.0'' display, 1024 x RGB x 600 resolution, 16:9 aspect ratio, and LVDS interface can be used in various applications, including portable devices, tablets, embedded systems, automotive displays, and more.

Our Service

1.We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options
5. We provide reliable warranty service and the warranty preriod is one year.


FAQs

1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.

2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.

3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery fee.

4. How long does it take to produce the product?
-It depends on the product you need. Different needs determine the production time

5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
