2.8'' IPS LCD Module 240*320 RGB Free View High Contrast Display custamizable

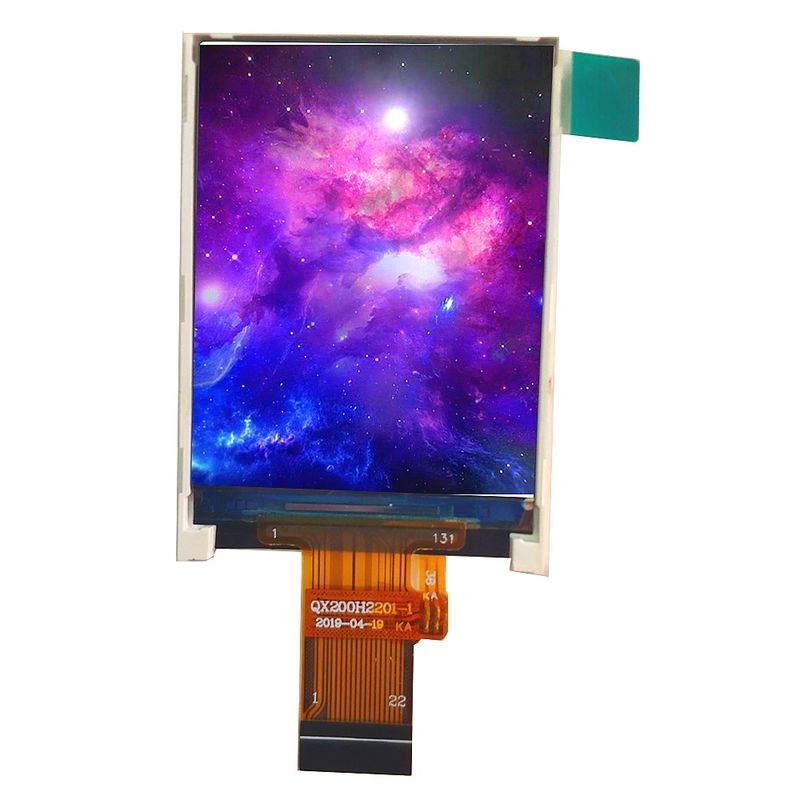

2.8'' IPS LCD Module 240*320 RGB Free View High Contrast Display

Product Description

• Size: The display size is 2.8 inches diagonally, which refers to the length of the visible screen area.
• Resolution: The module has a resolution of 240 pixels in width and 320 pixels in height. This means it can display 240 columns and 320 rows of pixels.
• Color Depth: The module supports a high color depth, typically 262,144 colors (commonly referred to as 262k colors or 18-bit color). This allows for a wide range of colors to be displayed on the screen, resulting in vibrant and accurate color representation.
• Viewing Angle: IPS technology provides a wide viewing angle, allowing the display to be viewed clearly from various angles without significant color distortion or loss of contrast.
• Contrast: The module offers high contrast, which means there is a clear distinction between dark and light areas on the screen. This enhances the readability and visual quality of the displayed content.
• Interface: The specific interface for this module is not mentioned in the description you provided. However, common interfaces for such modules include SPI, parallel, or I2C, depending on the specific controller used.

ITEM	SPECIFICATION
Pixels	240*320 RGB
LCD Type	IPS

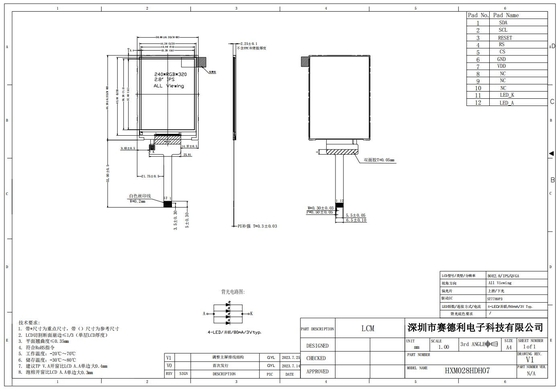

Active Area	43.2*57.6
Module size	50.0(H)*69.2(V)*2.25(D)
pixel pitch	0.180*0.180 mm
Driver IC	ST7789P3
Interface	4-wire SPI
light source	4 white leds
Wide range of operating temperature	-20 to +70 ºC
Wide range of Storage temperature	-30 to +80 ºC

Applications

Overall, this 2.8" IPS LCD module is suitable for applications that require a relatively larger, high-resolution display with excellent color reproduction, wide viewing angles, and high contrast. It can be used in various devices, including portable electronics, embedded systems, handheld instruments, and other applications where visual quality and readability are important considerations.
