2.2 Inch TFT LCD Module 240*320 RGB 2.8v White Wide Temperature Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS, ROHS |
| Model Number: | RYT22HJ-82-A-WX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300K pcs/month |
|
Detail Information |
|||
| Display Mode: | TFT | Operating Voltage: | 2.8V |
|---|---|---|---|
| Active Area: | 33.48 X 44.64 Mm | Module Size: | 38.50 X 53.70 X 2.18 Mm |
| Backlight: | 3 Chip-white Led | Operating Temperature: | -20 To +70 Celsius Degree |
| Highlight: | 2.2 Inch TFT LCD Module,RGB TFT LCD Module |
||
Product Description

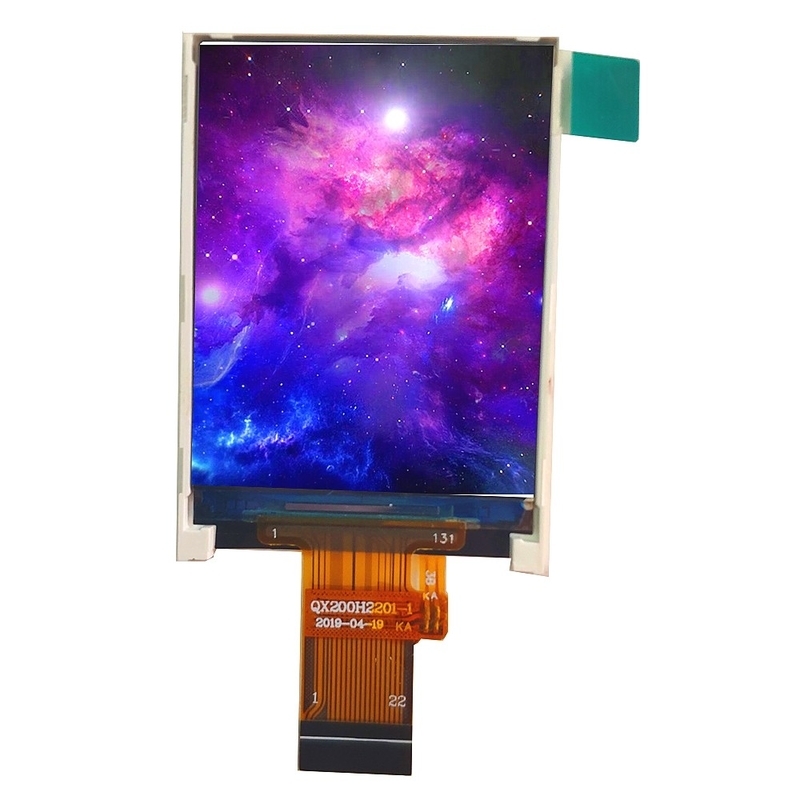

2.2 inch TFT LCD Module 240*320 RGB 2.8v white wide temperature display
Product Description
A 2.2-inch TFT (Thin-Film Transistor) LCD (Liquid Crystal Display) module refers to a type of display panel that measures 2.2 inches diagonally. TFT is a popular LCD technology that offers improved color reproduction, wider viewing angles, and better image quality compared to TN panels.
The module has a resolution of 320x240 pixels, which means it can display 320 pixels horizontally and 240 pixels vertically. This resolution provides a decent level of detail for its size.
TFT LCDs typically use the RGB (Red, Green, Blue) color model and can display a wide range of colors by combining different intensities of the RGB pixels. This allows for vibrant and accurate color reproduction.
| ITEM | SPECIFICATION |
| Pixels | 240*320 RGB |
| LCD Type | TFT |
| Active Area | 2.2 inch |
| operating voltage | 2.8v |
| general tolerance | ±0.2 mm |
| Driver IC | ST7789V2-G4 |
| light source | 3 chip-white leds |
| Wide range of operating temperature | -20 to +70 ºC |
| Wide range of Storage temperature | -30 to +80 ºC |
Applications
The 2.2-inch 320x240 TFT LCD module is commonly used in various applications, including small handheld devices, portable gaming consoles, digital cameras, portable media players, and other devices that require a compact color display with reasonable resolution. It can also be used as a GUI display in embedded systems and microcontroller projects where a small-sized display is needed.
Our Service
1. Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Correct Packaging Way: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.
4. Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Professional Customized Service: Professional team provide OEM&ODM service.
6. Competitive Price: Give you a direct factory price.
7. Better After-sales Service: Long for one year warranty.
FAQs
1.Product information-Quantity,part number
2.Delivery time required.
3.Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4.Forwarder's contact details if you have any in China.
