5.6 Inch Innolux TFT LCD Panel 320*234 RGB At056tn04 Analog Touch Screen

5.6 inch innolux TFT LCD panel 320*234 RGB AT056TN04 Analogue



Product Description

The AT056TN04 is a model of TFT LCD (Thin-Film Transistor Liquid Crystal Display) panel manufactured by Innolux Corporation. Innolux is a Taiwanese company that specializes in the production of TFT LCD panels for various applications.

The AT056TN04 is a small-sized TFT LCD panel. However, without additional information, it is difficult to provide specific details about its size, resolution, or other specifications.

Innolux is a well-known manufacturer in the display industry and supplies TFT LCD panels to various companies across different sectors. Their panels are commonly used in products such as smartphones, tablets, automotive displays, industrial equipment, and more.

Item	STANDARD Value
LCD type	TFT
LCD size	5.6 inch(Diagonal)
Active area	113.28(W)X84.708(H) mm

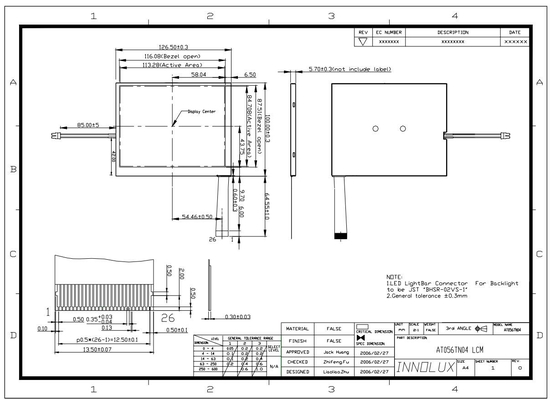

Module size	126.5(W)X100.0(H)X5.7(D) mm
Driver element	a-Si TFT active matrix
Resolution	320X3(RGB)X234
Display mode	Normally White, Transmissive
Pixel Arrangement	RGB-Vertical Stripe
Dot pitch	0.118(W)X0.362(H) mm
Color arrangement	Anti-Glare
Color arrangement	RGB-stripe
Interface	Analog
COMPLIABLY	ROHS
Top & Tst	-30˚C ~ +85˚C &-30˚C-~+85˚C

Applications

The AT056TN04 TFT LCD panel manufactured by Innolux has various applications across different industries. Some of the common applications of this panel include:

1. Industrial Displays: The AT056TN04 panel can be used in industrial displays and human-machine interface (HMI) systems. These displays are often employed in industrial automation, control systems, factory equipment, and other industrial applications.

2. Portable Devices: The small form factor of the AT056TN04 panel makes it suitable for use in portable devices such as handheld instruments, portable medical devices, portable gaming consoles, and other compact electronic devices.

3. Automotive Displays: TFT LCD panels are widely used in automotive applications, including infotainment systems, digital instrument clusters, rear-seat entertainment systems, and touchscreens in car navigation systems. The AT056TN04 panel may be utilized in such automotive display systems.

4. Consumer Electronics: The panel can also find its application in various consumer electronic devices such as digital cameras, portable media players, portable DVD players, and other handheld multimedia devices.

It's important to note that the specific application of the AT056TN04 panel can vary depending on the requirements and design choices of the companies that incorporate it into their products. Therefore, the panel may be used in other applications beyond those mentioned above.

​

Our Advantages

1. We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options
5. We provide reliable warranty service and the warranty preriod is one year.

​

Packaging & Shipping

Packaging : All the products are packed in right way to keep it safe. For small sizes of products we often use tray + carton, and for bigger sizes we use foam slot + carton. Also we can design packages to meet customers' requirements.
​

Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service. And For large quantity orders: we ship by buyer's cargo agent in China. Also, we can ship by air or sea transportation by our cargo agent.

Delivery Time:

Ready-made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks
​

FAQ

1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.

2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.

3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery fee.

4. How long does it take to produce the product?
-It depends on the product you need. Different needs determine the production time

5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
