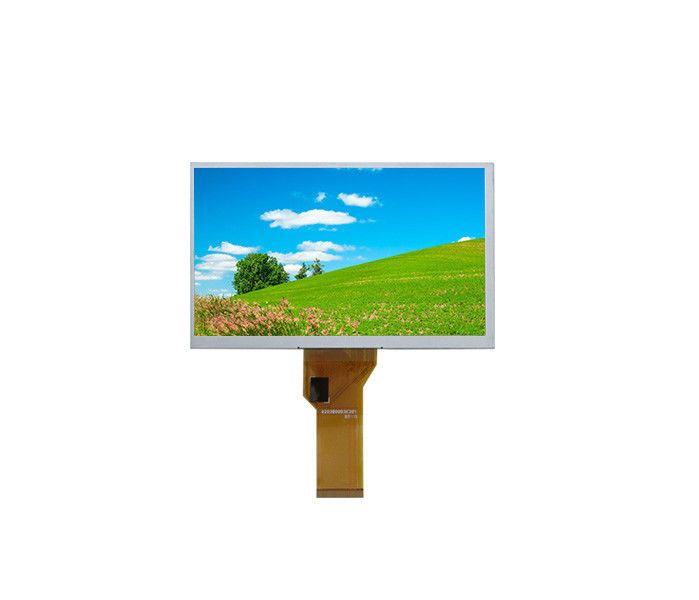

7 Inch Innolux TFT LCD Module 800*480 RGB G070ACE-L01 Display Wide Temperature

7 inch Innolux TFT LCD Module 800*480 RGB G070ACE-L01 display wide temperature


Product Description

The G070ACE-L01 is a specific model of a TFT LCD (Thin-Film Transistor Liquid Crystal Display) panel manufactured by Innolux. Here are some features and specifications of the G070ACE-L01:

Size: The G070ACE-L01 has a display size of 7.0 inches, measured diagonally. This compact size makes it suitable for various applications that require a smaller display, such as portable devices and embedded systems.

Resolution: The display resolution of the G070ACE-L01 is typically specified as 800x480 pixels. This resolution provides a good balance between clarity and readability for a screen of this size.

Aspect Ratio: The G070ACE-L01 has an aspect ratio of 15:9, which is slightly wider than the standard 16:9 widescreen aspect ratio. This aspect ratio is commonly used in smaller displays and provides a wider field of view.

TFT Technology: The G070ACE-L01 utilizes TFT technology, which consists of thin-film transistors placed at each pixel on the display. This technology enables precise control over individual pixels, resulting in high-quality images and fast response times.

Backlighting: The G070ACE-L01 features an LED (Light Emitting Diode) backlight, providing bright and uniform illumination across the display. LED backlights are known for their energy efficiency and longer lifespan compared to traditional CCFL (Cold Cathode Fluorescent Lamp) backlights.

Viewing Angle: The G070ACE-L01 offers a wide viewing angle, allowing users to view the screen clearly from different positions and angles without significant color or contrast distortion. This is especially important for handheld and portable devices where the screen might be viewed from various angles.

Interface: The specific interface used by the G070ACE-L01 panel may vary, but common interfaces include LVDS (Low-Voltage Differential Signaling) or MIPI (Mobile Industry Processor Interface). These interfaces facilitate communication between the display and the host device, such as a tablet or embedded system controller.

Item	STANDARD Value
LCD size	7 inch(Diagonal)
Driver element	a-Si TFT active matrix
Resolution	800 RGB*480
Display mode	Normally black, transmissive
Pixel pitch	0.1905 (H) x 0.1905 (V) mm
Active area	152.4(W) * 91.44 (H) mm

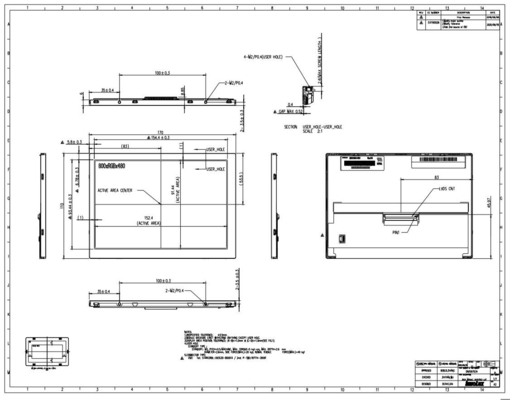

Module size	170(W) *110(H) *6(D) mm typ
Surface treatment	AG type, 3H hard coating
Color arrangement	RGB-stripe
Weight	182.8g (Typ.)
Top & Tst	-30˚C ~ +85˚C &-40˚C-~+90˚C

​

Applications

The G070ACE-L01 can be used in various applications, including:

Handheld Devices: The 7.0-inch size and compact form factor of the G070ACE-L01 make it suitable for use in handheld devices such as smartphones, tablets, portable media players, and gaming consoles.

Embedded Systems: The G070ACE-L01 can be integrated into embedded systems, such as industrial control panels, HMIs (Human-Machine Interfaces), and IoT (Internet of Things) devices, where a small-sized display is required.

Automotive Displays: The G070ACE-L01 can be used in automotive applications, such as infotainment systems, dashboard displays, and rear-seat entertainment systems.

Medical Devices: The G070ACE-L01 can be utilized in medical devices such as patient monitoring systems, diagnostic equipment, and handheld medical devices.

Portable Instruments: The G070ACE-L01 can be integrated into portable instruments, including measurement devices, test equipment, and handheld devices used in various industries.

Please note that while these are some common applications, the G070ACE-L01 can be used in various other devices and industries where a 7.0-inch TFT LCD display is required.

​

Our Advantages

1. We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options
5. We provide reliable warranty service and the warranty preriod is one year.

​

Packaging & Shipping

Packaging : All the products are packed in right way to keep it safe. For small sizes of products we often use tray + carton, and for bigger sizes we use foam slot + carton. Also we can design packages to meet customers' requirements.
​

Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service. And For large quantity orders: we ship by buyer's cargo agent in China. Also, we can ship by air or sea transportation by our cargo agent.

Delivery Time:

Ready-made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks
​

FAQ

1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.

2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.

3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery fee.

4. How long does it take to produce the product?
-It depends on the product you need. Different needs determine the production time

5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
