5 Inch FSTN Graphic LCD Module 192*64 5.06 COG Display With UC1698U

5 inch FSTN Graphic LCD Module 192*64 5.06 COG display with UC1698U

Product Description

Graphic LCD is a liquid crystal display specially used to display graphics and images. Compared with traditional character LCD screens, graphic LCD screens have higher resolution and richer display capabilities, and can display complex graphics, images and animations. Graphic LCD screens usually have higher pixel density and resolution, which can display more details and image information, providing clearer and more accurate graphics display. Graphic LCD screens can support a variety of colors and color depths, from monochrome to full color, allowing graphics and images to be presented in a richer, more vivid way. The following are some data about our 192x64 dots graphic LCD display.

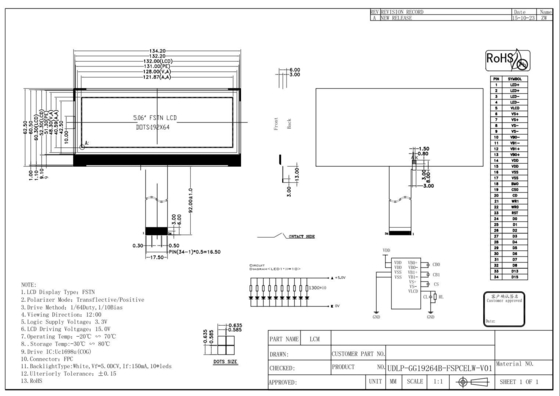

ITEM	SPECIFICATION
Display Type	192*64 dots
LCD Type	FSTN, Transflective/Positive,1/64Duty,1/10Bias
Outline Size	134.2(L)*62.5(W)*6.0(T)mm
View Area	128.0*48.3 mm
Viewing Direction	12 O'clock
Display Area	121.87*40.59 mm
Dots Size	0.585*0.585 mm
Dots Pitch	0.635*0.635 mm
Controller & Driver	UC1698U (COG)
Interface Mode	6800, 8080; SPI 4-Wire, 3-Wire
VDD&VOP(Type)	3.3 V & 15.0 V
Backlight Color	White, 5V, 150mA
Wide range of operating temperature	-30 to 70
Wide range of Storage temperature	-30 to 80

​



Product features

A 192x64 dots graphic LCD module offers several advantages for applications that require custom graphics and user interface elements.

*High Resolution: It provides a relatively high pixel density, allowing for the display of detailed graphics and images. This can enhance the visual appeal and clarity of the displayed content.

*Customization: A graphic LCD module allows for the individual control of each pixel, enabling the creation of custom graphics, icons, and user interface elements.

*Versatility: The ability to display custom graphics and images makes it suitable for a wide range of applications.

*User Interaction: The display of custom graphics and user interface elements allows for intuitive user interaction. It enables the presentation of buttons, menus, sliders, and other interactive elements, enhancing user experience and usability.

*Information Display: The high resolution enables the presentation of detailed information, such as graphs, charts, and data plots.

*Low Power Consumption: Graphic LCD modules generally consume less power compared to other display technologies like TFT-LCDs.

*Compact Size: This module is available in compact form factors, making it suitable for applications with limited space constraints.

*Cost-Effective: Graphic LCD modules are often more cost-effective compared to higher-resolution displays like TFT-LCDs.
​

Product Applications

It is a 192x64 dot matrix LCD screen with high image quality, wide viewing angle. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in smart equipment, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture equipment, and various instruments, such as evaluation instruments, power system equipment, laboratory instruments, medical instruments, fire protection systems, temperature and humidity transmissions, pressure transmissions, analytical instruments, environmental protection testing instruments, etc. And the versatility and graphical capabilities of this module make it suitable for a wide range of applications where custom graphics and user interfaces are needed.

​
