3.5 Inch TFT LCD Module Display 320*240 24-Bit RGB Hx8238d Customize

3.5 inch TFT LCD module display 320*240 24-bit RGB HX8238D customize


Product Description

A TFT LCD module consists of a glass panel with a thin-film transistor array formed on it. The TFT array is composed of individual transistors associated with each pixel, allowing for precise control of each pixel's state. Color filters and liquid crystal material are also present to produce colors and control light transmission. "4.3-inch" refers to the diagonal measurement of the display panel. The actual dimensions of the module vary depending on the manufacturer. The following are some detailed information about Innolux 4.3-inch TFT LCD Moudule product.

Item	Description
Product Name	3.5inch TFT LCD
Model No.	RYT0350RDW01
Color Depth	16.7M
Viewing Angle	12 O' clock
LCD Type	TFT LCD
Backlight	Normally White LED backlight
Driver IC	HX8238D
Pplarizer	Transmissive
Interface	24-bit RGB
Operating Temp	-20º C~+70ºC
Storage Temp	-30º C~+80ºC

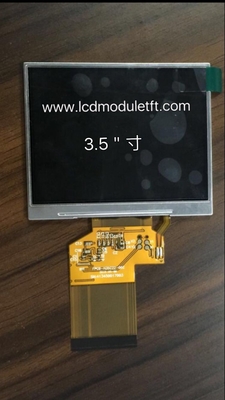

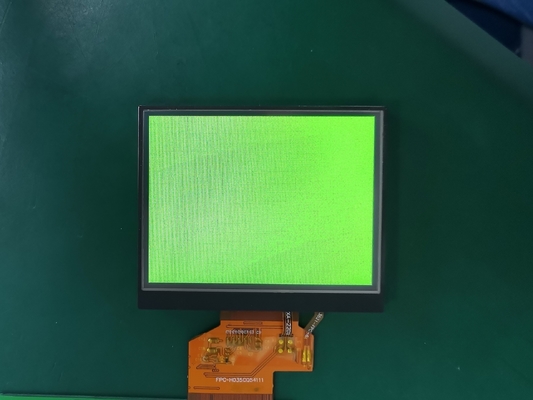

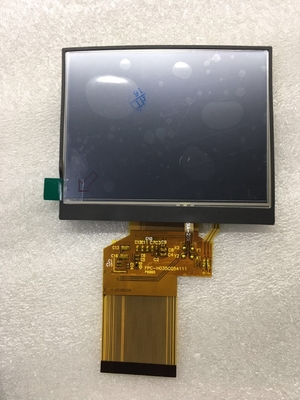

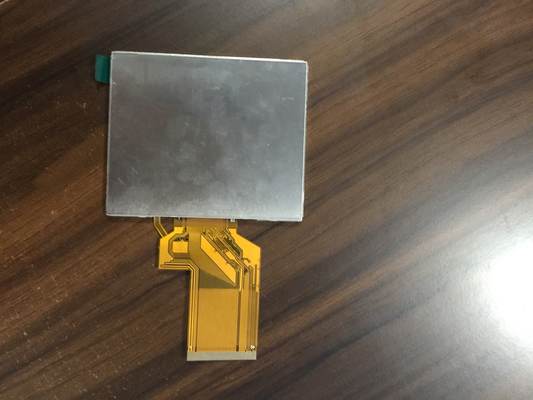

Detailed Photos

3.5-inch TFT LCDs typically have a resolution of 320x240 pixels, although higher resolutions are also available for more advanced applications. The display may support color depths ranging from 16-bit (65,536 colors) to 24-bit (16.7 million colors), providing vibrant and detailed visuals.

These displays often feature an LED backlight to provide illumination, ensuring good visibility in various lighting conditions. Some TFT LCDs also incorporate touch-sensitive layers, enabling touch input and interaction with the display.

In summary, a 3.5-inch TFT LCD is a small-sized display technology that utilizes thin-film transistor technology to provide high-quality images and is commonly found in a wide range of portable electronic devices.

​
​
​
​

Our Advantages

Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display.

More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.

Our products have passed international quality certificates, including CE, FCC & RoHS. With high quality and competitive prices, as a result, our products are exported to Asia, Europe, North America, South America, Africa and the Middle East and are well received by consumers. Holding the philosophy of "innovation, efficient, strictness, responsibility", our company commits to provide professional services and guide our customers worldwide. For the fore-sales service, we have skilled engineers to answer all your questions and provide optimized solutions based on your project. For the after-sales service, we provide customized service as you required. We make efforts to meet customers' requirements and search for long-term cooperation. We will try our best to serve you and hope to become one of your friends and business partners. We are looking forward to working together with you and establish long term WIN-WIN business.
​
​
​
OUR ADVANTAGE

1). Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.

2). Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3). Payment Terms: T/T, Western Union.

4). Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5). Service: Best after-sales service to ensure satisfaction from customers.

6). Delivery: Goods will be delivered with 2-4 days by DHL, UPS, TNT, EMS, or By Air

7). Warranty: Usually, product warranty for one year.

8). Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
