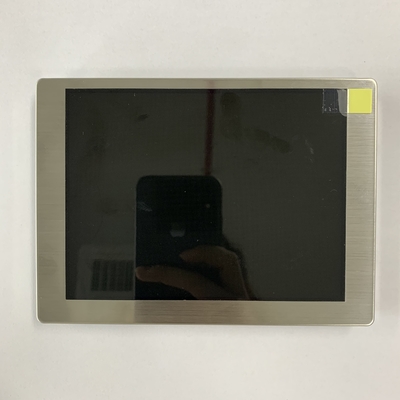

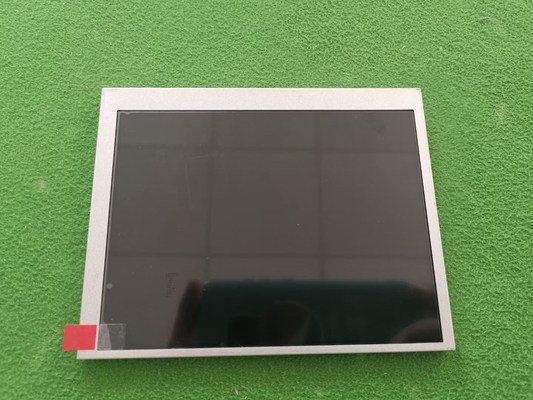

Innolux 5.6 inch TFT LCD Module 640*RGB*480 digital display screen AT056TN52

Innolux 5.6 inch TFT LCD Module 640*RGB*480 digital display screen AT056TN52



Product Description

The 5.6-inch TFT screen uses TFT (thin film transistor) liquid crystal technology, which displays images by controlling the liquid crystal of each pixel. TFT technology has the advantages of high refresh rate, high color performance and wide viewing angle, and can provide good image quality and visual effects. The 5.6-inch TFT screens are usually equipped with a backlight, the most common one is LED backlight. The backlight provides the brightness of the screen, making it clearly visible in a variety of environmental conditions. The 5.6-inch color screen is a smaller size color display, it still provides a reasonable display for such a small screen. The following are some detailed information about 5.6-inch TFT LCD Moudule product.

The a-Si TFT has several advantages, including low production costs and compatibility with large-area manufacturing processes. It also offers good electrical stability, making it suitable for applications that require continuous operation, such as displays.

However, a-Si TFT technology also has some limitations. It has relatively slow switching speeds compared to other types of TFTs, which can result in motion blur in fast-moving images. Additionally, a-Si TFTs have lower electron mobility, which can affect the overall performance of the display.

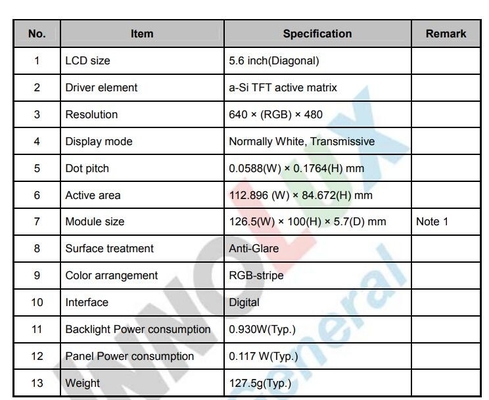

Item	STANDARD Value
LCD type	TFT
LCD size	5.6 inch(Diagonal)
Active area	112.896 (W) * 84.672(H) mm

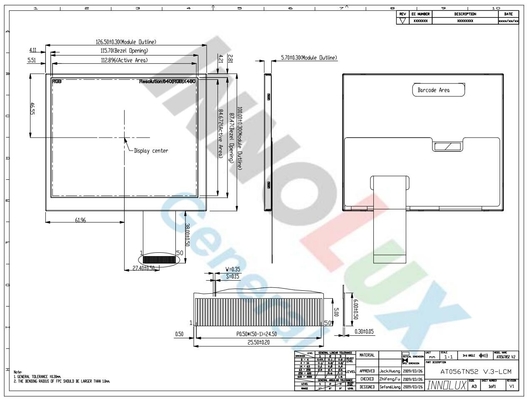

Module size	126.5(W) * 100(H) * 5.7(D) mm
Driver element	a-Si TFT active matrix
Resolution	640 * (RGB) * 480
Display mode	Normally White, Transmissive
Pixel Arrangement	RGB-Vertical Stripe
Dot pitch	0.0588(W) * 0.1764(H) mm
Color arrangement	Anti-Glare
Display Resolution	240RGBX320
Color arrangement	RGB-stripe
Interface	Digital
COMPLIABLY	ROHS
Top & Tst	-20˚C ~ +70˚C &-30˚C-~+80˚C

​


Applications

The 5.6-inch TFT LCD display is a common LCD display with small size and resolution, and is widely used in various electronic devices and application scenarios. The 5.6-inch LCD Module finds applications in various electronic devices and systems, such as handheld devices, industrial control panels, medical instruments, automotive display, consumer electronics, embedded systems, test and measurement equipments, home appliances and so on.
​

Our Advantages

1. We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options
5. We provide reliable warranty service and the warranty preriod is one year.

​

Packaging & Shipping

Packaging : All the products are packed in right way to keep it safe. For small sizes of products we often use tray + carton, and for bigger sizes we use foam slot + carton. Also we can design packages to meet customers' requirements.
​

Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service. And For large quantity orders: we ship by buyer's cargo agent in China. Also, we can ship by air or sea transportation by our cargo agent.

Delivery Time:

Ready-made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks
​

FAQ

1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.

2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.

3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery fee.

4. How long does it take to produce the product?
-It depends on the product you need. Different needs determine the production time

5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
