Product Details:
Payment & Shipping Terms:
|
| LCD Type: | TFT Color | Screen Size: | 6.2 Inch |
|---|---|---|---|
| Resolution: | 800 RGB (H)X480(V) | Display Mode: | Normally White, Transmissive |
| Certificate: | CE, RoHS, SGS | Pixel Arrangement: | RGB Vertical Stripe |
| High Light: | 6.2'' TFT LCD,FRC Driver TFT LCD Screen |
||

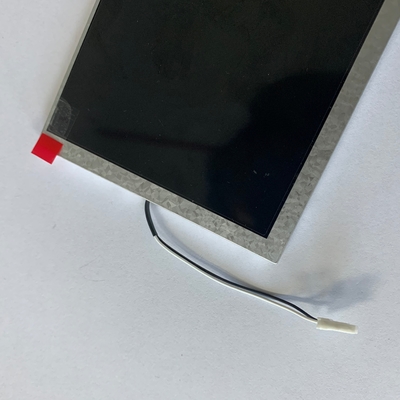

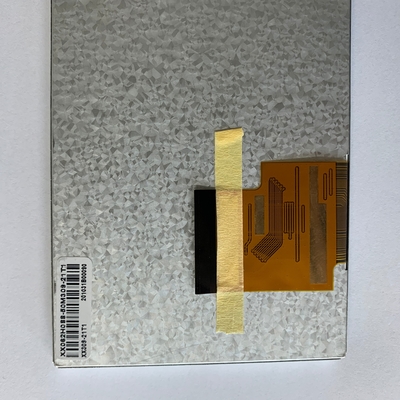

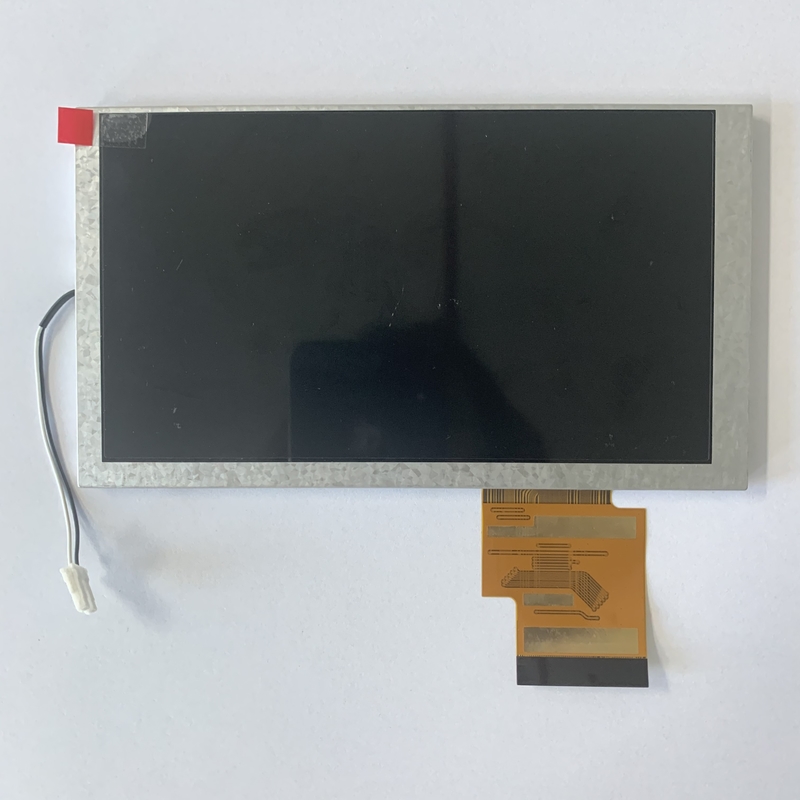

16:9 Screen 6.2 Inch TFT LCD 6 Bits FRC Driver with 1 Channel TTL Interface Display
Product Description
TFT LCD (Thin Film Transistor) refers to a thin film transistor, that is, each liquid crystal pixel is driven by a thin film transistor integrated behind the pixel, so that it can achieve high speed, high brightness, and high contrast. It is currently very popular. One of the best LCD color display devices. Each pixel of the TFT is controlled by the TFT integrated on itself and is an active pixel. Therefore, not only can the speed be greatly improved, but the contrast and brightness can also be greatly improved, while the resolution has also reached a very high level. The table is our 6.2'' TFT LCD Display.
| Item of general information | Contents |
| LCD Type | 6.2 inch(Diagonal) |
| Display Resolution | 800 RGB (H)x480(V) |
| Outline Dimension | 155.20x88.20x5.00(V) mm |
| Display area | 137.52(H)x77.232(V)mm |
| Pixel pitch | 0.1719(H)x0.1609(V) mm |
| Display Mode | Normally white/Transmissive |
| Pixel arrangement | RGB Vertical stripe |
| Certificate | CE, RoHS, SGS |
| Interface | 6 bits + FRC driver with 1 channel TTL interface |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
About TFT LCD Display
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.
The Resistive touch panel senses a touch by measuring where contact is made on the glass. It is independent of temperature and humidity and simple to integrate independent of a separate controller chip.
The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. If you have a need for a bright backlight with lower power drain, transmissive is a good choice for this TFT LCD display.
Product Features
1. Using high transmittance glass substrate: This LCD screen uses a glass substrate with high light transmittance, which makes the screen clear, bright, distinct, and colorful. At the same time, because it is designed with a low-power driver IC circuit, the whole machine consumes less power. The volume is greatly reduced, thereby reducing the user's cost of use.
2. Ultra-thin body: Small size, thin thickness, light weightand and easy to carry and use.
3. Low energy consumption: It saves power and does not generate high temperatures (the main power consumption and heat generation parts are in the backlight tube or LED)
4. Low radiation: It has low working voltage and low radiation, which is healthier and more comfortable.
5. Soft and comfortable screen: The screen will not flicker, which can reduce the damage to the eyes caused by the display and make the eyes less likely to tire.
6. Uniform brightness: The brightness of this LCD screen is very uniform and it can maintain high definition even under strong outdoor light.
Product Applications
The 6.2-inch TFT LCD display is a common LCD display with small size and resolution, and is widely used in various electronic devices and application scenarios. The 6.2-inch LCD Module finds applications in various electronic devices and systems, such as handheld devices, industrial control panels, medical instruments, automotive display, consumer electronics, embedded systems, test and measurement equipments, home appliances and so on.
FAQ
1. Can you provide some samples?
-Yes, we can offer samples for you and you just pay some delivery fee.
2. How can I get samples?
- Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect
3. How can I place an order?
- If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We will talk about more detailed information of your order. Any question, pls do not hestiate to contact us.
4. Can you design the lcd in acccordance with our demand?
-Sure, any requirements, pls do not hestiate to tell me and we have professional team to provide ODM&OEM service.
5. What is your payment method?
- We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shipping as order amount.
