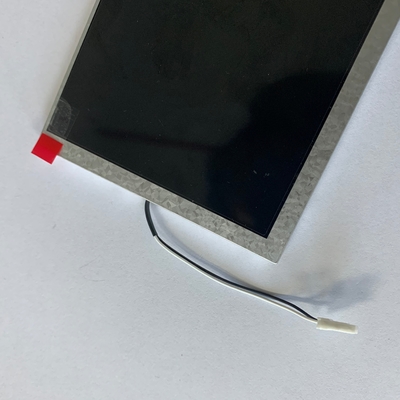

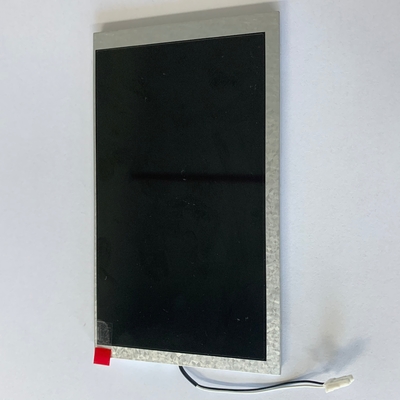

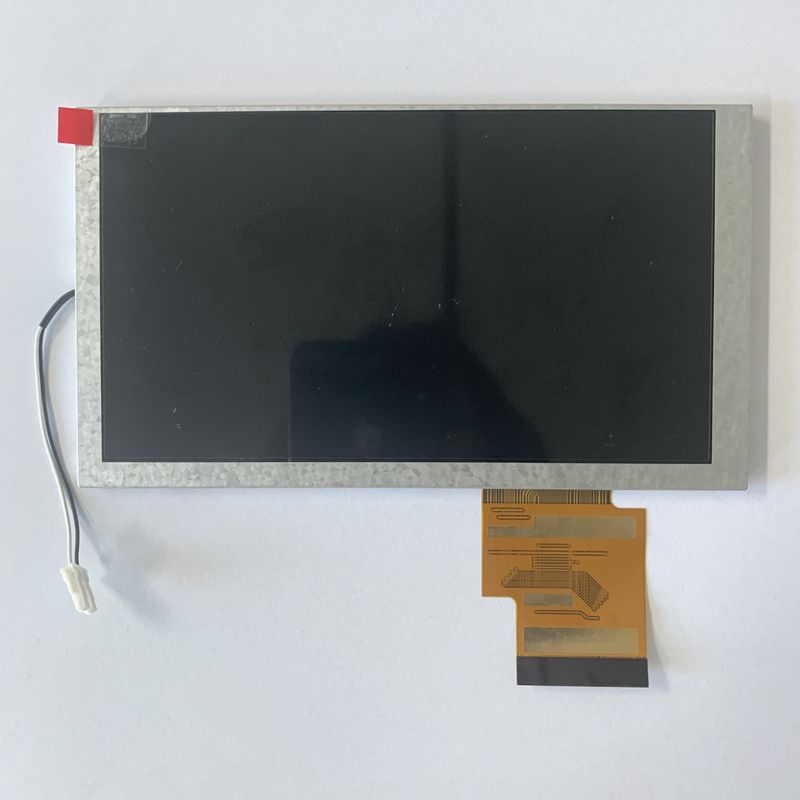

RoHS High Resolution 800 Rgbx480 Pixel 6.2'' TFT LCD Display for Automotive
Product Description
TTFT LCD (Thin Film Transistor) refers to a thin film transistor, that is, each liquid crystal pixel is driven by a thin film transistor integrated behind the pixel, so that it can achieve high speed, high brightness, and high contrast. It is currently very popular. One of the best LCD color display devices. Each pixel of the TFT is controlled by the TFT integrated on itself and is an active pixel. Therefore, not only can the speed be greatly improved, but the contrast and brightness can also be greatly improved, while the resolution has also reached a very high level. The table is our 6.2'' TFT LCD Display.
The data of 6.2'' TFT LCD Display
| Item of general information |
Contents |
| LCD Type |
6.2 inch(Diagonal) |
| Display Resolution |
800 RGB (H)x480(V) |
| Outline Dimension |
155.20x88.20x5.00(V) mm |
| Display area |
137.52(H)x77.232(V)mm |
| Pixel pitch |
0.1719(H)x0.1609(V) mm |
| Display Mode |
Normally white/Transmissive |
| Pixel arrangement |
RGB Vertical stripe |
| Certificate |
CE, RoHS, SGS |
| Interface |
6 bits + FRC driver with 1 channel TTL interface |
| Operating Temp |
-20º C~70ºC |
| Storage Temp |
-30º C~80ºC |
The Drawing of 6.2'' TFT LCD Display
Product Features
1. Using high transmittance glass substrate: This LCD screen uses a glass substrate with high light transmittance, which makes the screen clear, bright, distinct, and colorful. At the same time, because it is designed with a low-power driver IC circuit, the whole machine consumes less power. The volume is greatly reduced, thereby reducing the user's cost of use.
2. Ultra-thin body: Small size, thin thickness, light weightand and easy to carry and use.
3. Low energy consumption: It saves power and does not generate high temperatures (the main power consumption and heat generation parts are in the backlight tube or LED)
4. Low radiation: It has low working voltage and low radiation, which is healthier and more comfortable.
Product Applications
A 6.2-inch TFT LCD can be used in various applications that require a small-sized display with color capabilities.
1. Automotive Displays: In automotive systems, 6.2-inch TFT LCD displays are often used in rearview mirrors with integrated displays, backup cameras, and in-dash infotainment systems.
2. Point-of-Sale (POS) Systems: In retail and hospitality environments, 6.2-inch TFT LCD displays can be found in portable or handheld POS systems. These displays enable the presentation of transaction details, menu options, pricing information, and customer interactions.
3. Portable Gaming Devices: Handheld gaming consoles or portable gaming devices often employ 6.2-inch TFT LCD displays. These displays can show game graphics, characters, menus, and other gaming-related content.
4. Digital Cameras: Some compact digital cameras utilize 6.2-inch TFT LCD displays as the main screen for framing and reviewing photos. The display can show captured images, camera settings, and menus.
Our Advantages
1. We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options.
5. We provide reliable warranty service and the warranty period is one year.
FAQ
1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.
2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.
3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery fee.
4. How long does it take to produce the product?
-It depends on the product you need. Usually 15~30 working days.
5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instruction by Clients → Delivery → Cargo tracking → Receipt of cargo
