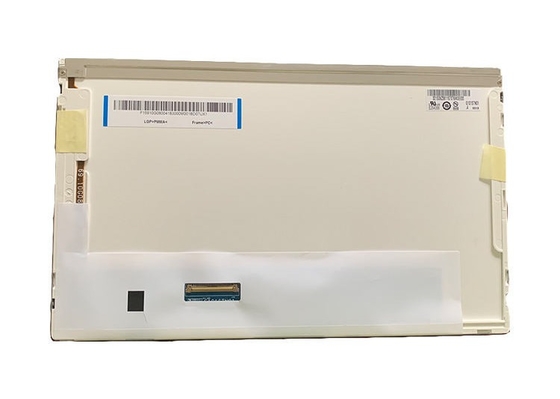

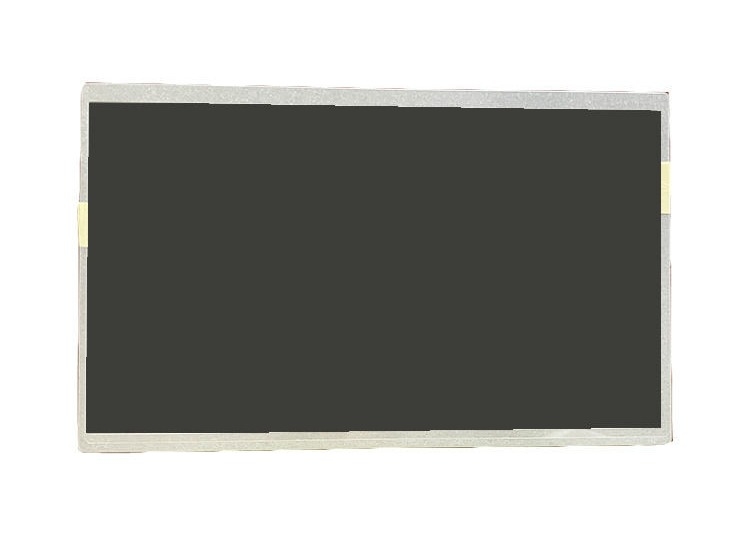

AUO 10.1 Inch 1024x600 TFT LCD Display G101STN01.4 With 40 Pins LVDS Interface

AUO 10.1 Inch 1024x600 TFT LCD Display G101STN01.4 With 40 Pins LVDS Interface
AUO 10.1 Inch 1024x600 TFT LCD Display G101STN01.4 With 40 Pins LVDS Interface AUO 10.1 Inch 1024x600 TFT LCD Display G101STN01.4 With 40 Pins LVDS Interface

Large Image :  AUO 10.1 Inch 1024x600 TFT LCD Display G101STN01.4 With 40 Pins LVDS Interface

Product Details:
Place of Origin: China
Brand Name: AUO
Certification: Rohs, ISO9001
Model Number: G101STN01.4
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15- 20 Work Days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 30K/M
Detailed Product Description
Lcd Size: 10.1 Inch Display Mode: TN , Normally White
Resolution: 1024(RGB)x600 , WSVGA Brightness: 350 Cd/m²
Interface: LVDS (1 Ch, 6/8-bit) , 40 Pins Contrast Ratio: 500:1
Backlight: WLED, 50k Hours, With LED Driver Weight: 180g
High Light:

40 Pins TFT LCD Display

,

LVDS TFT LCD Display

,

G101STN01.4 AUO LCD Screen

AUO 10.1 Inch 1024x600 TFT LCD Display G101STN01.4 With 40 Pins LVDS Interface



Specification Of AUO G101STN01.4 Display



Item
Value
Type
TFT
Display Size
10.1 inch
Place of Origin
Taiwan, China
Brand Name
AUO
Display size
10.1 inch
Resolution
1024(RGB)x600 , WSVGA
Active Area
222.72(H) x 125.28(V)mm
Outline
235(H) x 143(V) x 4.9(T)mm
Pixel Pitch
0.2175(H) x 0.2088(V)mm
Arrangement
R.G.B. Stripe
Treatment
AG, 3H
Nominal Input Voltage VCCS
3.3V
Support color
262K/16.7M , 45% NTSC
View angle
R/L/U/D 70/70/60/60
Brightness
350 cd/m²
Contrast Ratio
500:1
Interface
LVDS (1 ch, 6/8-bit), 40 pins
Backlight
WLED, 50k hours, with LED driver
Operate temperature
-10 ~ +60 (°C)
Storage temperature
-30 ~ +70 (°C)
Response time
7/9ms
Weight
180g
Display mode
TN, Normally white
RoHS Compliance
RoHS Compliance





TFT LCD Display One-stop Solution

(1) LCD panel cutting & etching.We have own cutting and etching factories and cut & etch the LCD panel for big brands.
(2) LCD panel&Driver IC. We are the direct distributor, we can guarantee supply.
(3) LCD module. Owning factories to do LCD module assembly, ISO9001, ISO14001 and TS16949 certificated.
(4) LCD module+Capacitive touch panel.we customize different capacitive touch panel base on customer’s request, 100% OEM available.
(5) LCD module+controller board. We have our own controller board company with 30 engineers, to provide different kinds of board solutions.
(6) Complete solution. We can also customize plastic frame to contain our display.

AUO 10.1 Inch 1024x600 TFT LCD Display G101STN01.4 With 40 Pins LVDS Interface 0

10.1 Inch G101STN01.4 TFT LCD Service Advantages

1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working.



2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3. Payment Terms: T/T, Western Union,L/C, PayPal

4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5. Service: Best after-sales service to ensure satisfaction from customers.

6. Warranty: Usually, product warranty for one year.

AUO 10.1 Inch 1024x600 TFT LCD Display G101STN01.4 With 40 Pins LVDS Interface 1





About US

Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display.

More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.

Our products have passed international quality certificates, including CE, FCC & RoHS. With high quality and competitive prices. We are looking forward to working together with you and establish long term business.

AUO 10.1 Inch 1024x600 TFT LCD Display G101STN01.4 With 40 Pins LVDS Interface 2

G101STN01.4 AUO Display FAQ



Q: Can you provide drawings and related procedures?

A: We can provide drawings and procedures for customers to confirm.


Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.



Q: How long is the warranty and service of the product?

A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
