Product Details:
Payment & Shipping Terms:
|
| Lcd Size: | 7.0 Inch | Display Mode: | TN , Normally White |
|---|---|---|---|
| Resolution: | 800X480 | Brightness: | 400 Cd/ M² |
| Interface: | LVDS(1ch, 6/ 8-bit) , 20 Pins | Contrast Ratio: | 750:1 |
| Backlight: | WLED , 50K Hours , With LED Driver | Weight: | 175g |
| High Light: | 7 Inch AUO LCD Screen,TFT AUO LCD Screen,G070VW01 V0 |
||

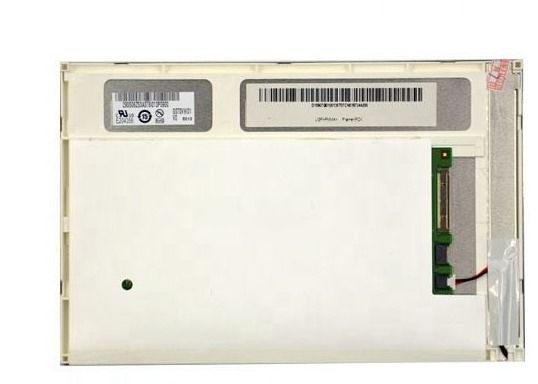

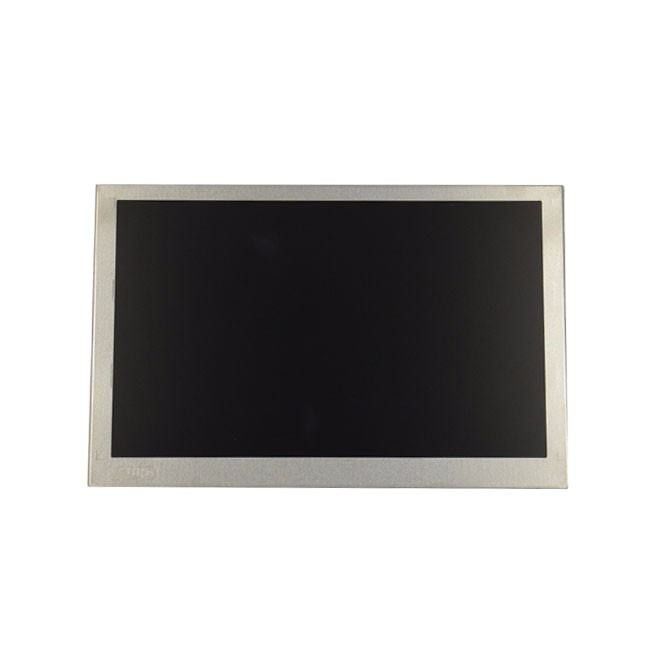

Industrial AUO 7 Inch TFT G070VW01 V0 With 7" 800x480 And Optional Touch Panel
Specification Of AUO 7 Inch display
|
Item
|
Value
|
|
Type
|
TFT
|
|
Display Size
|
7
|
|
Brand Name
|
AUO
|
|
Size
|
7 inch
|
|
Resolution
|
800(RGB)x480 , WVGA
|
|
Active Area
|
152.40(H) x 91.44(V) mm
|
|
Outline
|
170.0(W) x 111.0(H) x 7.5(D) mm (typ.)
|
|
Pixel Pitch
|
0.1905 x 0.1905 mm
|
|
Arrangement
|
R.G.B. Vertical Stripe
|
|
Treatment
|
Anti-glare, Hardness 3H
|
|
Nominal Input Voltage VDD
|
+3.3 V
|
|
Vie angle
|
R/L/U/D 80/80/80/80
|
|
Brightness
|
400 cd/m²
|
|
Contrast Ratio
|
750:1
|
|
Electrical Interface
|
1 channel LVDS
|
|
Interface
|
LVDS(1ch, 6/8-bit) , 20 pins
|
|
Backlight
|
WLED , 50K hours , with LED driver
|
|
Operating Temp.
|
-30 ~ +85 (℃)
|
|
Storage Temp.
|
-30 ~ +85 (℃)
|
|
Response Time
|
20/10ms
|
|
Weight
|
175g
|
|
Display mode
|
TN , Normally white
|
|
RoHS Compliance
|
RoHS Compliance
|
TFT LCD Display One-stop Solution
(1) LCD panel cutting & etching.We have own cutting and etching factories and cut & etch the LCD panel for big brands.
(2) LCD panel&Driver IC. We are the direct distributor, we can guarantee supply.
(3) LCD module. Owning factories to do LCD module assembly, ISO9001, ISO14001 and TS16949 certificated.
(4) LCD module+Capacitive touch panel.we customize different capacitive touch panel base on customer’s request, 100% OEM available.
(5) LCD module+controller board. We have our own controller board company with 30 engineers, to provide different kinds of board solutions.
(6) Complete solution. We can also customize plastic frame to contain our display.
7 Inch G070VW01 V0 TFT LCD Service Advantages
1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Payment Terms: T/T, Western Union,L/C, PayPal
4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Service: Best after-sales service to ensure satisfaction from customers.
6. Warranty: Usually, product warranty for one year.
About US
Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display.
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.
Our products have passed international quality certificates, including CE, FCC & RoHS. With high quality and competitive prices. We are looking forward to working together with you and establish long term business.
G070VW01 V0 FAQ
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
