Product Details:
Payment & Shipping Terms:
|
| Lcd Size: | 10.2 Inch | Driver Element: | A-Si TFT Active Matrix |
|---|---|---|---|
| Resolution: | 800 X 3( RGB ) X 480 | Display Mode: | Normally White, Transmissive |
| DOT Pitch: | 0.0925(W) × 0.276(H) Mm | Active Area: | 222.0(W) × 132.48(H) Mm |
| Module Size: | 235.0(W) × 145.8(H) ×6.1(D) Mm | Color Arrangement: | RGB-stripe |
| High Light: | 60 Pin RGB Innolux LCD display,AT102TN03V. 8 TFT LCD Module,Innolux RGB TFT LCD Module |
||
10.2 Inch Innolux At102tn03V. 8 Original At102tn03 V. 9 60 Pin RGB 800X480 800X600 Dots

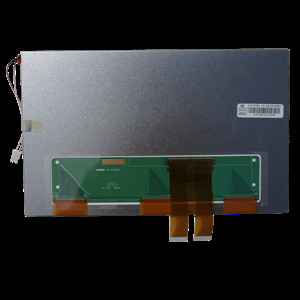

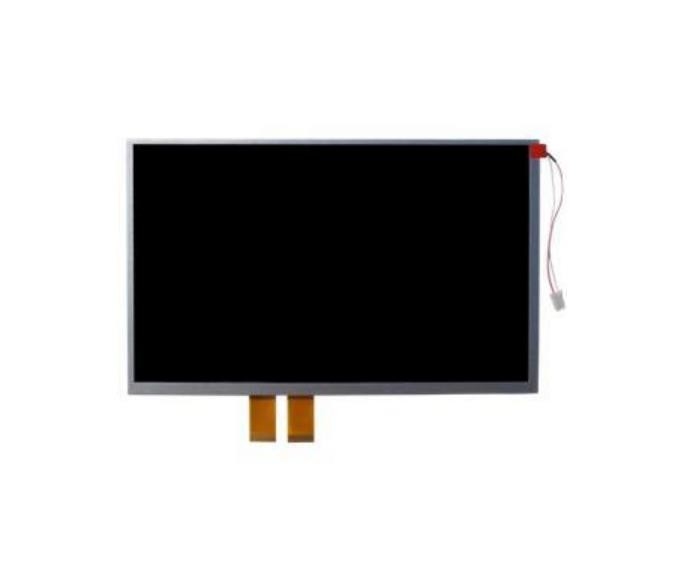

10.2 Inch Innolux At102tn03V. 8 TFT LCD Display Description
| Item | Description |
| Model Name | At102tn03V. 8 |
| Screen Size | 10.2" |
| Surface Treatment | Anti- Glare |
| Color arrangement | RGB- stripe |
| Interface | Digital |
| Backlight Power consumption | 1.86W (Typ.) |
| Panel Power consumption | 0.25W(Typ.) |
| Operation Temperature( ºC) | -20º C~70ºC |
| Storage Temperature (ºC) | -30º C~80ºC |
TFT LCD Display One-stop Solution
(1) LCD panel cutting & etching.We have own cutting and etching factories and cut & etch the LCD panel for big brands.
(2) LCD panel&Driver IC. We are the direct distributor, we can guarantee supply.
(3) LCD module. Owning factories to do LCD module assembly, ISO9001, ISO14001 and TS16949 certificated.
(4) LCD module+Capacitive touch panel.we customize different capacitive touch panel base on customer’s request, 100% OEM available.
(5) LCD module+controller board. We have our own controller board company with 30 engineers, to provide different kinds of board solutions.
(6) Complete solution. We can also customize plastic frame to contain our display.
10.2 inch 800x480 Dots TFT LCD Service Advantages
1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Payment Terms: T/T, Western Union,L/C, PayPal
4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Service: Best after-sales service to ensure satisfaction from customers.
6. Warranty: Usually, product warranty for one year.
Innoux TFT LCD Display FAQ
Q: Is this Innolux original At102tn03V. 8 At102tn03V. 9?
A: Yes, it is 100% original Innolux lcd display.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
