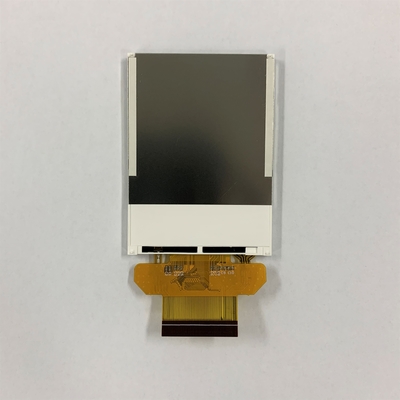

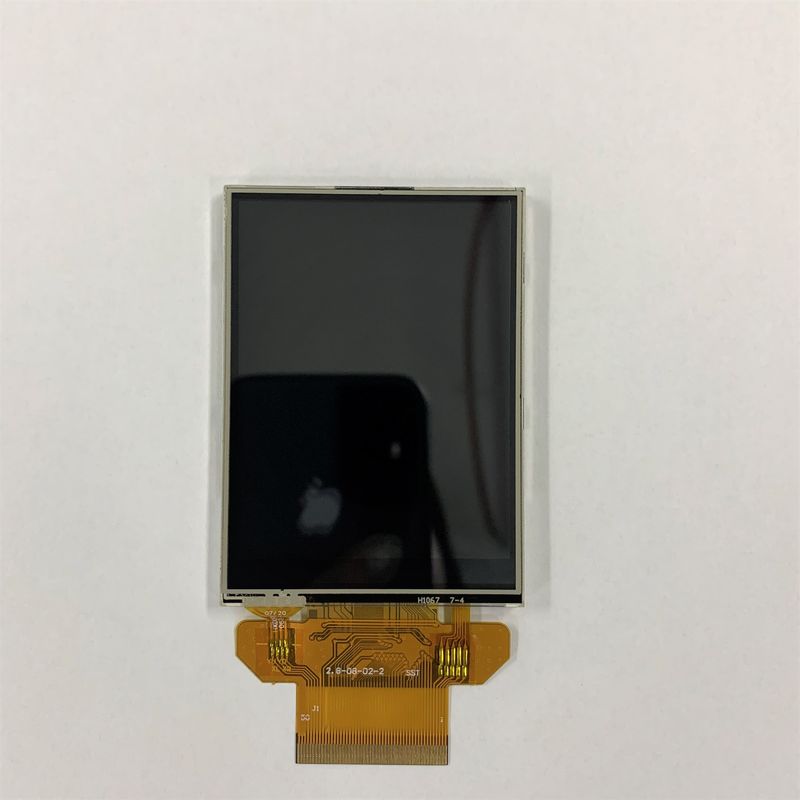

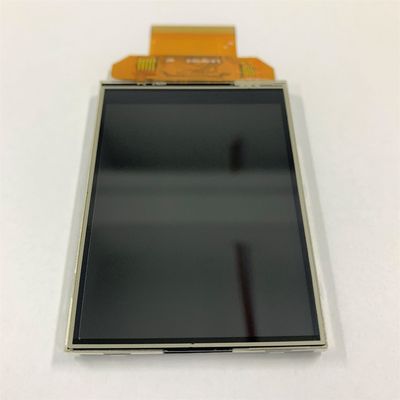

2.8 Inch TFT LCD Module 320*240 SPI/RGB/MCU Interface With RTP

2.8 inch TFT LCD Module 320*240 SPI/RGB/MCU Interface with RTP

Quick Detail of 2.8inch TFT LCD Module
RYTPQ28NN08-02 is TFT LCD module is a 2.8 inch diagonal size, 240xRGBx320, full color TFT LCD display. This module is built in with ILI9341V IC; it supports 8/ 16bit 8080-series Parallel MCU Interface. WF28E model is having module dimension of 50.0 x 69.2 mm and Active area size of 43.2 x 57.6 mm; it integrated ILI9341V controller on module, logic supply voltage range from 2.5V to 3.3V.

RYTPQ28NN08-02 is portrait mode LCD module, if you would like to use it as landscape mode, please contact with us for more technical support. This 2.8” TFT LCD module is featured with brightness up to 350 cd/m2(typical value), it can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. This 2.8" TFT LCD Module 6:00 o'clock viewing direction works well for devices that is easy to read above eye level without fading, such as signal analyzers or bench top laboratory equipment, handhold microscope and other handhold devices.

Specification of 2.8inch TFT Display

About 2.8inch TFT LCD Display

Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.

Features
Customizable FPC cables, LED backlights, and bezels
Capacitive and Resistive options available for every display
Most products are kept in stock and can ship same day
Multiple interfaces available

Broad selection of off the shelf products
Sunlight readable options available

Packing & shipping & delivery about 2.8inch TFT display

Packaging Details:

All the products are packed in right way to keep it safe.

For small sizes of products we use tray + carton,

For bigger sizes we use foam slot + carton.

we also design packages according to customers' requirements

Shipping Details:

For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

For large quantity orders: we ship by buyer's cargo agent in China,

we can also ship by air or sea transportation by our cargo agent.

Delivery Details:

Ready-made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks


FAQ about TFT display

Q1. Can I have a sample order of before formal order?
A: Yes, sample order is always welcome for new projects or replacement of running projects. We have stock of many standard models of TFT LCD modules and Touch screens from 0.96inch to 13.3inch , which means delivery is able to be made the same day as order.

Q2. What is the lead time for Sample order and Mass Production order?
A:
--For Royal Display standard products, the lead time for samples is usually 1-7 days, for mass production it could be as fast as 10 days.

--For Customized products,

We are able to get new FPC ready in 7days, new Backlight in 15days, and new Capacitive touch panel or Resistive touch panel in 18days.

Mass production of special products could be as fast as 3weeks.

--In summary, based on our years of big output, we have been keeping good relationship with LCD panel, IC and other material suppliers, we had a steady supply even when there was heavy shortage of materials.

Q3. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples for approval after reliability test and aging test---We make modification if necessary---We do small quantity of trial order (if required)---We do mass production.
