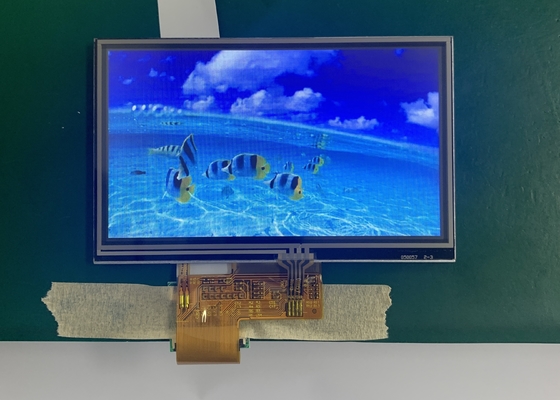

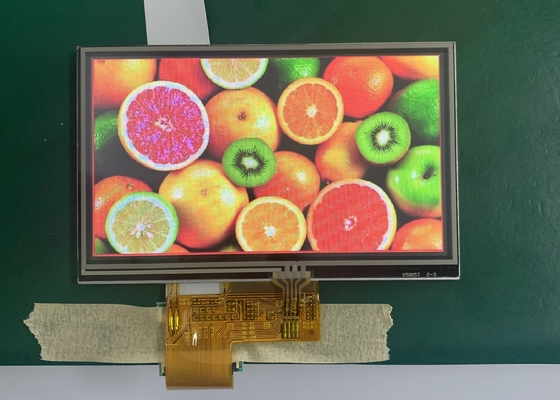

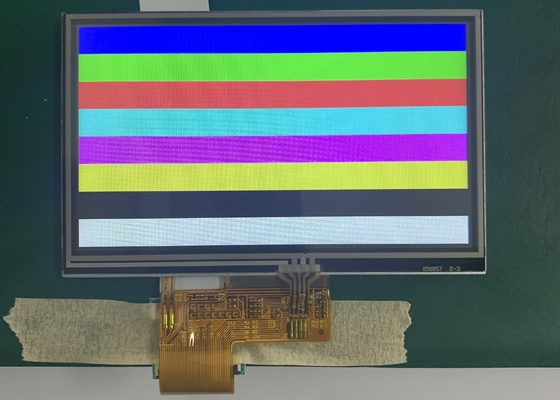

RGB Interface TFT LCD Module 5inch 480×272 IPS Color Display
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | RoHS |
| Model Number: | RYT050TFT-H40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 64pcs/carton |
| Delivery Time: | 7~10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300,000 Piece/Pieces per Year |
|
Detail Information |
|||
| Product Name: | 5inch TFT Display | Display Type: | Color LCD Display |
|---|---|---|---|
| Screen Size: | 5inch | Resolution: | 480X3(RGB)X272 |
| Outline (mm): | 120.7(W)X75.80(H)X3.10(D) | Active Area(mm): | 110.88(W)X62.83(H) |
| Interface: | 40pin RGB | Touch Panel: | Without Touch Panel |
| Highlight: | RGB Interface TFT LCD Module,5inch 480×272 TFT LCD Module,40pin RGB TFT LCD Module |
||
Product Description
RGB Interface 5inch 480×272 IPS Color TFT Display TFT LCD Module
Quick Detail of 5inch TFT display module
1. It is a 5 inch Touch Screen LCD Display with resolution 480*272 and Resistive Touch Panel.
2. It supports RGB interface including typical brightness 300 cd/m2.
3. This TFT LCD module can be operating at temperatures from -20ºC to +70ºC.
4. Its storage temperatures range from -30ºC to +80ºC.
Specification of 5inch TFT LCD Module
| Model NO.: | RYT050TFT-H40 |
| Screen Size: | 5.0" |
| Display type | TN |
| Resolution: | 480*272 |
| Viewing direction: | 12:00 Clock |
| Module size(W*H*T): | 120.7*75.8*4.2mm |
| Active area (W*H): | 110.88*62.83mm |
| Brightness: | 300cd/m² |
| Backlight: |
2S6P=12 WLED, If=400mA, Vf=19.2V |
| Contrast | 500 |
| Interface: | RGB |
| Pin NO: | 40Pins |
| Pin pitch | 0.5mm |
| Connecting type | FPC Connector |
| Operating Temperature: | -20 ~ +70ºC |
| Storage Temperature | -30 ~ +80ºC |
Contour Drawing of 480*272 5inch TFT LCD display
Application of TFT Display
| Telecommunication Devices | Telephone, Interphone, Smart Watch, Tablet PC, PDA |
| Consumer Products | Camera, DVD Player, Cell Phone, Game Player, Digital Photo Frame, E-Book Reader, Mp3 Player, MP4 PMP, Netbook PC |
| Technical Equipment | Elevator Controller, Industrial Machine, Security Monitor, POS |
| Office Automation | Printer, Scanner, Fax Machine, Desktop Monitor, Desktop Monitor |
| Home Appliances | Air-condition Display, Refrigerator, Video Doorbell, Smart Machine |
| Automobile Display | GPS, Protable Navigation, Video Player, Speedometer, Recorder |
| IT Products | Digital Video, Media Player, Advertising Machine |
| Medical Equipment | Ultrasound Machine, Medial Monitor, Medical Imaging, Healthcare |
Advantages of TFT LCD display module
1. The display quality of the TFT display is high
Because every point of the TFT LCD Screen keeps the color and brightness after receiving the signal, and emits constant light, unlike the cathoderay tube display (CRT) that needs to constantly refresh the bright spot. Therefore, the LCD panel TFT has high image quality and will never flicker, minimizing eye fatigue.
2. The power consumption of the TFT display is small
The traditional display screen is composed of many circuits. When these circuits drive the cathode-ray picture tube to work, they need to consume a lot of power, and as the volume increases, the power consumed by the internal circuit will definitely increase. In contrast, the power consumption of the TFT liquid crystal display screen is mainly consumed on its internal electrodes and driver IC, so the power consumption is much smaller than that of traditional displays.
3. The picture effect of the TFT display is good
Compared with traditional display screens, the LCD panel TFT uses a purely flat glass plate from the beginning, and the display effect is flat and right-angled, giving people a refreshing feeling. Moreover, LCD monitors are easier to achieve high resolution on small screens. For example, a 17-inch LCD monitor can achieve a resolution of 1280×1024, while a 18-inch CRT color display usually uses a resolution of 1280×1024 or more which is not completely satisfactory.
