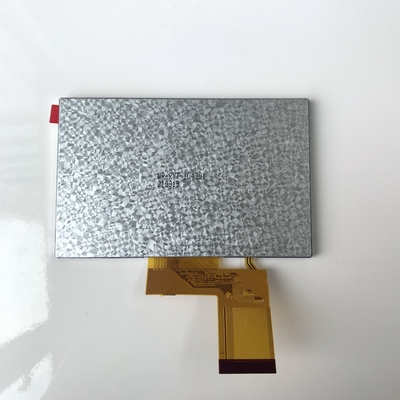

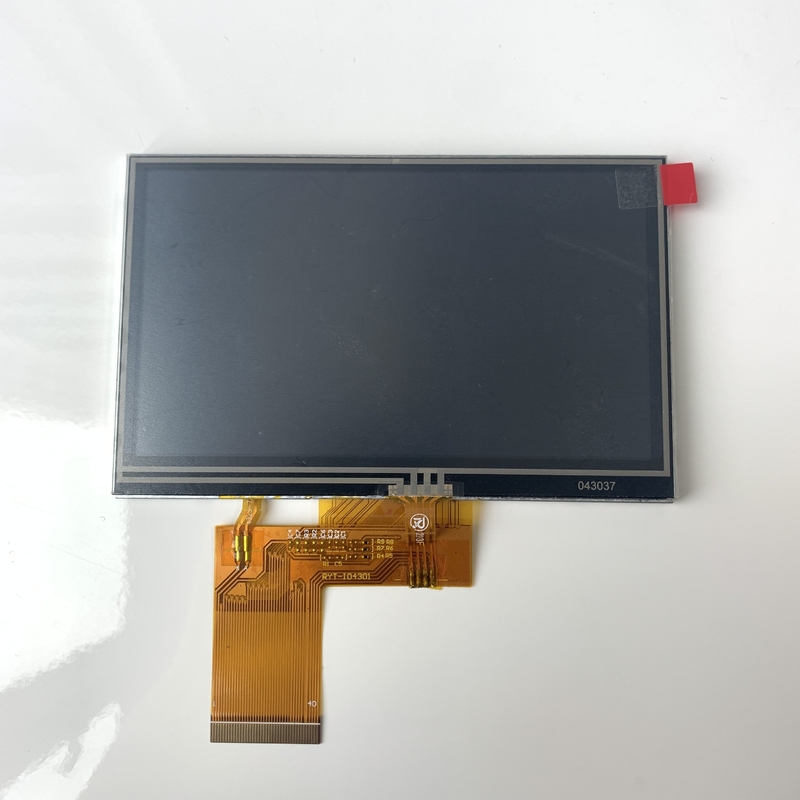

4.3 Inch TFT LCD Display IPS 480x272 Resolution With Resistive Touch Screen

4.3 Inch TFT LCD Display IPS 480x272 Resolution With Resistive Touch Screen

Quick Detail of 4.3'' TFT display module

1. Brand Name: Royal Display
2. Model Number: RYT043WV05-T
3. Type: TFT Display Module
4. Resolution: 480*272
5. Screen Size: 4.3 Inch
6. Display Model: IPS
7. Interface: RGB
8. Viewing Angle: 12:00
9. Driver IC: ST7282
10. Active Area: 95.04x53.86 mm
11. Outside Dimensions: 105.5mm(W)*67.2mm(H)*3.0mm(T)

12. Operating temperature: -20~+70°C
13. Storage temperature: -20~+80°C

Specification of 4.3'' TFT display with Resistive Touch Panel

Contour Drawing of 4.3'' TFT LCD module

Application of TFT Display

Advantages of TFT LCD display module

1. The display quality of the TFT display is high
Because every point of the TFT LCD Screen keeps the color and brightness after receiving the signal, and emits constant light, unlike the cathoderay tube display (CRT) that needs to constantly refresh the bright spot. Therefore, the LCD panel TFT has high image quality and will never flicker, minimizing eye fatigue.

2. The power consumption of the TFT display is small
The traditional display screen is composed of many circuits. When these circuits drive the cathode-ray picture tube to work, they need to consume a lot of power, and as the volume increases, the power consumed by the internal circuit will definitely increase. In contrast, the power consumption of the TFT liquid crystal display screen is mainly consumed on its internal electrodes and driver IC, so the power consumption is much smaller than that of traditional displays.

3. The picture effect of the TFT display is good

Compared with traditional display screens, the LCD panel TFT uses a purely flat glass plate from the beginning, and the display effect is flat and right-angled, giving people a refreshing feeling. Moreover, LCD monitors are easier to achieve high resolution on small screens. For example, a 17-inch LCD monitor can achieve a resolution of 1280×1024, while a 18-inch CRT color display usually uses a resolution of 1280×1024 or more which is not completely satisfactory.
