Product Details:
Payment & Shipping Terms:
|
| Display Type LED: | TFT | Resolution: | 480X3(RGB)X272 |
|---|---|---|---|
| Module Size(mm): | 105.5 X 67.2 X 4.05 | Active Area(mm): | 95.04 X 53.856 |
| Display Mode: | Normally White, Transmissive | Interface: | 40 Pin FPC, Parallel 24bit RGB |
| High Light: | 4.3 inch TFT LCD module,Capacitive Touch TFT LCD module,40 pin FPC TFT LCD Display |
||
PRODUCT DESCRIPITION

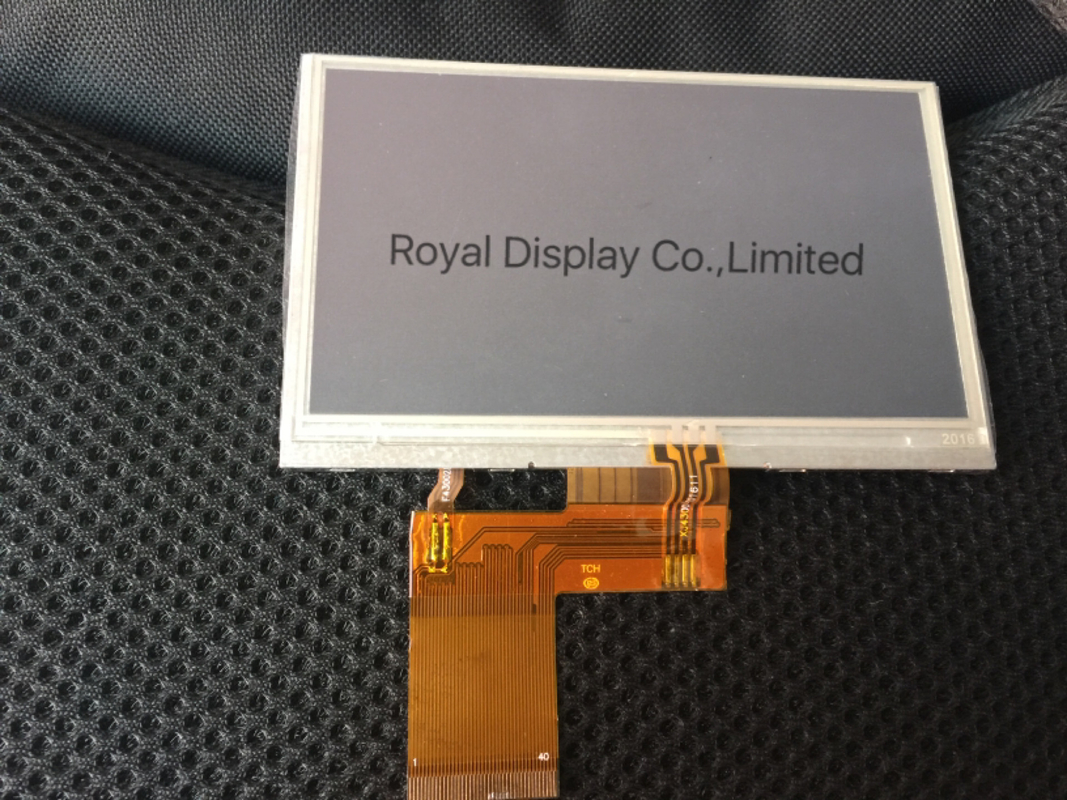

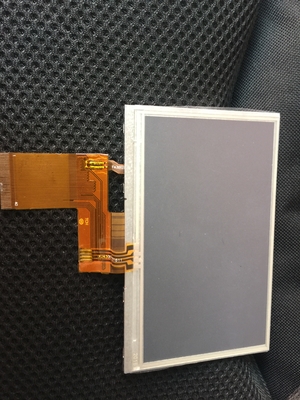

* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC and backlight unit.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* It's Standard and Ready-made TFT LCD Module.
* Experienced Team for Your Custom Solution.
* RoHS compliant.
| Model NO.: | RYTF043HV175A0 |
| Screen Size: | 4.3" |
| Display type: | TN |
| Resolution: | 480*272 |
| Viewing direction: | 12 o'clock |
| Module size(W*H*T): | 105.5*67.2*3.0mm |
| Active area (W*H): | 95.04*53.86mm |
| Brightness: | 800cd/m² |
| Backlight: | 10S1P=10 WLED If=20mA, Vf =32.0V |
| Controller: | HX8257A01-C or equivalent |
| Contrast: | 500 |
| Interface: | RGB |
| Pin NO: | 40Pin |
| Pin pitch | 0.5mm |
| Connecting type | FPC Connector |
| Operating Temperature: | -20 ~ +70ºC |
| Storage Temperature | -30 ~ +80ºC |
OUR ADVANTAGE
| Rich experience | Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client |
| Advanced Equipment | Full automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine advance production equipment ensure product quality |
| Quality Assurance | Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment |
| Fast response | Quickly realize your customized ideas, and have a sample ready in short time |
| Low MOQ | Depends on product |
| Stable supply | 1~10 years supply period |
| Extensive range | Providing complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen |
| Large production capacity | Operation capacity 2KK monthly |
| Quality guarantee | RoHS compliant |
| Management | ISO 9001:2008, ISO 14001:2004 |
PACKING & SHIPPING & DELIVERY
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
FAQ
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.
Q:What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.
Q:What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
Q:How long is the warranty and service of the product?
A:Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
