Product Details:
Payment & Shipping Terms:
|
| Display Type: | TFT LCD | Resolution: | 320 X 3(RGB) X 240 |
|---|---|---|---|
| Display Mode: | Normally White/Transmissive | Viewing Angle: | 12 O'clock |
| Interface: | TN | Outline Size (mm): | 50.2(W) X 69.3 (H) X 4.0 (D) |
| Active Area(mm): | 43.2(H) X57.6 (V) | Display Color: | 262K |
| Driver IC: | ILI9341V | Application: | Industrial Application,Multi-Touch Query Machine,Desktop Monitor |
| High Light: | 2.8inch TFT Display Module,TN TFT Display Module,Resistive Touch TFT Display Module |
||
Product Specification:

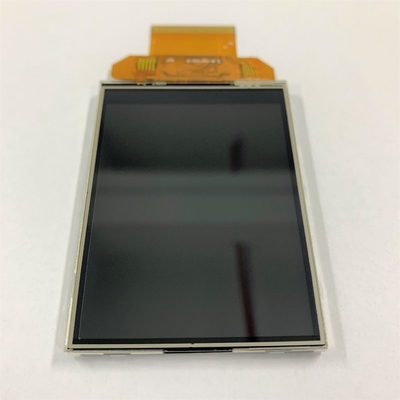

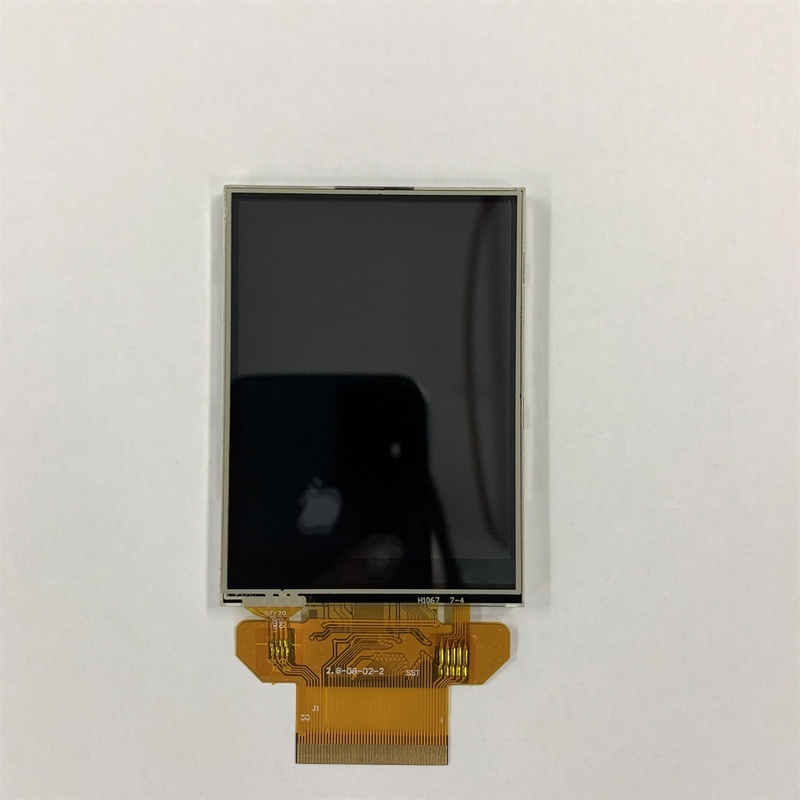

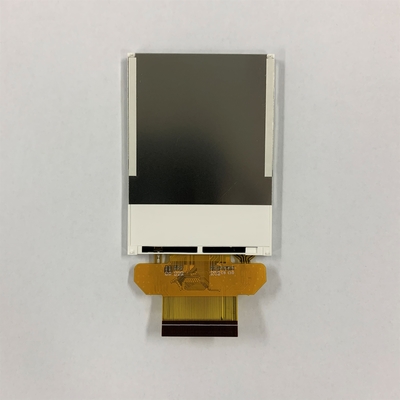

* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC and backlight unit.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* It's Standard and Ready-made TFT LCD Module.
* Experienced Team for Your Custom Solution.
* RoHS compliant.
| Model NO.: |
RYTPQ28NN08-02
|
| Screen Size: | 2.8" |
| Display type | TN |
| Resolution: | 240*320 |
| Viewing direction: | 12 o'clock |
| Module size(W*H*T): |
50.2(W) x 69.3 (H) x 4.0 (D)
|
| Active area (W*H): |
43.2(H) x57.6 (V)
|
| Controller: | ILI9341V |
| Interface: | TN |
| Connecting type | FPC Soldering type |
| Operating Temperature | -20 ~ +70ºC |
| Storage Temperature | -30 ~ +80ºC |
ABOUT TFT LCD DISPLAY
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.
Features
Customizable FPC cables, LED backlights, and bezels
Capacitive and Resistive options available for every display
Most products are kept in stock and can ship same day
Multiple interfaces available
Broad selection of off the shelf products
Sunlight readable options available
PACKING & SHIPPING & DELIVERY
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
FAQ
Q1. Can I have a sample order of before formal order?
A: Yes, sample order is always welcome for new projects or replacement of running projects. We have stock of many standard models of TFT LCD modules and Touch screens from 0.96inch to 13.3inch , which means delivery is able to be made the same day as order.
Q2. What is the lead time for Sample order and Mass Production order?
A:
--For Royal Display standard products, the lead time for samples is usually 1-7 days, for mass production it could be as fast as 10 days.
--For Customized products,
We are able to get new FPC ready in 7days, new Backlight in 15days, and new Capacitive touch panel or Resistive touch panel in 18days.
Mass production of special products could be as fast as 3weeks.
--In summary, based on our years of big output, we have been keeping good relationship with LCD panel, IC and other material suppliers, we had a steady supply even when there was heavy shortage of materials.
Q3. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples for approval after reliability test and aging test---We make modification if necessary---We do small quantity of trial order (if required)---We do mass production.
