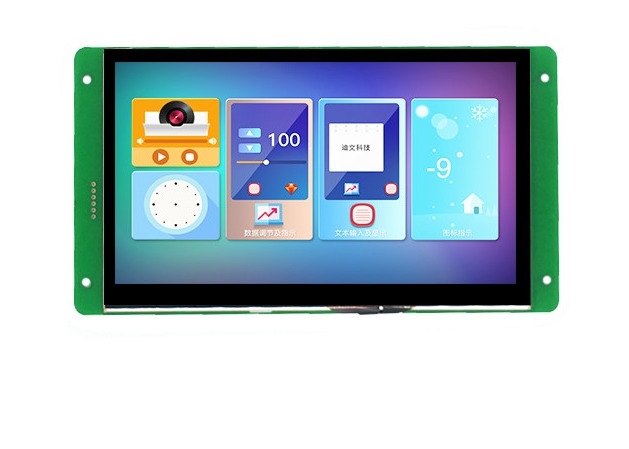

480x272dots Ultra TFT LCD Display 4.3 Inch With Touch Screen Panel

480x272dots Ultra TFT LCD Display 4.3 Inch With Touch Screen Panel
480x272dots Ultra TFT LCD Display 4.3 Inch With Touch Screen Panel 480x272dots Ultra TFT LCD Display 4.3 Inch With Touch Screen Panel

Large Image :  480x272dots Ultra TFT LCD Display 4.3 Inch With Touch Screen Panel

Product Details:
Place of Origin: China
Brand Name: Roya Display
Certification: Rohs,ISO9001
Model Number: RYT0430UL-001WS
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 Work Days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 300K/M
Detailed Product Description
LCD Size: 4.3inch TFT Dots: 480x272
Viewing Direction: 12 O'clock Module Size(mm): 140.7(W)X93.83(H)X4.65(D)
Active Area(mm): 95.04(W)X53.86(H) Interface: 24bit-RGB
High Light:

480x272dots TFT LCD Display

,

24bit RGB TFT LCD Display

,

Touch Screen 4.3 inch tft display

Custom 4.3 Inch 480x272dts Ultra Tft Lcd Display With Touch Screen Panel



Product Description



Display Parameters

Backlight Type
LED
Brightness
300cd/m2
(Brightness can be adjustable in 100 levels)
Contrast
500:1
Backlight life
20,000 hours
Viewing Angle
70°/70°/50°/70°(L/R/U/D)
TFT Panel
A Class Industry Panel
Touch Screen
4 Wire Resistance Touch /Capacitive Touch / Without Touch Screen
Screen Mode:
Digital


Working Principle

The Intelligent TFT-LCD Module communicates with the Customer’s MCU / CPU / FPGA / PLC via Commands (JSON command and HEX Code), and then the MCU would control its connected equipment to work according to the received
commands.
480x272dots Ultra TFT LCD Display 4.3 Inch With Touch Screen Panel 0



Application

480x272dots Ultra TFT LCD Display 4.3 Inch With Touch Screen Panel 1



Our Advantages



(1) High-quality raw material supplier :
after-sales guarantee and long-term stable supplier, LCD panel and Driver IC made of A-regulated raw materials.


(2) Other materials:
such as polarizers, backlight film materials, etc. We also use brand new A-regulated raw materials


(3) Strict quality control:
Through rate up to 98.5%,Customer online defect rate as low as 0.3%.
Inspection is done in FOG==>LCM==>LCM+RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC.

A product must pass 5 tests before shipment: incoming inspection, 100% online inspection, QC on-site inspection, aging test and OQC inspection, etc.

480x272dots Ultra TFT LCD Display 4.3 Inch With Touch Screen Panel 2

Service


1. 1-YEAR Warranty Period
Replace by a brand-new Unconditionally

2. customizable service.
a. Customize TFT-LCD Module according to the customer’s requirement.
b. Develop the customization function.
c. Optional resolution
d. Optional luminance


FAQ



Q: Can you customize the product? what do you need?

A: The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.



Q: Can you provide drawings and related procedures?

A: We can provide drawings and procedures for customers to confirm.


Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.



Q: How long is the warranty and service of the product?

A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.

480x272dots Ultra TFT LCD Display 4.3 Inch With Touch Screen Panel 3
