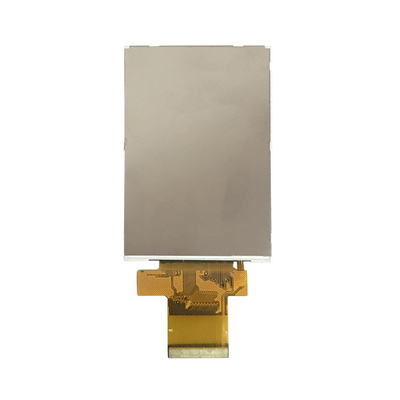

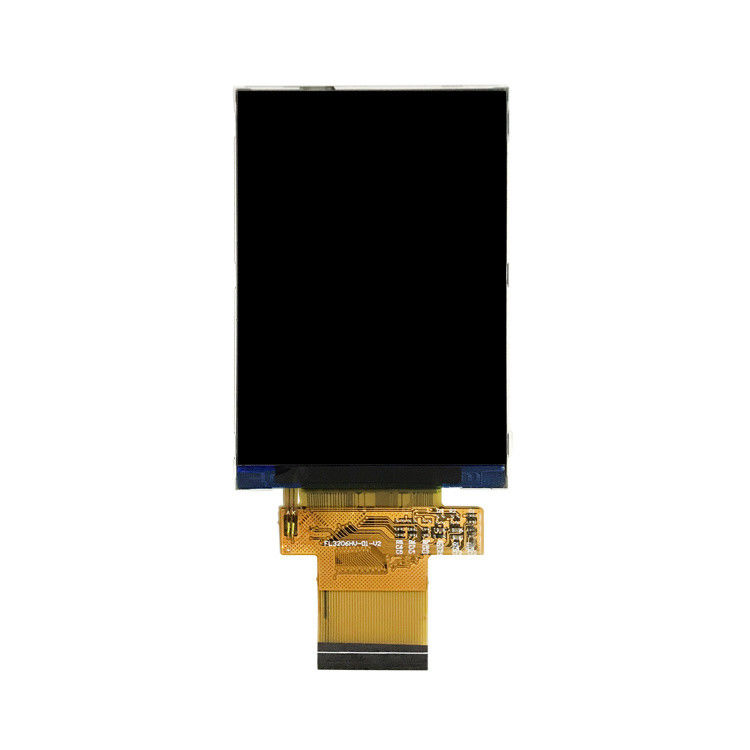

3.2" 240x320 Dots 8080 16 Bit Interface TFT LCD Display With Optional Touch Panel

3.2" 240x320 Dots 8080 16 Bit Interface TFT LCD Display With Optional Touch Panel
3.2" 240x320 Dots 8080 16 Bit Interface TFT LCD Display With Optional Touch Panel 3.2" 240x320 Dots 8080 16 Bit Interface TFT LCD Display With Optional Touch Panel

Large Image :  3.2" 240x320 Dots 8080 16 Bit Interface TFT LCD Display With Optional Touch Panel

Product Details:
Place of Origin: China
Brand Name: Roya Display
Certification: Rohs,ISO9001
Model Number: RYTQ32NN01-01
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 Work Days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 300K/M
Detailed Product Description
LCD Type: TFT LCD Size: 3.2'' TFT
Display Type: 262K TFT Viewing Direction: 12 O'clock
Outline Dimension: 56.64X79.3X2.45mm Viewing Area: 48.6X64.8mm
Driver IC: Ili9341 Operation Voltage: 2.80-3.30V
High Light:

8080 16 Bit Interface LCD Display

,

240x320 Dots TFT LCD Display

,

3.2" TFT LCD Module

3.2inch TFT 240*320dots 8080 16-Bit Interface TFT with Optional Touch Panel



Product Description

Item Description
Product Name 3.2'' TFT 240*320 dots lcd display
LCD type TFT
Model No. RYTQ32NN01-01
Outline Dimension (mm) 56.64X79.3X2.45mm
Viewing Area (mm) 48.6X64.8mm
Viewing Direction 12 O' clock
Driver IC ILI9341
Operating Temp -20º C~70ºC
Storage Temp -30º C~80º C

3.2" 240x320 Dots 8080 16 Bit Interface TFT LCD Display With Optional Touch Panel 0



Application



3.2" 240x320 Dots 8080 16 Bit Interface TFT LCD Display With Optional Touch Panel 1

One-stop Solution

(1) LCD panel cutting & etching.We have own cutting and etching factories and cut & etch the LCD panel for big brands.

(2) LCD panel&Driver IC. We are the direct distributor, we can guarantee supply.

(3) LCD module. Owning factories to do LCD module assembly, ISO9001, ISO14001 and TS16949 certificated.

(4) LCD module+Capacitive touch panel.we customize different capacitive touch panel base on customer’s request, 100% OEM available.

(5) Complete solution. We can also customize plastic frame to contain our display.

3.2" 240x320 Dots 8080 16 Bit Interface TFT LCD Display With Optional Touch Panel 2

Our advantages

(1) High-quality raw material supplier :
after-sales guarantee and long-term stable supplier, LCD panel and Driver IC made of A-regulated raw materials.
(2) Other materials:
such as polarizers, backlight film materials, etc. We also use brand new A-regulated raw materials
(3) Strict quality control:
Through rate up to 98.5%,Customer online defect rate as low as 0.3%.
Inspection is done in FOG==>LCM==>LCM+RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC.
A product must pass 5 tests before shipment: incoming inspection, 100% online inspection, QC on-site inspection, aging test and OQC inspection, etc.

3.2" 240x320 Dots 8080 16 Bit Interface TFT LCD Display With Optional Touch Panel 3

FAQ

Q: Can you customize the product? what do you need?

A: The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.



Q: Can you provide drawings and related procedures?

A: We can provide drawings and procedures for customers to confirm.


Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.



Q: How long is the warranty and service of the product?

A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.

3.2" 240x320 Dots 8080 16 Bit Interface TFT LCD Display With Optional Touch Panel 4
