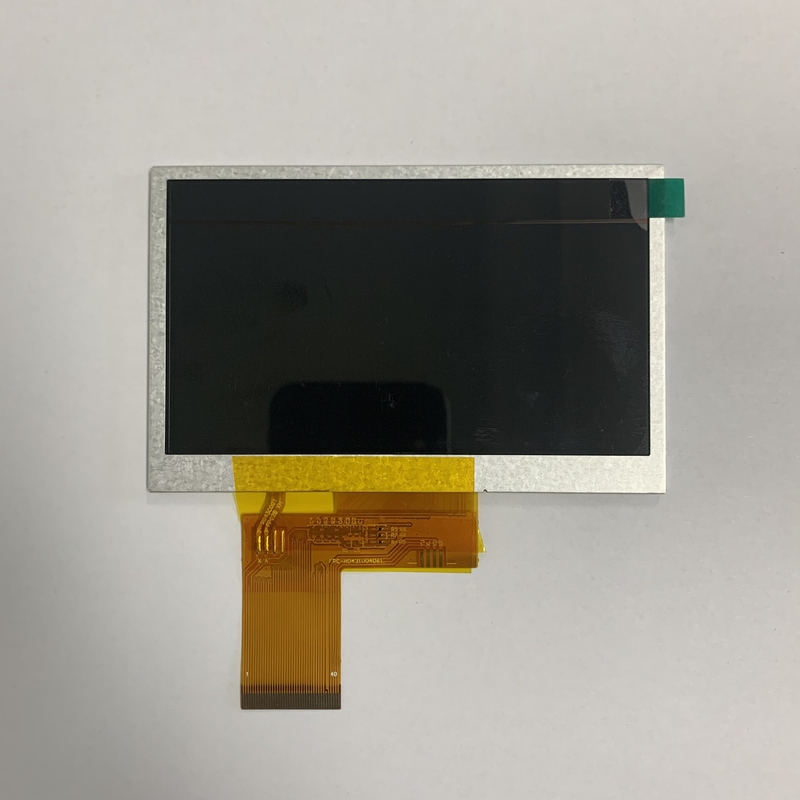

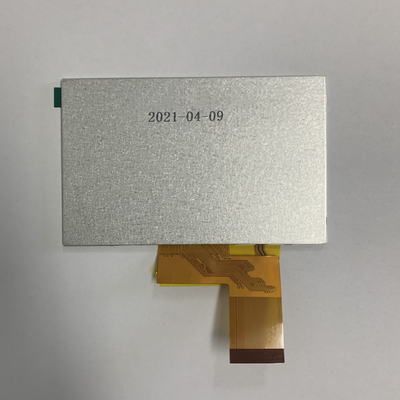

4.3 Inch TFT Display Module 480×272 Alternative FPC Transmissive
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS, ISO |
| Model Number: | RYTF043HV175A0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| Display Type LED: | TFT | Resolution: | 480X3(RGB)X272 |
|---|---|---|---|
| Module Size(mm): | 105.5 X 67.2 X 4.05 | Active Area(mm): | 95.04 X 53.856 |
| Display Mode: | Normally White, Transmissive | Interface: | 40 Pin FPC, Parallel 24bit RGB |
| Highlight: | 4.3 Inch TFT Display Module,480×272 TFT Display Module,FPC Transmissive Lcd Screen Module |
||
Product Description
Alternative AT043TN25 V.2 4.3 inch Resolution 480 * 272 High Luminance TFT Display Module
PRODUCT DESCRIPITION
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC and backlight unit.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* It's Standard and Ready-made TFT LCD Module.
* Experienced Team for Your Custom Solution.
* RoHS compliant.
| Model NO.: | RYTF043HV175A0 |
| Screen Size: | 4.3" |
| Display type: | TN |
| Resolution: | 480*272 |
| Viewing direction: | 12 o'clock |
| Module size(W*H*T): | 105.5*67.2*3.0mm |
| Active area (W*H): | 95.04*53.86mm |
| Brightness: | 800cd/m² |
| Backlight: | 10S1P=10 WLED If=20mA, Vf =32.0V |
| Controller: | HX8257A01-C or equivalent |
| Contrast: | 500 |
| Interface: | RGB |
| Pin NO: | 40Pin |
| Pin pitch | 0.5mm |
| Connecting type | FPC Connector |
| Operating Temperature: | -20 ~ +70ºC |
| Storage Temperature | -30 ~ +80ºC |
OUR ADVANTAGE
| Rich experience | Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client |
| Advanced Equipment | Full automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine advance production equipment ensure product quality |
| Quality Assurance | Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment |
| Fast response | Quickly realize your customized ideas, and have a sample ready in short time |
| Low MOQ | Depends on product |
| Stable supply | 1~10 years supply period |
| Extensive range | Providing complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen |
| Large production capacity | Operation capacity 2KK monthly |
| Quality guarantee | RoHS compliant |
| Management | ISO 9001:2008, ISO 14001:2004 |
PACKING & SHIPPING & DELIVERY
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
