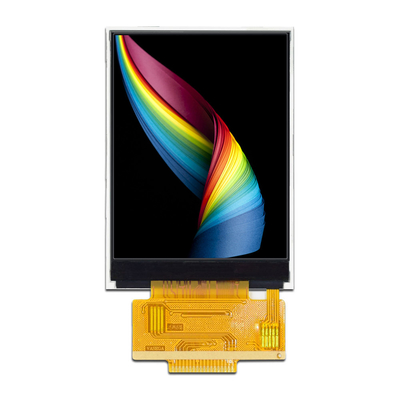

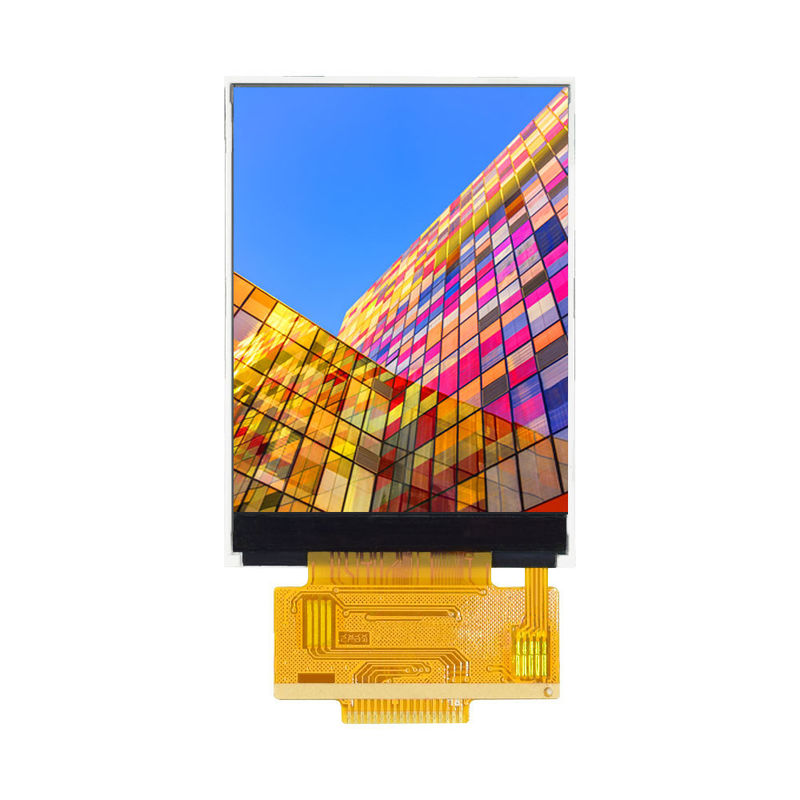

2.4 Inch Touch Screen TFT Display Resolution QVGA 240x320 With SPI Interface

2.4 Inch Touch Screen TFT Display Resolution QVGA 240x320 With SPI Interface
2.4 Inch Touch Screen TFT Display Resolution QVGA 240x320 With SPI Interface

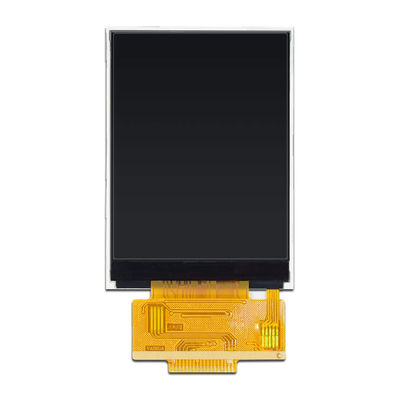

Large Image :  2.4 Inch Touch Screen TFT Display Resolution QVGA 240x320 With SPI Interface

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS, ROHS
Model Number: RYTQ24SN11-07
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 15~25 working days
Payment Terms: L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability: 10k/Month
Detailed Product Description
Display Type: TFT LCD Resolution: 320 X 3(RGB) X 240
Display Mode: Normally White/Transmissive Viewing Angle: 12 O'clock
Interface: SPI Outline Size (mm): 42.72(W) X 60.26 (H) X2.5(D)
Active Area(mm): 36.72(H) X49.96 (V) Display Color: 262K
Driver IC: ILI9341V Application: Industrial Application,Multi-Touch Query Machine,Desktop Monitor
High Light:

2.4in Touch Screen TFT Display

,

SPI Touch Screen TFT Display

,

Contaminant Proof TFT LCD Screen

2.4 Inch Touch Screen TFT Display Resolution QVGA 240x320 With SPI Interface

4-Wire resistive touch panel overview:

  • 4-Wire Resistive touch screen is an outstanding high quality product, suitable for low cost solution.
  • It is inherently of many advantages such as high accuracy, quick response, drift-free, stable and long durability for a life time of 1,000,000 times finger touches.
  • 4 wire Resistive touchscreen featured contamination-resistant and waterproof, is designed for the harshest environment such as dust is prevalent or liquid spills, splashes and wash down.
  • It can be touched by finger, gloved finger, leather or stylus pen.

Benefit:

Low cost

Finger, gloved hand and stylus activation

High accuracy and sensitivity

High durability and reliability

Contaminant proof and liquid resistance



Product Specification:

* It is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC and backlight unit.

* Backlight with different brightness is customized according to your request.

* Capacitive & Resistive touch panel/ Demo board is available for your option.

* It's Standard and Ready-made TFT LCD Module.

* Experienced Team for Your Custom Solution.

* RoHS compliant.

Model NO.: RB024D18T01A1
Screen Size: 2.4"
Display type TN
Resolution: 240*320
Viewing direction: 12 o'clock
Module size(W*H*T): 42.72*60.26*3.5mm
Active area (W*H): 36.72*48.96mm
Controller: ILI9341V
Brightness: 300cd/m²
Backlight: 1S4P=4 WLED If=80mA, Vf =3.2V
Contrast 350
Interface: SPI
Pin NO: 18Pins
Pin pitch 0.8mm
Connecting type FPC Soldering type
Operating Temperature -20 ~ +70ºC
Storage Temperature -30 ~ +80ºC

Please note TFT series: this is just a separate TFT LCD screen, excluding TP touch screen and CTP components, if you need to TP touch screen and CTP components, please contact customer service separately to modify the price
2.4 Inch Touch Screen TFT Display Resolution QVGA 240x320 With SPI Interface 0



ABOUT TFT LCD DISPLAY


Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.

Features

Customizable FPC cables, LED backlights, and bezels
Capacitive and Resistive options available for every display
Most products are kept in stock and can ship same day
Multiple interfaces available

Broad selection of off the shelf products
Sunlight readable options available

2.4 Inch Touch Screen TFT Display Resolution QVGA 240x320 With SPI Interface 1


PACKING & SHIPPING & DELIVERY

Packaging Details:

All the products are packed in right way to keep it safe.

For small sizes of products we use tray + carton,

For bigger sizes we use foam slot + carton.

we also design packages according to customers' requirements

Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

For large quantity orders: we ship by buyer's cargo agent in China,

we can also ship by air or sea transportation by our cargo agent.

Delivery Details:

Ready-made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks
