IPS RGB TFT LCD Display Innolux At050tn33 V. 1 5′′ 480×272 300cd/m2
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | RoHS |
| Model Number: | RYT050TFT-H40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 64pcs/carton |
| Delivery Time: | 7~10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300,000 Piece/Pieces per Year |
|
Detail Information |
|||
| Type: | TFT | Display Type: | TFT LCD |
|---|---|---|---|
| Screen Size: | 5'' | Resolution: | 480X3(RGB)X272 |
| Outline (mm): | 120.7(W)X75.80(H)X3.10(D) | Active Area(mm): | 110.88(W)X62.83(H) |
| Interface: | 40pin IPS RGB | Warranty: | One Year |
| Highlight: | IPS RGB TFT LCD Display,480×272 TFT LCD Display,300cd/m2 Industrial TFT Module |
||
Product Description

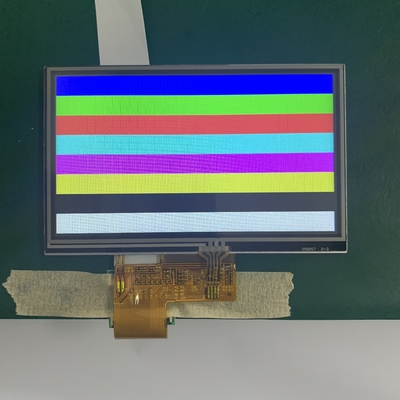

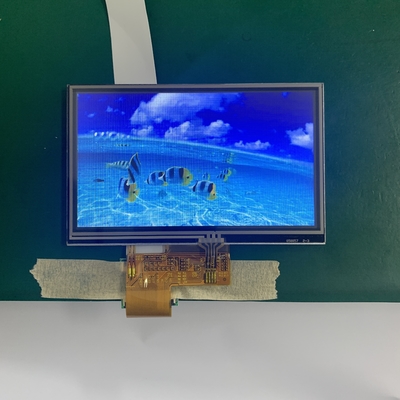

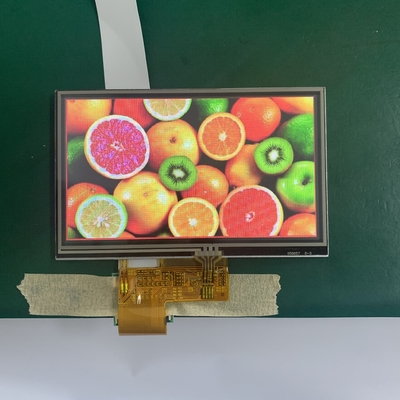

100% Replace Innolux At050tn33 V. 1 5′′ 480*272 TFT LCD Display
4-Wire resistive touch panel overview:
- 4-Wire Resistive touch screen is an outstanding high quality product, suitable for low cost solution.
- It is inherently of many advantages such as high accuracy, quick response, drift-free, stable and long durability for a life time of 1,000,000 times finger touches.
- 4 wire Resistive touchscreen featured contamination-resistant and waterproof, is designed for the harshest environment such as dust is prevalent or liquid spills, splashes and wash down.
- It can be touched by finger, gloved finger, leather or stylus pen.
SHORT NOTE OF INNOLUX LCD AT050TN33 V.1:
It is a 5 inch Touch Screen LCD Display with resolution 480*272 and Resistive Touch Panel.
It supports RGB interface including typical brightness 500 cd/m2.
This TFT LCD module can be operating at temperatures from -20ºC to +70ºC.
Its storage temperatures range from -30ºC to +80ºC.
| Model NO.: | RYT050TFT-H40 |
| Screen Size: | 5.0" |
| Display type | TN |
| Resolution: | 480*272 |
| Viewing direction: | 12:00 Clock |
| Module size(W*H*T): | 120.7*75.8*4.2mm |
| Active area (W*H): | 110.88*62.83mm |
| Brightness: | 300cd/m² |
| Backlight: |
2S6P=12 WLED, If=400mA, Vf=19.2V |
| Contrast | 500 |
| Interface: | RGB |
| Pin NO: | 40Pins |
| Pin pitch | 0.5mm |
| Connecting type | FPC Connector |
| Operating Temperature: | -20 ~ +70ºC |
| Storage Temperature | -30 ~ +80ºC |
PRODUCT APPLICATION
| Telecommunication Devices | Telephone, Interphone, Smart Watch, Tablet PC, PDA |
| Consumer Products | Camera, DVD Player, Cell Phone, Game Player, Digital Photo Frame, E-Book Reader, Mp3 Player, MP4 PMP, Netbook PC |
| Technical Equipment | Elevator Controller, Industrial Machine, Security Monitor, POS |
| Office Automation | Printer, Scanner, Fax Machine, Desktop Monitor, Desktop Monitor |
| Home Appliances | Air-condition Display, Refrigerator, Video Doorbell, Smart Machine |
| Automobile Display | GPS, Protable Navigation, Video Player, Speedometer, Recorder |
| IT Products | Digital Video, Media Player, Advertising Machine |
| Medical Equipment | Ultrasound Machine, Medial Monitor, Medical Imaging, Healthcare |
PACKING & SHIPPING & DELIVERY
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
