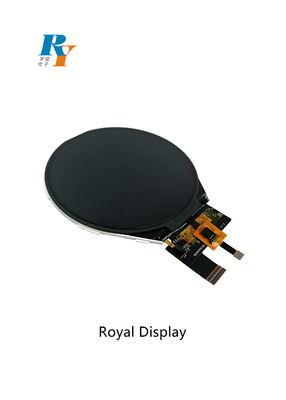

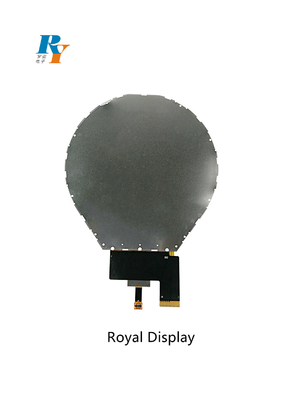

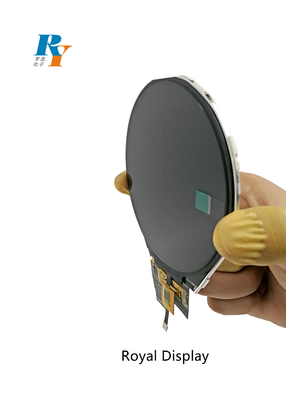

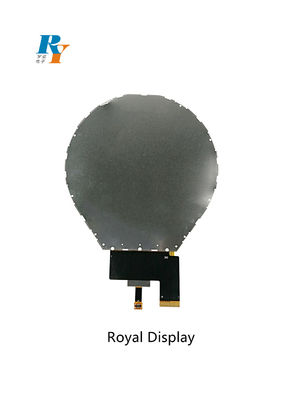

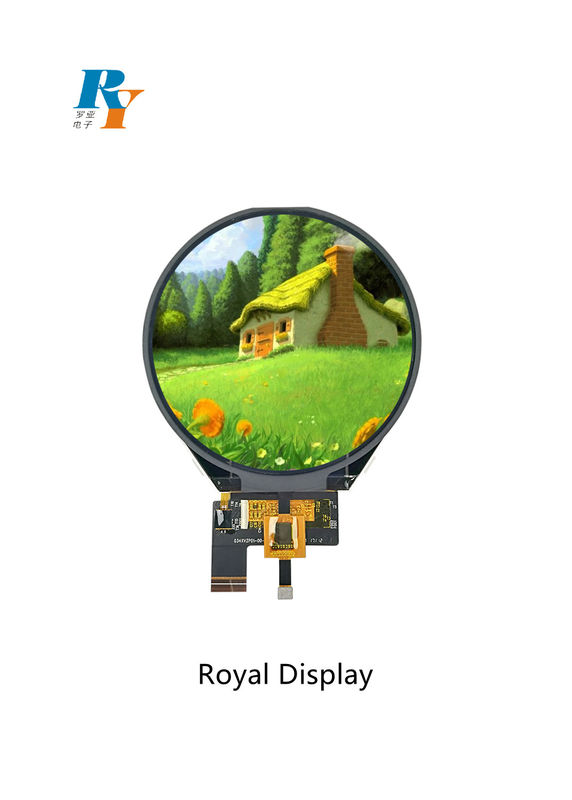

3.4in Round Tft Lcd Display 800×800 Dots ILI9881C IIC CTP With MIPI IPS
Product Details:
| Place of Origin: | China |
| Brand Name: | Roya Display |
| Certification: | Rohs,ISO9001 |
| Model Number: | RYT0340CFW01-01W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 Work Days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| Type: | TFT | Resolution: | 800X800 |
|---|---|---|---|
| Outline Size(mm): | 99.0(W)X96.6(H)X3.98(D) | Module Size(mm): | 105.5 X 67.07X 3.0 |
| Interface Type: | MIPI 3 Lane | Driver IC: | ILI9881C |
| Brightness: | 350cd/m2 | Backlight: | White LED |
| Highlight: | 3.4in Round Tft Lcd Display,MIPI IPS Tft Lcd Display,IIC CTP TFT LCD Screen |
||
Product Description
3.4inch Round 800*800dots Tft Lcd Display ILI9881C With MIPI Interface IPS
Product Description
| Display Type: | 3.4inch 800x800 dots ILI9881C driver IC round type IPS tft screen module |
| Resolution: | 800*800 |
| Driver IC: | ILI9881C |
| Outline Dimensions: | 99.0 x 96.6 x 3.98mm |
| Luminous Intensity for LCM | 350Cd/m2 |
| Interface Type: | MIPI |
| Backlight: | White LED |
| Operating voltage: | 3.3V |
| Viewing Angle: | All Viewing angle |
| CTP interface: | IIC |
| CTP IC: | HX8526-E30 |
Application
FAQ
Q: Can you customize the product? what do you need?
A: The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
