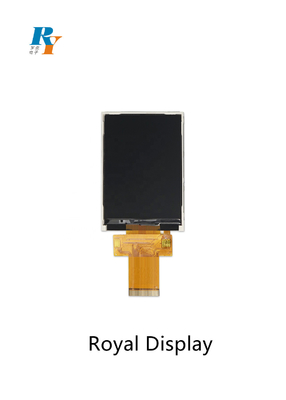

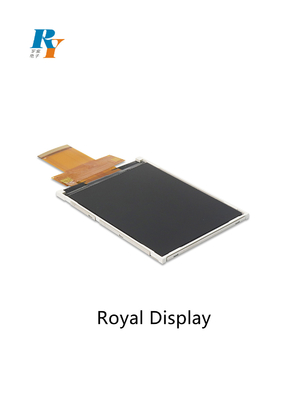

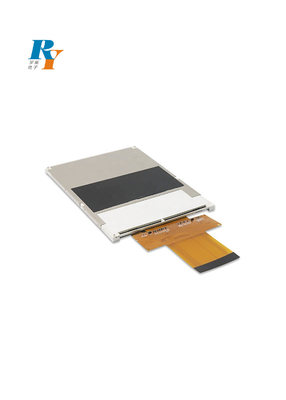

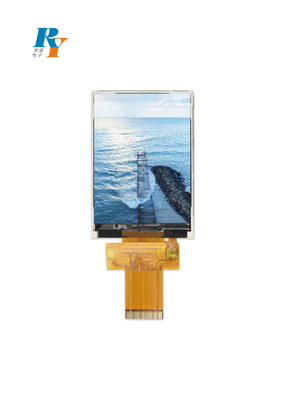

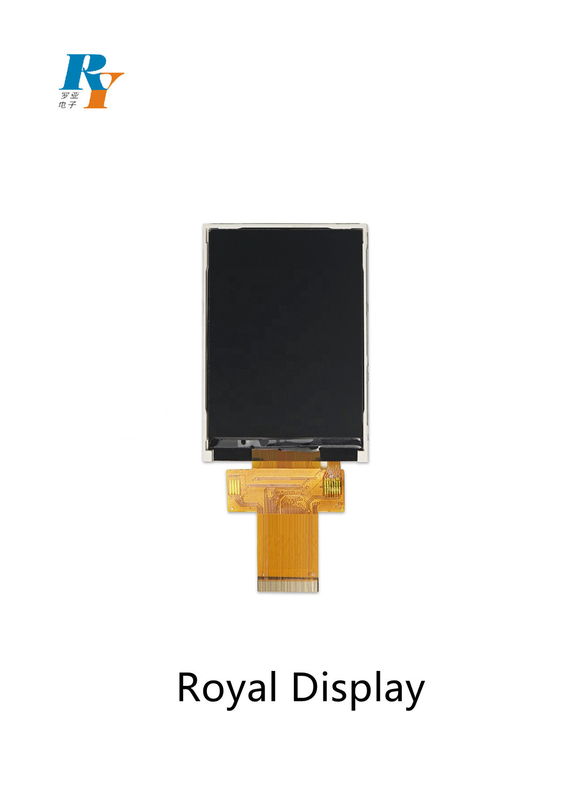

240×320 Dots TFT LCD Display Stn Monochrome With Ili9341 COG IC
Product Details:
| Place of Origin: | China |
| Brand Name: | Roya Display |
| Certification: | Rohs,ISO9001 |
| Model Number: | RYTQ32NN01-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 Work Days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| LCD Size: | 3.2'' TFT | Display Type: | 262K TFT |
|---|---|---|---|
| Viewing Direction: | 12 O'clock | Outline Dimension: | 56.64X79.3X2.45mm |
| Viewing Area: | 48.6X64.8mm | Driver IC: | Ili9341 |
| Operation Voltage: | 2.80-3.30V | Interface: | 8080 16-Bit |
| Highlight: | 240×320 Dots TFT LCD Display,COG IC TFT LCD Display,Stn Monochrome Lcd Monitor Module |
||
Product Description
3.2inch TFT 240*320dots 262K LCD Display 40pin with Ili9341 COG IC
Product Description
| Item | Description |
| Product Name | 3.2'' TFT 240*320 dots lcd display |
| LCD Type | TFT |
| Model No. | RYTQ32NN01-01 |
| Outline Dimension (mm) | 56.64X79.3X2.45mm |
| Viewing Area (mm) | 48.6X64.8mm |
| Viewing Direction | 12 O' clock |
| Driver IC | ILI9341 |
| Operation Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
FAQ
Q: Can you customize the product? what do you need?
A: The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
