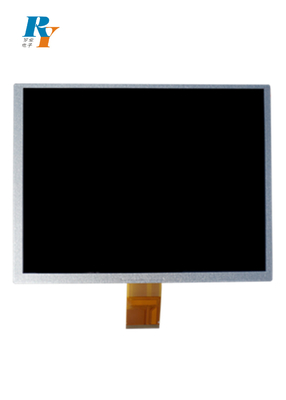

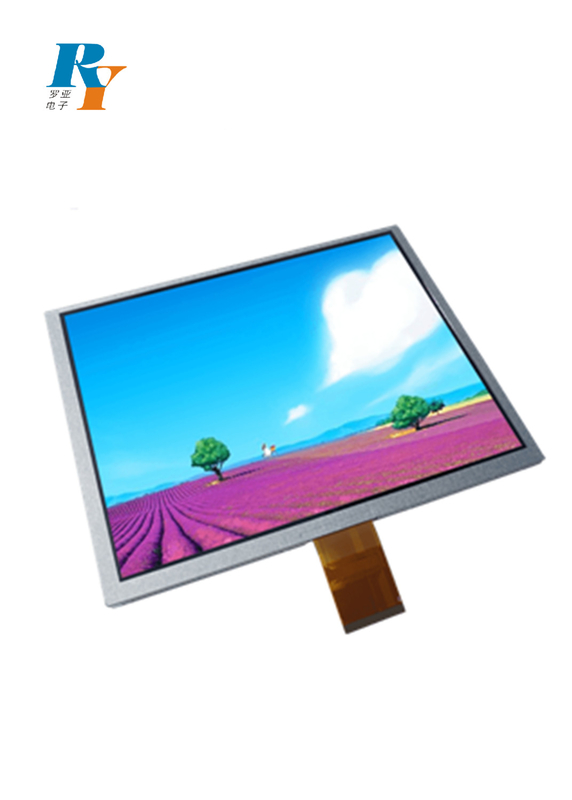

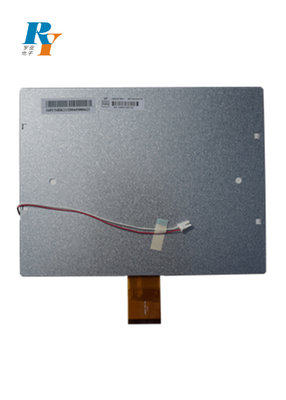

10.4 Inch 800X600 TFT LCD Display 3 RGB PCAP Lsa40at9001 Innolux

10.4 Inch 800X600 TFT LCD Display 3 RGB PCAP Lsa40at9001 Innolux
10.4 Inch 800X600 TFT LCD Display 3 RGB PCAP Lsa40at9001 Innolux 10.4 Inch 800X600 TFT LCD Display 3 RGB PCAP Lsa40at9001 Innolux 10.4 Inch 800X600 TFT LCD Display 3 RGB PCAP Lsa40at9001 Innolux

Large Image :  10.4 Inch 800X600 TFT LCD Display 3 RGB PCAP Lsa40at9001 Innolux

Product Details:
Place of Origin: China
Brand Name: Royal Diaplay
Certification: Rohs,ISO9001
Model Number: Lsa40at9001
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Standard packaging
Delivery Time: 20-28 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 300k/Month
Contact Now
Detailed Product Description
LCD Type: 10.4'' TFT Display Mode: Transmissive
Aspect Ratio: 4:3 Contrast Ratio: 500:1
Resolution: 800*3(RGB)*600 Active Area(mm): 211.2(W)X158.4(H)
Luminance (Nits): 250nits Interface: 60pin FPC(1*60pin), Parallel 18bit RGB
Highlight:

800X600 TFT LCD Display

,

10.4 Inch TFT LCD Display

,

PCAP Touch Panel LCD Module

Lsa40at9001 Innolux 10.4 Inch 800X3 (RGB) X600 TFT LCD Display with Touch Panel

PRODUCT DESCRIPTION



Item Description
Product Name 10.4'' TFT 800*600 Dots LCD Display
LCD Type TFT
Model No. LSA40AT9001
Color Depth 16.2M
Dot Pitch(mm) 0.088(W) X 0.264(H)
Pixel Pitch (mm) 0.264 (W) x0.264 (H)
Operating Temp. -20º C~70ºC
Storage Temp. -30º C~80º C


10.4 Inch 800X600 TFT LCD Display 3 RGB PCAP Lsa40at9001 Innolux 0







APPLICATION

10.4 Inch 800X600 TFT LCD Display 3 RGB PCAP Lsa40at9001 Innolux 1

FAQ

1. Q: How can I get the samples?
A: Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect
2. Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
3. Q:Will you offer free sample?
A: Yes, we usually provide 1-3 pcs free samples, you just need to pay the tooling charge.

4. Q:How long of mass production ?
A: 25-30 working days. It depends on different order quantities and part number.
10.4 Inch 800X600 TFT LCD Display 3 RGB PCAP Lsa40at9001 Innolux 2
