320×320 Dots TFT LCD Display IPS Mipi Interface St7796s IC 1.54′′ With CTP

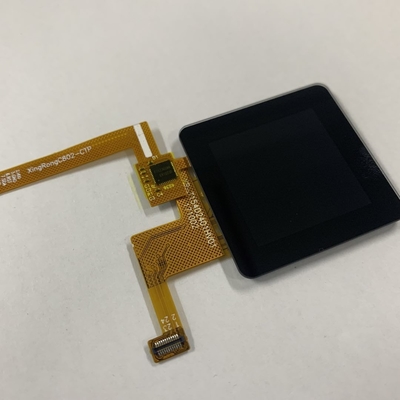

Large Image : 320×320 Dots TFT LCD Display IPS Mipi Interface St7796s IC 1.54′′ With CTP

Product Details:

Place of Origin:	China
Brand Name:	Royal Diaplay
Certification:	Rohs,ISO9001
Model Number:	RYT0154P005-D24 V1.0

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	20-28 work days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	300k/Month

Contact Now

Detailed Product Description

LCD Type:	1.54''tft	DOT Arrangement:	320(RGB) X320
Color Filter Array:	RGB	Display Mode:	IPS
Driver IC:	St7796s	Module Size(mm):	40.2(W)X40.5(H)X2.95(D)
Active Area(mm):	27.74(W)X27.74(H)	Interface:	Mipi
High Light:	320×320 Dots TFT LCD Display , IPS Mipi TFT LCD Display , CTP Tft Lcd Monitor

**1.54′′ TFT 320*320 Dots TFT LCD Display IPS Mipi Interface St7796s IC With CTP**

Quick Detail Of TFT LCD Module

Model:RYT0154P005-D24 V1.0
Resolution: 320x320
Panel Size:1.54 inch tft lcd panel
Interface Type:24 pins EDP

Panel Type:View All IPS

Item	Description
Product Name	1.54'' 320*320 Dots TFT With CTP
LCD Type	TFT
Model No.	RYT0154P005-D24 V1.0
Touch Area(mm)	28.12(W)X28.12(H)
CTP Driver IC	FT6236
CTP Surface Hardness	6H
Operating Temp.	-20º C~70ºC
Storage Temp.	-30º C~80º C

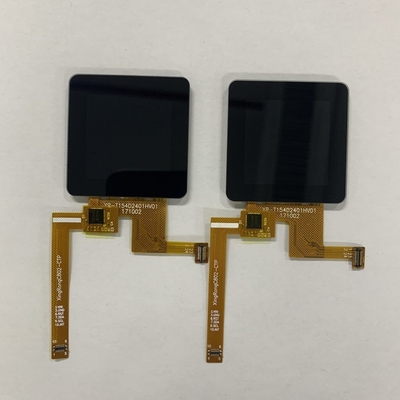

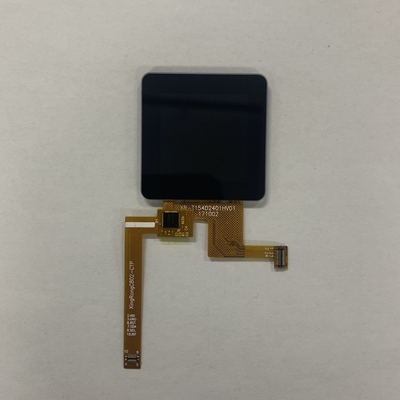

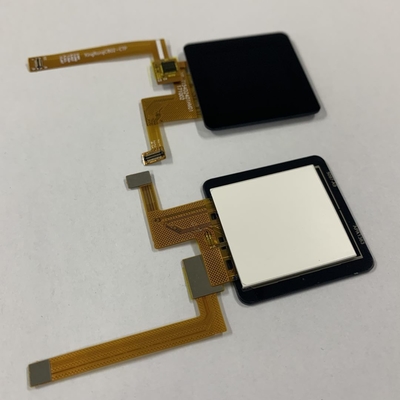

320×320 Dots TFT LCD Display IPS Mipi Interface St7796s IC 1.54′′ With CTP 0

Feature Of TFT LCD Module

High range of temperature;
Grade: 100% New ,Grade A+;
LVDS Interface and VGA interface
High-speed response
Low power consumption
Panel Type: TFT
Surface Treatment: Haze 25%, 3H
Accessories: LCD Inverter, LCD drive board, cables, key board, touch-screen,and LVDS cables etc…
Competitive prices, offer 1 year of warranty;
Original technology support.
CE,ROHS certification

Application

More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.

FAQ

1. Q: How can I get the samples?

A: Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect

2. Q: How long can I expect to get the sample?

A: Contour drawing: 2-3 days Sample time: 10-15 business days

3. Q: Will you offer free sample?

A: Yes, we usually provide 1-3 pcs free samples, you just need to pay the tooling charge.

4. Q: How long of mass production ?
A: 25-30 working days. It depends on different order quantities and part number.

Tag:

Contact Person: Suki Zhou

Tel: +86 1516824 6854

Fax: 86-0755-28325455-301
