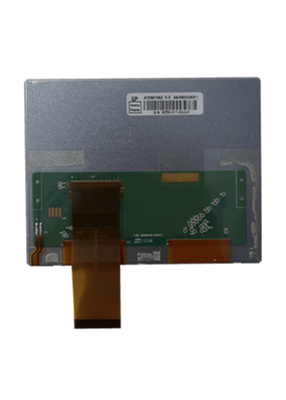

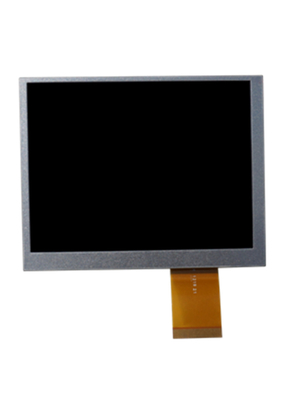

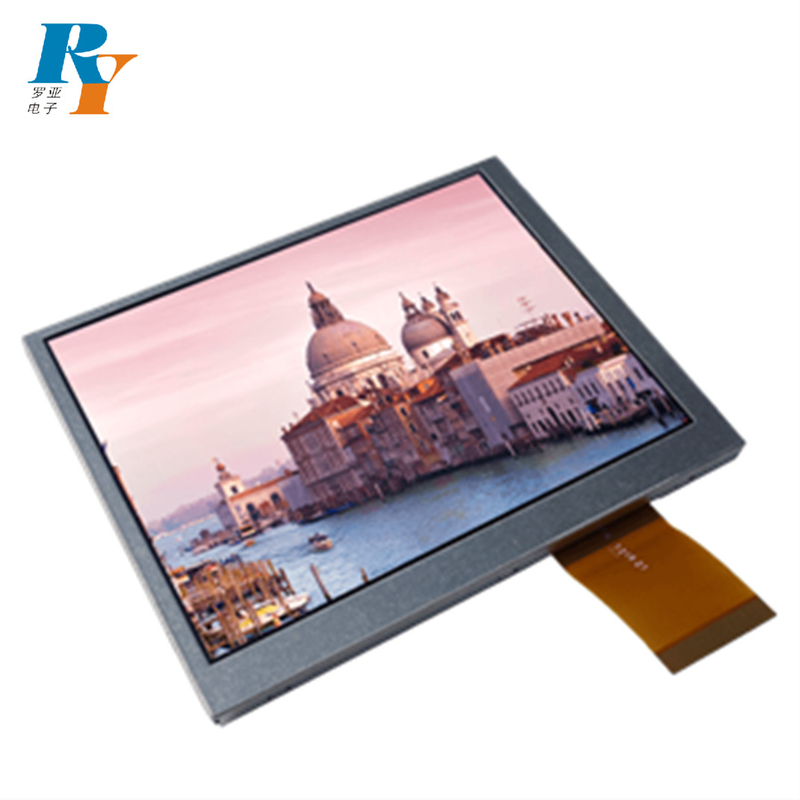

200nits TFT LCD Display Innolux 5.6 Inch 50 Pin 640X480 Anti Glare
Product Details:
| Place of Origin: | China |
| Brand Name: | Roya Display |
| Certification: | Rohs,ISO9001 |
| Model Number: | AT056TN52 V. 3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 Work Days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| Module Name: | AT056TN52 V.3 | Resolution: | 640*3(RGB)*480 |
|---|---|---|---|
| Aspect Ratio: | 4:3 | Touch Panel: | Optional |
| Brand: | CHIMEI-INNOLUX | Contrast Ratio: | 500 |
| Active Area(mm): | 112.896(W)X84.672(H) | Luminance (nits): | 200 |
| Highlight: | 200nits TFT LCD Display,Anti Glare TFT LCD Display,5.6 Inch Touch Panel Module |
||
Product Description
Innolux TFT 5.6 Inch 640X3 (RGB) X480 TFT LCD Display 50Pin With Touch Panel
Product Description
| Item | Description |
| Display Type | 6.5 Inch TFT LCD |
|
Display Mode
|
Transmissive
|
| Module Size(mm) | 126.5(W)X100.0(H)X5.7(D) |
| Dot Pitch(mm) | 0.0588(W) x 0.1764(H) |
|
Surface Treatment
|
Anti-Glare
|
| Operation Temp | -20º C~70º C |
|
Storage Temp |
-30º C~80º C |
Our Advantages
1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Payment Terms: T/T, Western Union,L/C, PayPal
4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Service: Best after-sales service to ensure satisfaction from customers.
6. Warranty: Usually, product warranty for one year.
FAQ
Q: Can you customize the product? what do you need?
A: The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
