Product Details:
Payment & Shipping Terms:
|
| LCD Size: | 7.0 Inch | Driver Element: | TFT Active Matrix |
|---|---|---|---|
| Pixel Number: | 1024X600 | Display Colors: | 16.7M |
| Pixel Arrangement: | RGB Vertical Stripe | Pixel Pitch: | 0.1506(H)x0.1432(V) |
| Viewing Angle: | ALL | Controller IC: | EK73217A+EK79007AD2 |
| Interface: | 4-lane MIPI | ||
| High Light: | 1024×600 Dots TFT LCD Module,Active Matrix TFT LCD Module,4 Lane MIPI TFT LCD Display |
||

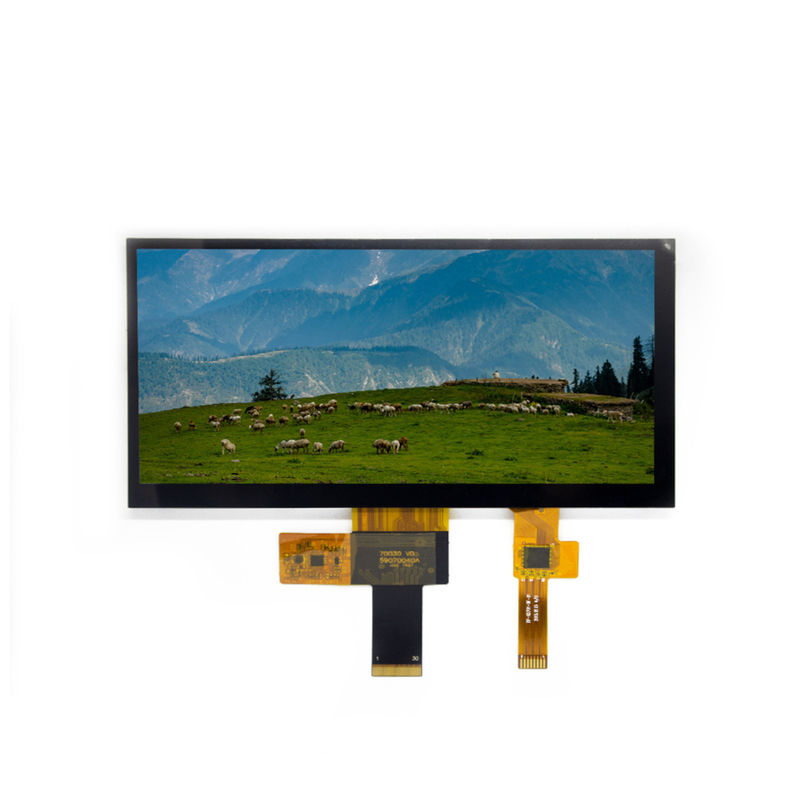

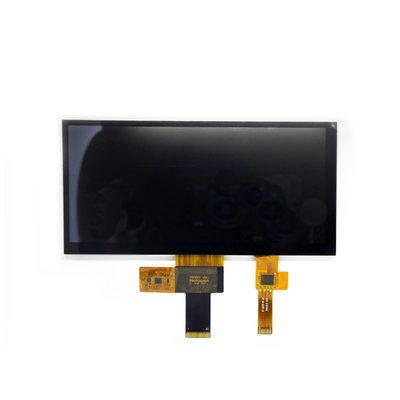

TFT LCD Module 7.0 Inch 1024*600dots LCD Display 16.7M With Touch Panel
Product Description
Thin Film Transistor (TFT) display technology can be seen in products such as laptop computers, cell phones, tablets, digital cameras, and many other products that require color. TFT’s are active matrix displays which offers exceptional viewing experiences especially when compared to other passive matrix technologies. The clarity on TFT displays is outstanding; and they possess a longer half-life than some types of OLEDs and range in sizes from less than an inch to over 15 inches.
| Item | Description |
| Display Type | 7.0 Inch TFT LCD |
|
Transmissive Mode
|
Normally black
|
| Module Size(mm) | 165.0(W)*100.0(H)*7.3(D) |
| Active Area(mm) | 154.21(W)*85.92(H) |
| Operation Temp | -20º C~70º C |
|
Storage Temp |
-30º C~80º C |
Pin Assignment (7.0 TFT With Touch Panel)
Red, Green and Blue (RGB) backlights are built with either a single LED that produces red, green and blue colors or with three separate Red, Green or Blue LEDs.
RGB backlights require a controller to regulate the different intensities of each color. The controller’s function is to combine unique levels of Red, Green and Blue to produce any of 64M different colors.
Our Advantages
1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Payment Terms: T/T, Western Union,L/C, PayPal
4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Service: Best after-sales service to ensure satisfaction from customers.
6. Warranty: Usually, product warranty for one year.
FAQ
Q: Can you customize the product? what do you need?
A: The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
