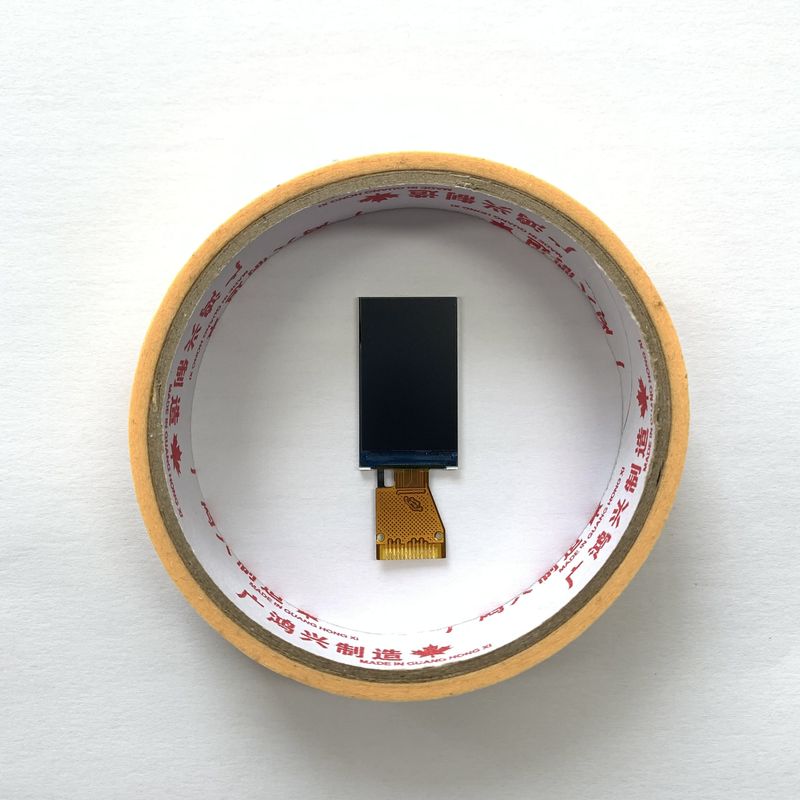

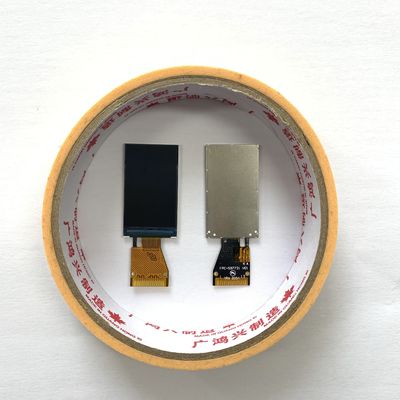

1.14inch 135x240dots TFT LCD SPI 4 wire ST7789V2 Driver IC TFT display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS, ROHS |
| Model Number: | RYT011H002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working days |
| Payment Terms: | L/C, D/A, D/P, Western Union, T/T, MoneyGram |
| Supply Ability: | 10k/Month |
|
Detail Information |
|||
| Display Type: | 1.14'' TFT LCD Display | Size: | 1.14inch |
|---|---|---|---|
| Resolution: | 135 X 3(RGB) X 240 | Interface: | SPI |
| Display Mode: | Normally White/Transmissive | Driver IC: | ST7789V2 |
| Viewing Angle: | Free | Outline Size (mm): | 17.6(W) X 31(H) X 1.60(D) |
| Active Area(mm): | 17.26(H) X30.1(V) | Warranty: | One Year |
| Highlight: | FSTN COB Graphic LCD Module,STN Character Graphic LCD Display,Stn Monochrome Character LCD Module |
||
Product Description
1.14inch 135x240dots TFT LCD SPI 4 wire ST7789V2 TFT display
1.14-inch TFT Display | RYT011H002
Module size: 17.6(W) X 31(H) X 1.60(D) 135x240 Dots
Driver: ST7789V2
SPI Interface, white LED, All viewing angle, Normally Black Transmissive, RoHS Compliant
| Item | Description |
| Product Name | 1.14'' 135*240 TFT LCD Module |
| Model No. | RYT011H002 |
| Dot Format | 135RGB(H)x240(V) |
| Outline (mm) | 17.6(W) X 31(H) X 1.60(D) |
| Active Area(mm) | 17.26(H) X30.1(V) |
| Display Mode | Normally white/Transmissive |
| Pixel Arrangement | SPI |
| Driver IC | ST7789V2 |
| Viewing Direction | Free |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
| Pin No. | 13pins |
APPLICATION
Our lcd module size are from 1.14 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Product | Application |
| Small-size tft lcd display (1.44inch~4.3inch) | Mobile device, watch, toy, medical equipment, office electronic equipment, camera, air-condition display, etc. |
| Mid-size tft lcd display (5.0inch~10.0inch) | Mobile device, medical equipment, car, automotive product, industrial control equipment, pos, pda, household video doorbell, air-condition display, etc. |
| Big-size tft lcd display (10inch and above) | Educational product, automotive product, video door phone, audiovisual equipment, dvd player, media play, tablet pc, security products, etc. |
| Tn/stn//fstn/oled | Elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | Industrial control equipment, electronic product, toy, security product, it digital product, sports equipment, etc. |
