2.97′′ 640*360 IPS TFT LCD Display with Touch Panel 3'' TFT Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS, ROHS |
| Model Number: | RYT030QA046T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working days |
| Payment Terms: | L/C, D/A, D/P, Western Union, T/T, MoneyGram |
| Supply Ability: | 10k/Month |
|
Detail Information |
|||
| Display Type: | TFT LCD | Size: | 2.97inch |
|---|---|---|---|
| Resolution: | 360 X 3(RGB) X 640 | Interface: | RGB Or MIPI |
| Display Mode: | Normally White/Transmissive | Driver IC: | ST7701S |
| Viewing Angle: | Free | Outline Size (mm): | 43.44(W) X 75.31 (H) X 3.85(D) |
| Active Area(mm): | 38.44(H) X 66.9 (V) | Warranty: | One Year |
| Highlight: | COB Positive LCD Module FSTN,STN YG Character Lcd Display,Stn Monochrome Character LCD Display |
||
Product Description

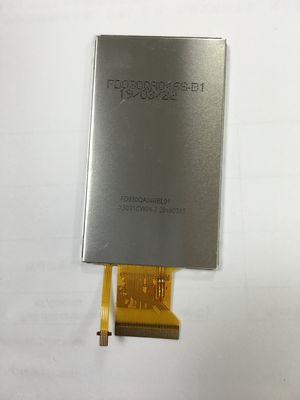

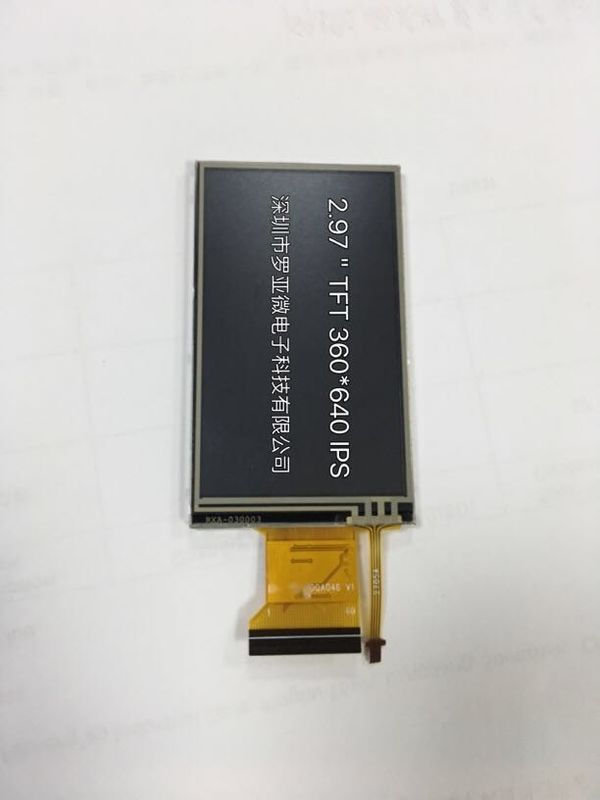

2.97′′ 640*360 IPS TFT LCD Display with Touch Panel 3'' TFT Screen
2.97-inch TFT Display | RYT030QA046T
Module size: 43.44(W) x 75.31 (H) x 3.85(D)
360 x RGB x 640 Dots
Driver: ST7701S
RGB or MIPI Interface, 4chips white LED, All viewing angle, Normally Black Transmissive, RoHS Compliant
| Item | Description |
| Product Name | 2.97'' 640*360 TFT LCD Module |
| Model No. | RYT030QA046T |
| Dot Format | 360RGB(H)x640(V) |
| Outline (mm) | 43.44(W) x 75.31 (H) x 3.85(D) |
| Active Area(mm) | 38.44(H) x 66.9 (V) |
| Display Mode | Normally white/Transmissive |
| Interface | RGB/MIPI |
| Driver IC | ST7701S |
| Viewing Direction | Free |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
QUESTION YOU MAY ASK
Q1. Which sizes of LCDs and Touch Panels do you provide?
A:
--Small sizes which include: 0.96", 1.22", 1.3", 1.44", 1.54", 1.77", 2.0", 2.4", 2.7", 2.8", 3.0", 3.2", 3.5", 3.95", 3.97", 4.3", 5", 5.6", 6.86".
--Middle sizes which include: 7", 8", 9", 10.1", 10.2", 13.3",14.1",15.6",17",21.5",23''
Q2. Can I have a sample order of before formal order?
A: Yes, sample order is always welcome for new projects or replacement of running projects. We have stock of many standard models of TFT LCD modules and Touch screens from 0.96inch to 13.3inch , which means delivery is able to be made the same day as order.
Q3. What is the lead time for Sample order and Mass Production order?
A:
--For LCD Display standard products, the lead time for samples is usually 1-7 days, for mass production it could be as fast as 10 days.
--For Customized products,
We are able to get new FPC ready in 7days, new Backlight in 15days, and new Capacitive touch panel or Resistive touch panel in 18days.
Mass production of special products could be as fast as 3weeks.
--In summary, based on our years of big output, we have been keeping good relationship with LCD panel, IC and other material suppliers, we had a steady supply even when there was heavy shortage of materials.
